ExpressLRS ELRS

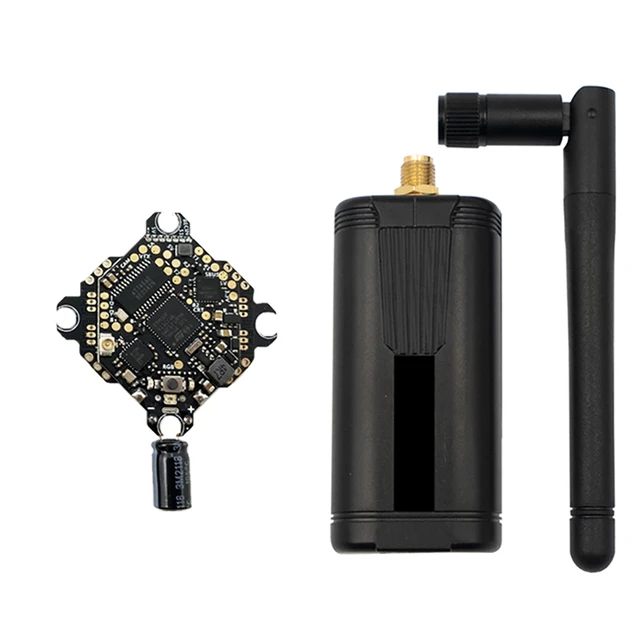

DarwinFPV AIO F4 Bluejay ExpressLRS ELRS 2.4G 1-3S 15A 4in1 ESC
Remote Controllers → Long Range Systems LRS → ExpressLRS ELRS → Flight controllers with ExpressLRS ELRS receiver → DarwinFPV AIO F4 Bluejay ExpressLRS ELRS 2.4G 1-3S 15A 4in1 ESCRecommended stores↓ Another stores
ELRS F4 AIO 15A
FC MCU: STM32F411CEU6(100MHz)
IMU: ICM-20689(SPI)
OSD: Betaflight OSD AT7456E
RF: SX1280(2.4GHz)
BEC output: 5V/2A & 3.3V/0.2A
Firmware target: betaflight_4.3.0_BETAFPVF4SX1280
2x Uarts(1,2)
1x SBUS(RX1 inverter)
1x Softserial_TX option
1x External USB solder pad
1x CRT(Current)
1x BUZZ
1x RGB
ESC MCU: EFM8BB21F16G
Input Voltage: 1-3S LiPo
Continuous current: 15A
MAX current (5seconds): 17A
ESC Traget: Bluejay_S_H_50_48_v0.14
Size: 37x36x10.8mm
Installing Hole: 25.5x25.5mm(M2)
Weight: 5.0g

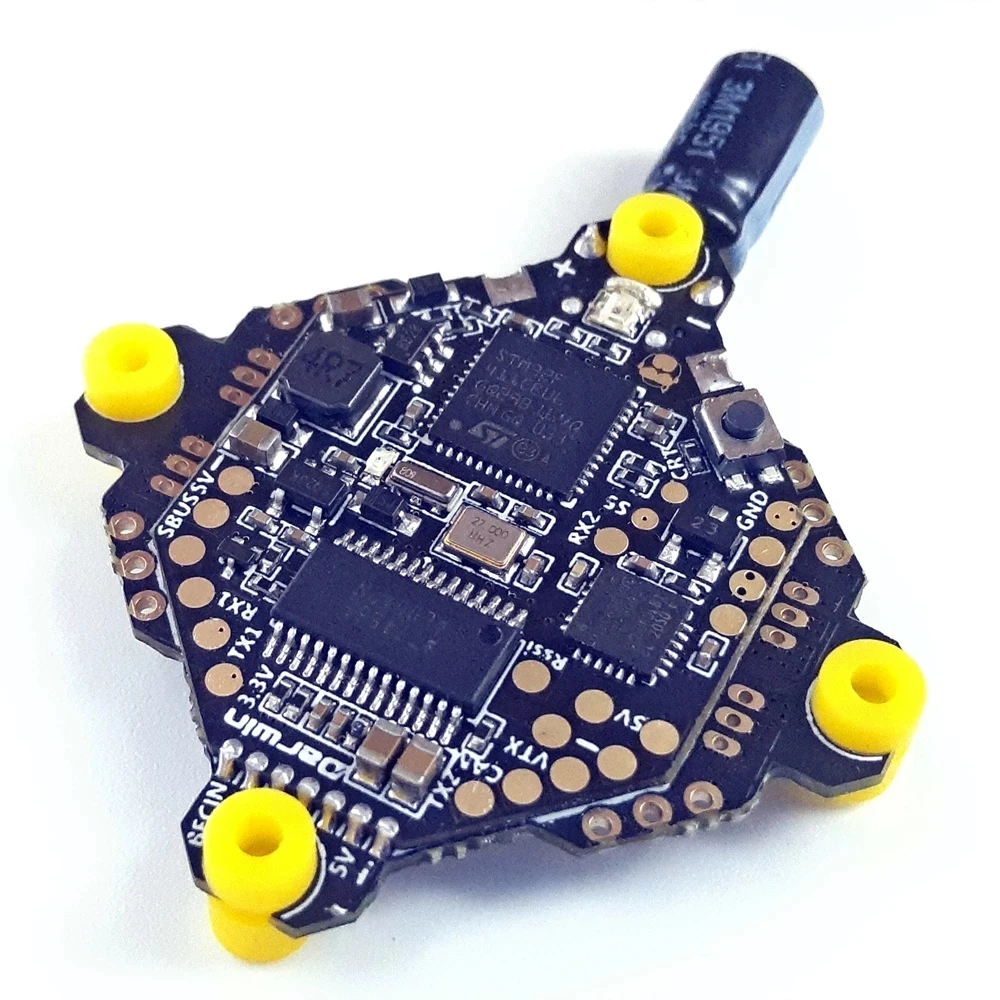

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.
Share
Prices for DarwinFPV AIO F4 Bluejay ExpressLRS ELRS 2.4G 1-3S 15A 4in1 ESC in stores
Deals found: 24 (AliExpress6, MakerFire1, Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | Stock level: 5 | $49 | 1 | $49 | ||
| MakerFire | In stock | $51 | 1 | $51 | ||
| AliExpress | High stock level | $52 | 1 | $52 | ||
| Banggood | Stock level: 2 | $54 | 1 | $54 | ||
| AliExpress | High stock level | $56 | 1 | $56 | ||
| AliExpress | High stock level | $56 | 1 | $56 | ||
| AliExpress | High stock level | $58 | 1 | $58 | ||
| AliExpress | Stock level: 10 | $56 | + $4.11 | 1 | $60 |
