iFlight SucceX F4 V2 + ESC 35A 6S + VTX 5.8 200mW

Multirotors → FPV Racing drones → Flight controllers → F4 FCs → FC F4 + ESC 4in1 + VTX Stacks → iFlight SucceX F4 V2 + ESC 35A 6S + VTX 5.8 200mW

iFlight SucceX F4 V2 Mini Flight Controller 35A Blheli_32 2-6S ESC 5.8G 25/100/200mW Smartaudio VTX

PRODUCT DESCRIPTION

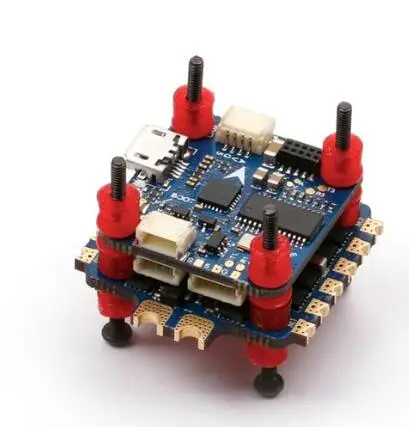

SucceX 2-6S Mini F4 V2.0 Tower is specially designed for Micro FPV racers, which includes advanced SucceX mini F4 V2.1 Flight Controller with SucceX 35A V2.0 4 in 1 ESC, that can handle up to 6s batteries and push your FPV racer to sky highly. Advanced switchable SucceX Mini V1.0 0/25/100/200mW VTX complies with all video signal to penetrate through trees and walls for high-quality video. The FC, ESC, and VTX neatly stack together with pinned interconnects that make your build easy to assemble and cleaner looking. This tightly pre-built stack will fit any frame that has 20 x 20mm mounting holes.

The SucceX Mini F4 V1.0 Tower is the fastest way go from starting a new micro build to FPV Flight!

The new released SucceX Mini F4 V2.1 flight control has been optimized overall. The main soldering port has been upgraded to terminal plugs, which is convenient for pilots to assemble and disassemble. The F405 MUC equipped with the MPU6000 gyroscope is optimized for better flight performance. Programmable RGB LED interface has been built-in for external LED to set LED color, function, and status. The built-in OSD chip helps to monitor the status of the flight data any time, IRC Tramp function is available with Succex Mini V1.0 VTX ;

The latest developed BLHeli-32-bit 35A Mini V2.0 4-in-1 ESC is highly integrated, greatly reduced from the standard size, features excellent performance, supports 6S, the target is iFlight-BL32-4IN1.Supporting Dshot, Multishot, Oneshot, etc. The soldering pad is semi-extended, save more room but solid.

Succex Mini V1.0 VTX is a new generation switchable 0/25/100/200mW video transmitter. It can be used for both race or daily practice. IRC Tramp function helps setting frequency point directly. The accurate power meets your different FPV requirements.

Features:

* STM32 F405 MCU FC w/OSD, integrated MPU6000 accelerometer and gyro;

* Plug-in connection, pin header design, easy to install and disassemble;

* Support current meter;

* BLHeli-32-bit 35A 4-IN 1 ESC

* Compact size 26*26*21mm

* Super-lightweight 16.4g (including screws,aluminum column & nuts)

* Switchable 0/25/100/200mW 48CH VTX

SucceX mini F4 V2.0 Flight Controller Specs:

- MCU: 100MHz STM32F450

- IMU: MPU6000 gyro/accelerometer (SPI)

- Integrated LC Filter
