iFlight SucceX F4 V2 + ESC 35A 6S

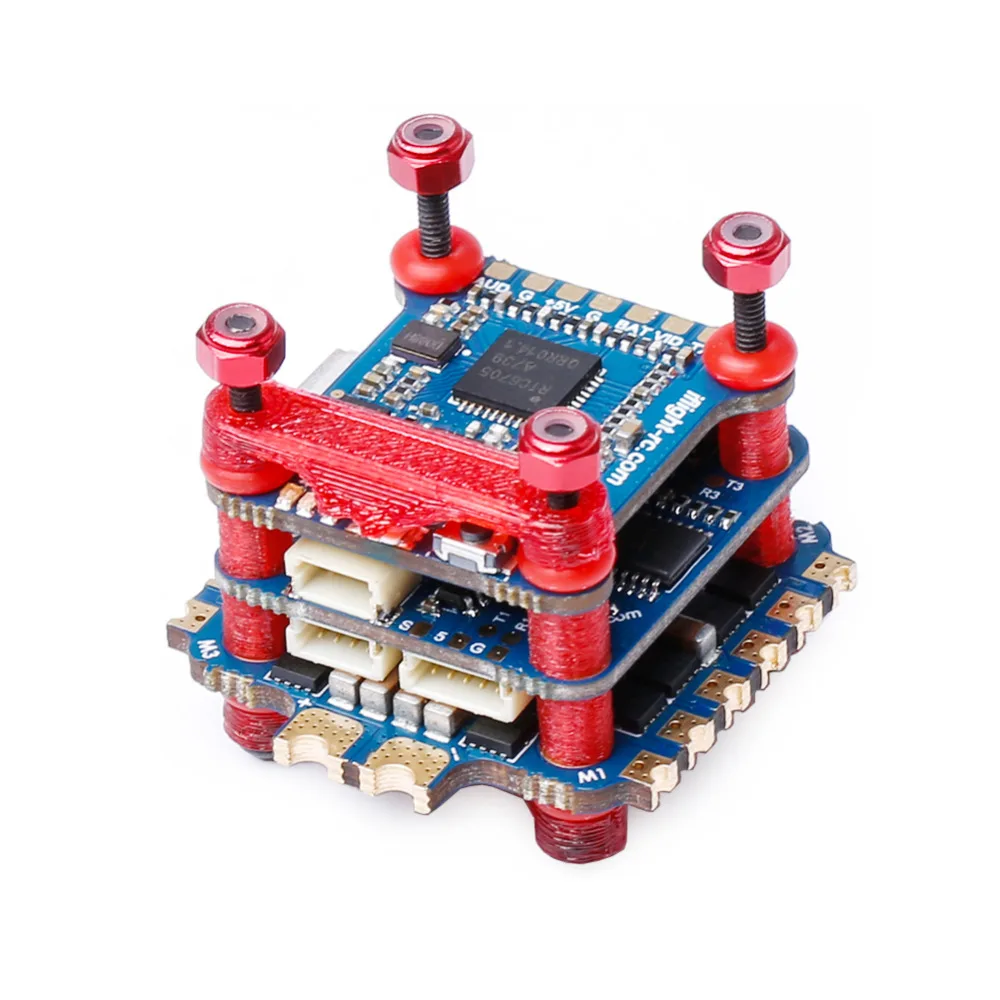

SucceX 2-6S Mini F4 V2.0 Tower is specially designed for Micro FPV racers, which includes advanced SucceX mini F4 V2.1 Flight Controller with SucceX 35A V2.0 4 in 1 ESC, that can handle up to 6s batteries and push your FPV racer to sky highly. Advanced switchable SucceX Mini V1.0 0/25/100/200mW VTX complies with all video signal to penetrate through trees and walls for high-quality video. The FC, ESC, and VTX neatly stack together with pinned interconnects that make your build easy to assemble and cleaner looking. This tightly pre-built stack will fit any frame that has 20 x 20mm mounting holes.

The SucceX Mini F4 V1.0 Tower is the fastest way go from starting a new micro build to FPV Flight!

The new released SucceX Mini F4 V2.1 flight control has been optimized overall. The main soldering port has been upgraded to terminal plugs, which is convenient for pilots to assemble and disassemble. The F405 MUC equipped with the MPU6000 gyroscope is optimized for better flight performance. Programmable RGB LED interface has been built-in for external LED to set LED color, function, and status. The built-in OSD chip helps to monitor the status of the flight data any time, IRC Tramp function is available with Succex Mini V1.0 VTX ;

The latest developed BLHeli-32-bit 35A Mini V2.0 4-in-1  ESC is highly integrated, greatly reduced from the standard size, features excellent performance, supports 6S, the target is iFlight-BL32-4IN1.Supporting Dshot, Multishot, Oneshot, etc. The soldering pad is semi-extended, save more room but solid.


Features:
* STM32 F405 MCU FC w/OSD, integrated MPU6000 accelerometer and gyro;
* Plug-in connection, pin header design, easy to install and disassemble;
* Support current meter;
* BLHeli-32-bit 35A 4-IN 1 ESC
* Compact size 26*26*21mm
* Super-lightweight 16.4g (including screws,aluminum column & nuts)

SucceX mini F4 Flight Controller Specs:

- MCU: 100MHz STM32F450
- IMU: MPU6000 gyro/accelerometer (SPI)
- Integrated LC Filter
- Input Voltage: 2-6S Lipo
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@3A
- Size: 26x26mm board, 20mm mounting holes (M2)
- VCP, UART
- WS2812 Led Strip: Yes
- Beeper: For active 5V buzzer
- SBUS input: Yes
- Target: OmnibusF4SD
Default firmware: Betaflight V3.5.3 ( V3.5.4 or higher version does not support current meter yet)

SucceX Mini 35A 2-6S 4 in 1 ESC Specs
- MCU:STM32F051
- Current Sensor: Yes
- Input:2-6s lipo
- Installing Hole: 20x20mm, M2
- Target:iFlight-BL32-4IN1
- Constant:35Amps
- Burst:45Amps
- Dimensions:31*31mm(including the power pads)
- Mounting Holes:20*20mm
- Supports Dshot1200,Proshot,Oneshot,Multishot

Package included (Pre-built as a stack):
1 x SucceX mini F4 V2.1 Flight Controller
1 x SucceX Mini 35A V2.0 2-6S 4 in 1 ES
1 x Cable Set
