Omnibus F4 V6
Multirotors → FPV Racing drones → Flight controllers → F4 FCs → Omnibus F4 V6

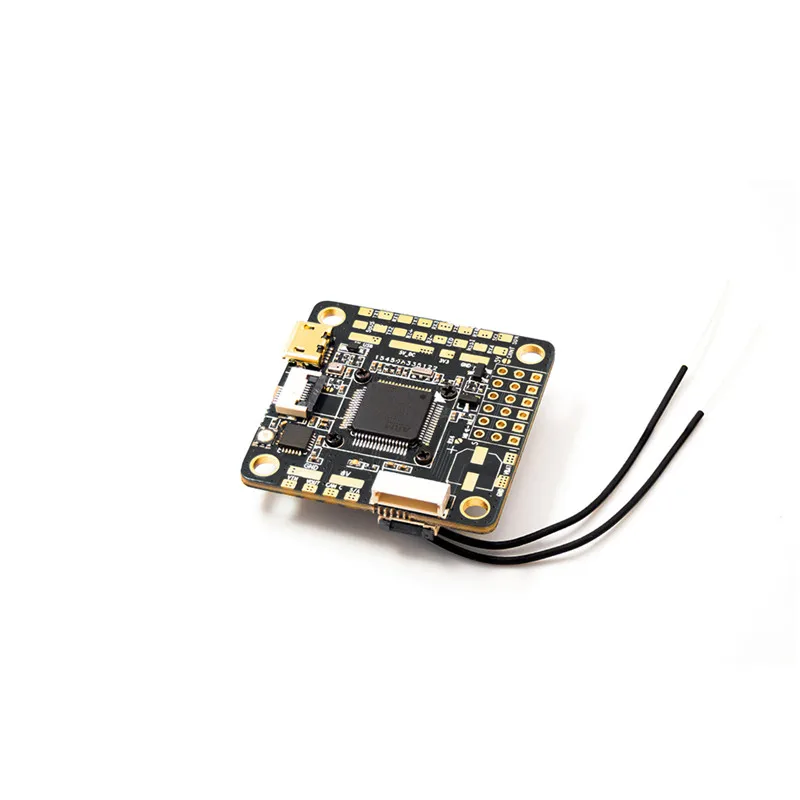

Original Airbot Omnibus AIO F4 V6 Flight Controller STM32 F405 5x UARTs 30.5x30.5mm for RC Drone
OMNIBUS F4's upgrade version, using F405 and new target, with 5x UARTs now.
classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer and SD Card supports.
OSD Configuration has been incl. in Betaflight GUI.
FC incl. 5V1A BEC on board(3-6s) and 1x 8V BEC for Camera
MPU6000 at SPI bus, Ext, SPI for damped gyro
Use fireworks v2 firmware, in CLI, set gyro_to_use = SECOND
New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.
On v5, we added jumpers for Current source select, please read the manual and set the jumper before using the FC.
Specificaiton:
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Only 36x36mm, mount holes 30.5x30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
Flash
Note: This does not include any cables or connectors. Please order separately.
Package Included:
1 x Flight Controller
Share
Prices for Omnibus F4 V6 in stores
Deals found: 19 (Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| Banggood | Out of stock | $45 | 1 | $45 |
