FPV Goggles
FatShark Dominator HDO2
FPV → FPV Goggles → Fatshark Goggles → FatShark Dominator HDO2Recommended stores↓ Another stores
Things just got personal.
The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.
Click here for the Ultimate FPV Bundle with the HDO 2 Goggles, Receiver module, AXII 2 antenna combo, and accessories.
Specifications
Optics
- FOV (field of view): 46 degrees diagonal
- IPD (interpupillary distance): 54 to 74 mm (adjustable)
- Focus: +2 to -6 diopters (adjustable)
Display
- Two Sony 0.5” OLED displays
- Resolution 1280 X 960
- NTCS/PAL auto selecting
- AV Mode 4:3
- AV Mode 16:9
- HDMI Mode 16:9
Audio
- Stereo
User Controls
- Channel Selection
- Volume Control
- Mode Selection
- Display Control (Brightness and Contrast)
- DVR Control
- Power Button / Fan Control
Electrical
- Power Supply:
- 7 – 13V input voltage (2S – 3S Supply)
- Power Consumption: 320mA @ 7.5V input power (no RX module)
- 770mA @ 7.5V input power (Rapid
- Analog DVR: MicroSD support to 32 GB
- Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
- File playback (native recording, no codec support)
- Upgradeable via SD card
Battery
- 7.4V, 1.8A 18650 Battery Case (optional))
Interface
- 3.5mm AV in/out port
- Power input port
- 3.5mm 3p earphone port
- MicroSD
- RF Module Bay
- HT connector 3 pin internal connection
- Power Button
Mechanical
- Ergonomic molded headset w/ adjustable headband
- Dimensions: 169.2 x 80 x 45.5 mm
- Weight: 206.8 g
Includes
- 1 x Fat Shark Dominator HDO 2 FPV Goggles
- Carrying Case
- 7.4V 1865 Battery Case
- Lens Cleaning Cloth
Warning: Exposing the lens to direct sunlight will result in LCD damage.
How to & Manuals
Share
Prices for FatShark Dominator HDO2 in stores
Deals found: 75 (AliExpress12, ReadyMadeRC1, RCPapa1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| RCPapa | Stock level: 12 | $400 | + $39 | 1 | $439 | |
| ReadyMadeRC | Out of stock | $499 | 1 | $499 | ||
| AliExpress | Stock level: 8 | $485 | + $24 | Discount at checkout | 1 | $509 |
| AliExpress | Out of stock | $560 | COUPON $150-$8 | 1 | $552 | |
| AliExpress | Stock level: 8 | $569 | 1 | $569 | ||
| AliExpress | High stock level | $560 | + $18 | 1 | $578 | |
| AliExpress | High stock level | $599 | 1 | $599 | ||
| AliExpress | Stock level: 12 | $590 | + $58 | 1 | $648 | |
| AliExpress | High stock level | $683 | 1 | $683 | ||
| AliExpress | High stock level | $797 | 1 | $797 | ||
| AliExpress | Stock level: 9 | $941 | + $24 | 1 | $965 | |
| AliExpress | Stock level: 9 | $1184 | 1 | $1184 | ||
| AliExpress | High stock level | $1252 | 1 | $1252 | ||
| AliExpress | High stock level | $1272 | + $9.98 | 1 | $1282 |
See also
FatShark Dominator HDO2 FPV Goggles + ImmersionRC rapidFIRE Module + Lumenier AXII 2 Diversity Antenna Bundle
$728

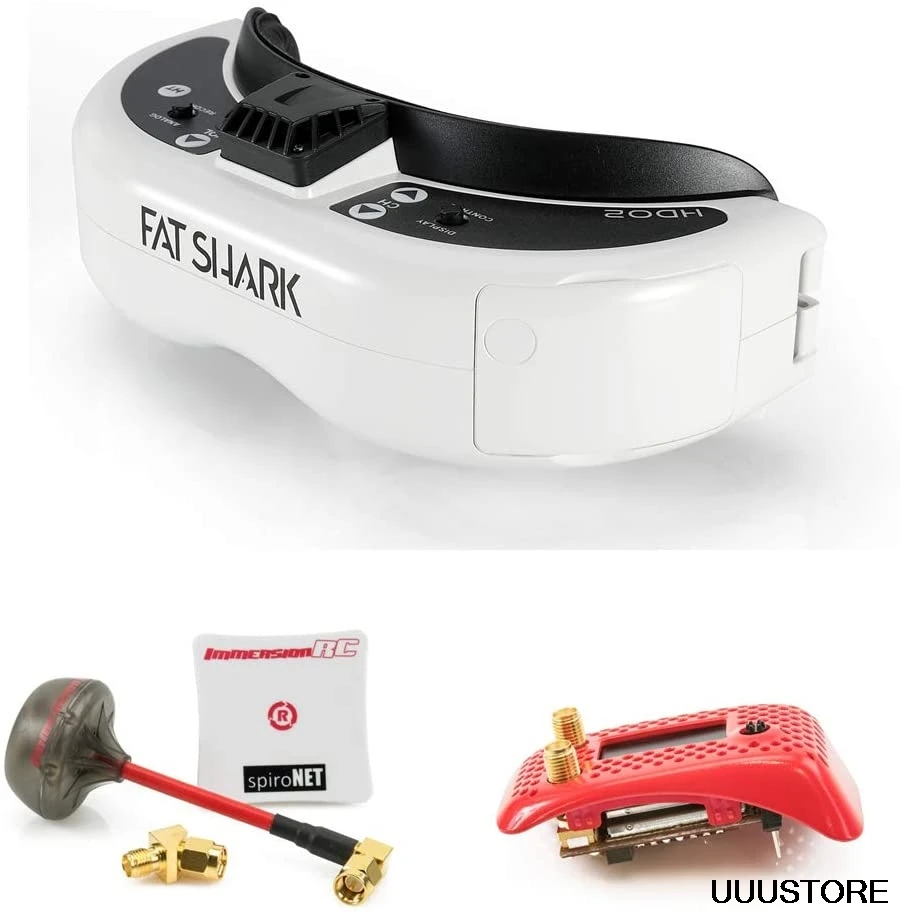

FatShark Dominator HDO2 FPV Goggles + ImmersionRC rapidFIRE Module + SpiroNET V2 Antennas
$838
FatShark Dominator HDO2 + Byte RX5.1
$740
FatShark Dominator HDO2 + ImmersionRC rapidFIRE + Lumenier AXII Patch + Double AXII 2
$819
FatShark Dominator HDO2 + ImmersionRC rapidFIRE + Lumenier AXII Patch + Double Long AXII 2
$815
FatShark Dominator HDO2 + Foxeer Wildfire
$658
FatShark Dominator HDO2 + True-D
FatShark Dominator HDO2 FPV Goggles + ImmersionRC rapidFIRE Module
FatShark Dominator HDO2 + Foxeer Wildfire + ImmersionRC antenna set
$825

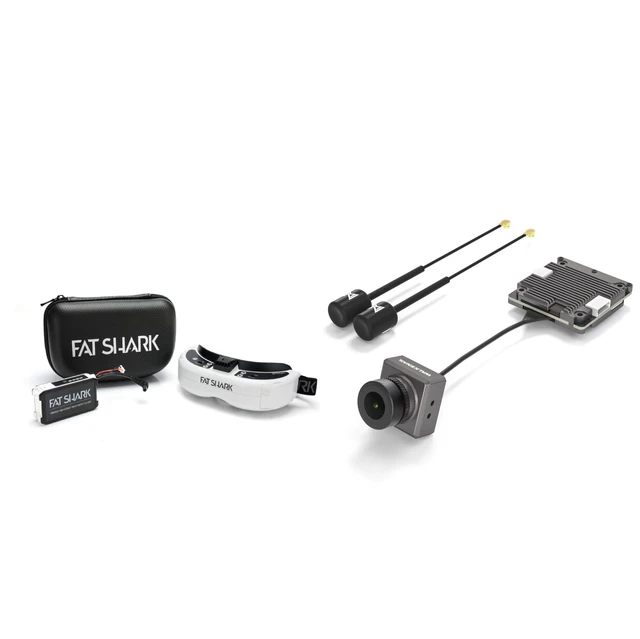

FatShark Dominator HDO2 + Walksnail Avatar HD Nano Camera VTX Kit
