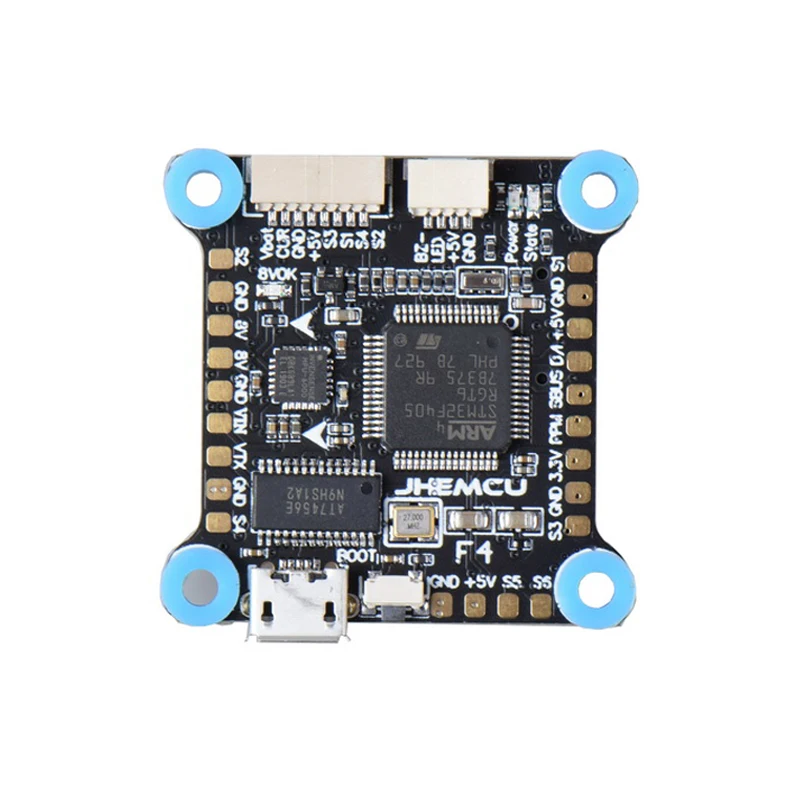

30.5x30.5mm JHEMCU F4 2-6S Flight Controller AIO OSD BEC for RC Drone FPV Racing
Specification:
Brand Name: JHEMCU
Item Name: Betaflight F4 OSD Flight Controller Integrated with BEC Output
Specification:
Brand Name: JHEMCU
Item Name: Betaflight F4 OSD Flight Controller Integrated with BEC Output
MCU: STM32F405RGT6
Gyroscope: MPU6000
Barometer: NO ( Reserved pad)
Barometer: NO ( Reserved pad)
Input Voltage: 2-6S Lipo
- BEC 1 Output: 5V @ 2A ( for LED/ Receiver/ Buzzer etc.)
- BEC 2 Output: 8V @ 3A ( for VTX / Camera)
- BEC 2 Output: 8V @ 3A ( for VTX / Camera)
- Integrated with OSD (AT7456E) , support BF Ground Station adjust OSD
Black box: TF Card Holder
Receiver: Support PPM, SBUS, IBUS, DSM2/ DSMX Receiver
Size: 36x36mm
Mounting Hole: 30.5x30.5mm, M4
Mounting Hole: 30.5x30.5mm, M4
Weight: 6.9g
Instruction for diagram pciture:
+5V: BEC 5V 2A con. ( 2.5A Max.)
3.3V: LDO3.3V ( 300mA Max.)
VBAT+: share Lipo power
CUR: ESC Current signal input
S1, S2, S3, S4, S5, S6: ESC Signal
VTX: Video output for video Transmitter
VIN: Camera Video input
8V: Con. Current 3A ( for VTX and Camera Power supply)
BZ- : General active 5V buzzer for dbuz 5V
RSSI: Receiver RSSI INPUT
LED: WS2812 LED signal
SCL & SDA: I2C_SCL & I2C_SDA
PPM: PPM RC Receiver Input
SBUS: SBUS RC Receiver Input
D/I: DSM and IBUS RC Receiver Input
(RC Receiver,SBUS,IBUS,DSM: RX1 )
T1: UART1 TX1
R3 & T3: UART3 RX3 and TX3
R6 & T6: UART6 RX6 and TX6
Package Included:
1x F4 Flight Controller Board
4x M3 Anti-vibration Balls
Package Included:
1x F4 Flight Controller Board
4x M3 Anti-vibration Balls
