Video TX 5.8GHz
Skyzone SKY-N2000 5.8GHz
FPV → FPV 5.8GHz → Video TX 5.8GHz → Skyzone VTXs 5.8GHz → Skyzone SKY-N2000 5.8GHzFree Shipping!Skyzone N2000 5.8Ghz 32CH 2000mw AV Transmitter w/Digital Display OSD For FPV

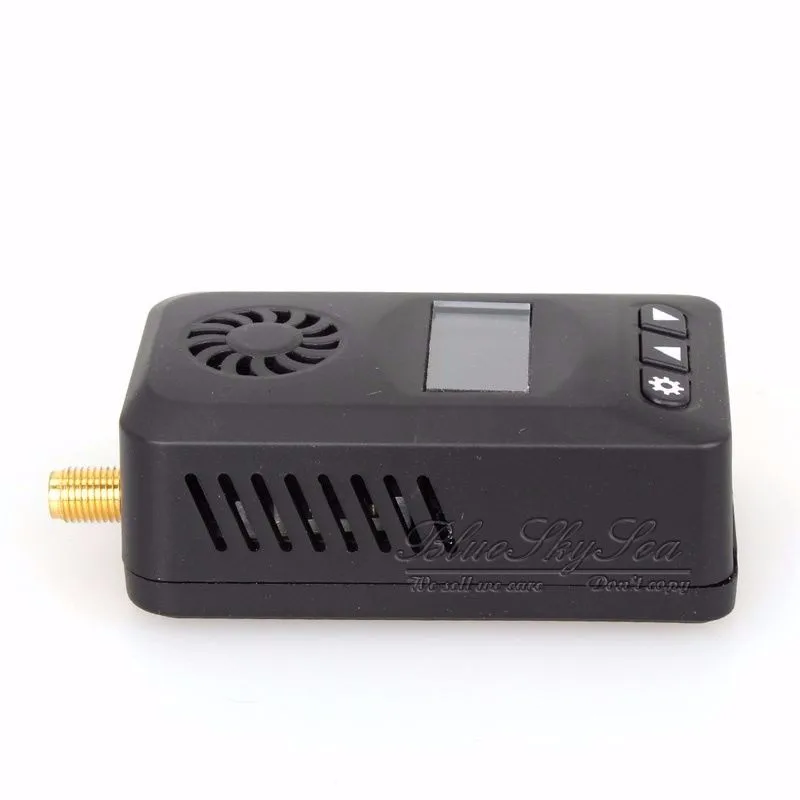

Skyzone N2000 FPV 5.8Ghz 32CH 2W 2000mw AV Transmitter with Digital Display.
Features:
Battery Voltage display.
Support 2-6S battery and low battery alarm.
Channel and Frequency clearly visible on screen.
Screen Display: Current/Temperature/PA Power detection.
Output power 2w, distance no less than 2Km with 2dbi Omni directional antenna.
2Ch video input, Remote channel switching via spare channel on RC transmitter.
128 * 64 super bright color digital display with High Brightness & Contrast, clearly visible under the sun.
Specifications:
Brand Name: Skyzone
Item Name: N2000 5.8Ghz 32CH 2W Transmitter
Antenna Connector: SMA Male
Operating Voltage: 6.5V-28V
Output Power: 27dbm-33dbm 25
Supply Current: 12V 0.5A-1A
Operating Temperature: -10-80
Voltage Detection Accuracy: 0.05V - 0.5V
Current Detection Accuracy: 0.05A - 0.2A
Temperature Detection Accuracy: 5 - 10
PA Detection Accuracy: NA * 1
Video Band Width: 5MHz-6MHz
Video Input Impedance: 75/1Vp-p
Audio Input Impedance: 6.5M H z
Audio Sub-carrier: 4.7
Channel&Frequency:
CH1(MHz): 5865, 5733, 5705, 5740
CH2(MHz): 5845, 5752, 5685, 5760
CH3(MHz): 5825, 5771, 5665, 5780
CH4(MHz): 5805, 5790, 5645, 5800
CH5(MHz): 5785, 5809, 5885, 5820
CH6(MHz): 5765, 5828, 5905, 5840
CH7(MHz): 5745, 5847, 5925, 5860
CH8(MHz): 5725, 5866, 5945, 5880
Package information:
Package size: 10 * 6.5 * 4cm / 3.9 * 2.6 * 1.6in
Package weight: 129g / 4.5oz
Gift package
Package list:
1 * N2000 5.8G 2000mW Transmitter
1 * Stock Dipole Whip Antenna
1 * Power In Harness
1 * Power out Video out Audio out Harness
