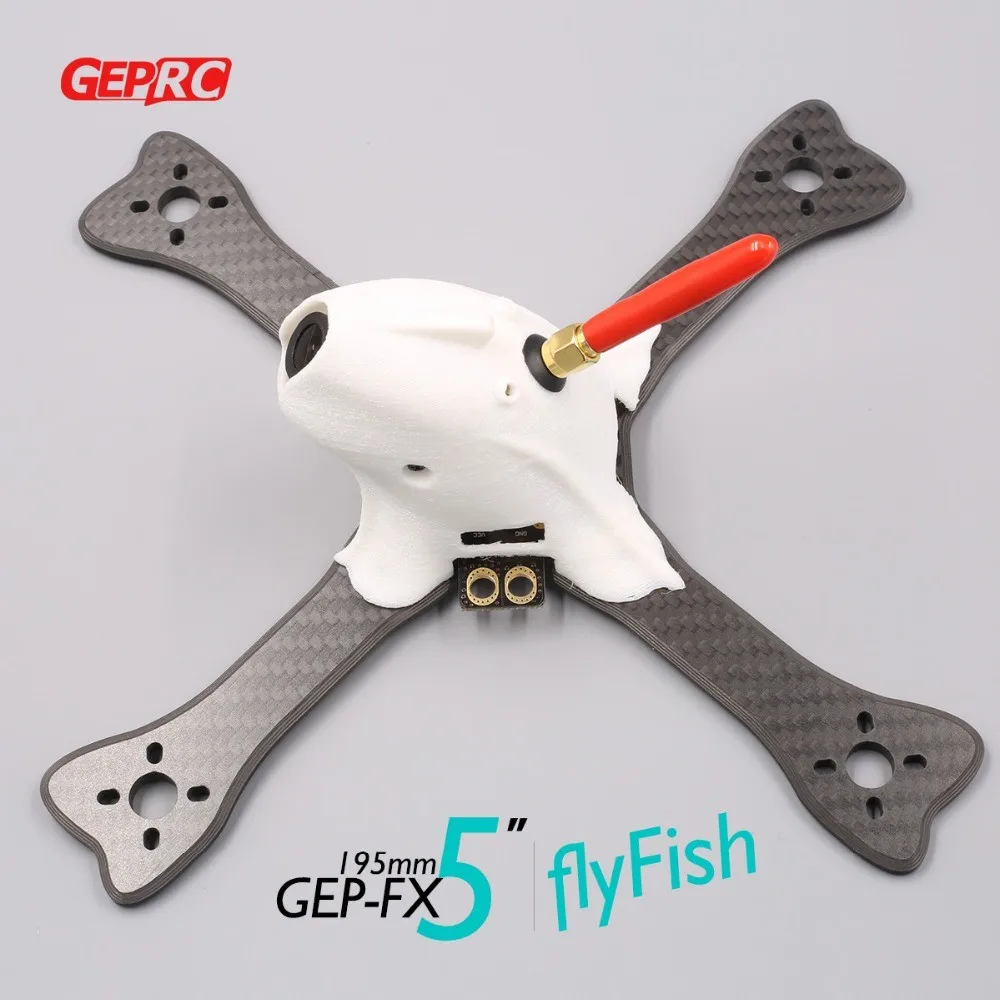

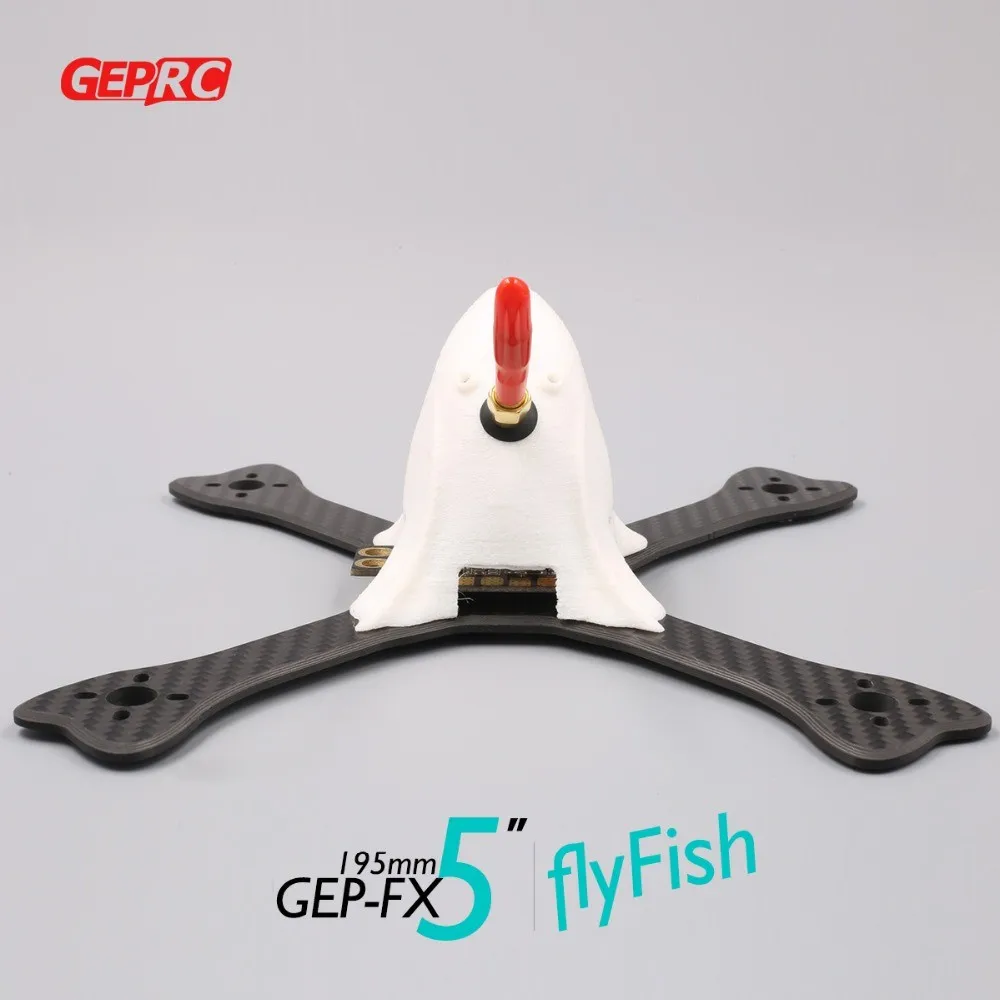

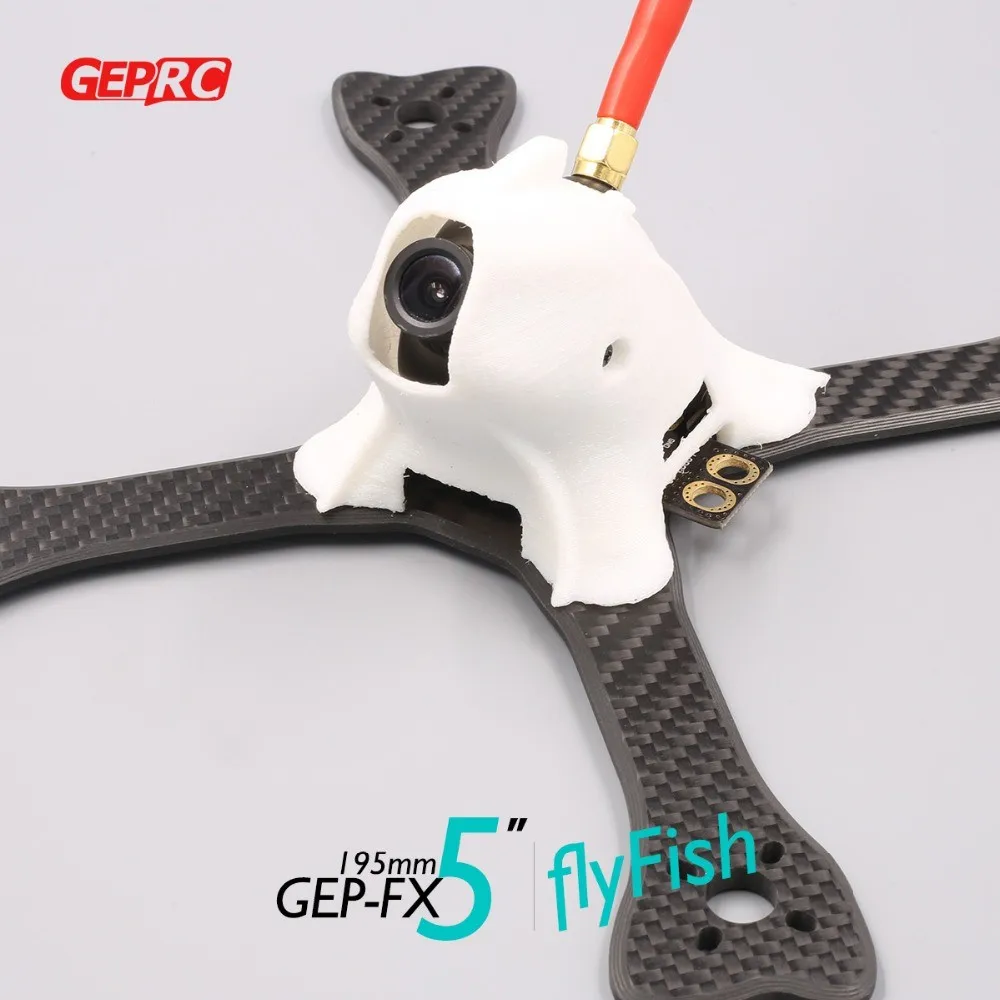

GEPRC GEP-FX5 FlyFish 195mm 5"

FPV GEPRC GEP-FX5 flyFish FPV Carbon Fiber Frame Kit quadcopter cross racing 3D printing TPU

Summary:

Beautiful, light, race, drag the small, this looks like a "fish" the same chassis was born, we call him the team is "flyFish". Rack wheelbase 195mm, use 4mm thick 3K carbon plate, you can pretend to be under 5-inch propellers. Motor seat is a good design, looks like a fish, it can play a role in protecting the motor, but also to enhance the strength of the motor housing. Body head using 3D printing technology, TPU material, this material body is doing a rare good material, flexible material, resistant to impact. Adjust the camera angle 35-60 degrees, suitable for flying hands. Of course, we will also consider the introduction of post-fixed angle 3D print, such as 35 degrees, 45 degrees, 50 degrees, etc., so the benefits are obvious, that is more extreme reduce drag. We chose to integrate PDB, XT60 interface only displayed on the side of it, eliminating the weight of a cable, while PDB integrated 5V BEC, inside the space is large enough.

Features:
1. 3K high strength carbon plate to ensure strong framework
2. In order to reduce wind resistance, the use of streamlined 3D prints, looks like a fish
3.5 inch wheelbase 195mm, 4-inch wheelbase 175mm, 6-inch wheelbase 230mm
4. The rack in an X shape between each machine arm 90 degrees (square X). Such benefits can be very flexible in each direction
5. The structure strong, beautiful, light weight (72g, containing all the fixtures)
6. Motor warehouse location widen, like fish, like the collision is not easy to blow up the motor, the motor strength increases
7. Lens adjustable, 35-60 degree
8. comes with a sub-panels, integrated XT60, with BEC (5 / 12v output)


parameter:
Model: GEP-FX5 flyFish
Weight: 72g (include Aluminum parts)
Wheelbase: 195MM 5inch props
Overall size: 188 * 185mm
One anti Thickness: 4mm

Recommended:
Flight Control: F3 / Naze32 / CC3D
Motor: 2204/2205/2206/2305
ESC: 20A-30A
Paddle: 5inch
Battery: 3S 1300mAh ~ 4S 1300mAh

Does not contain a camera
