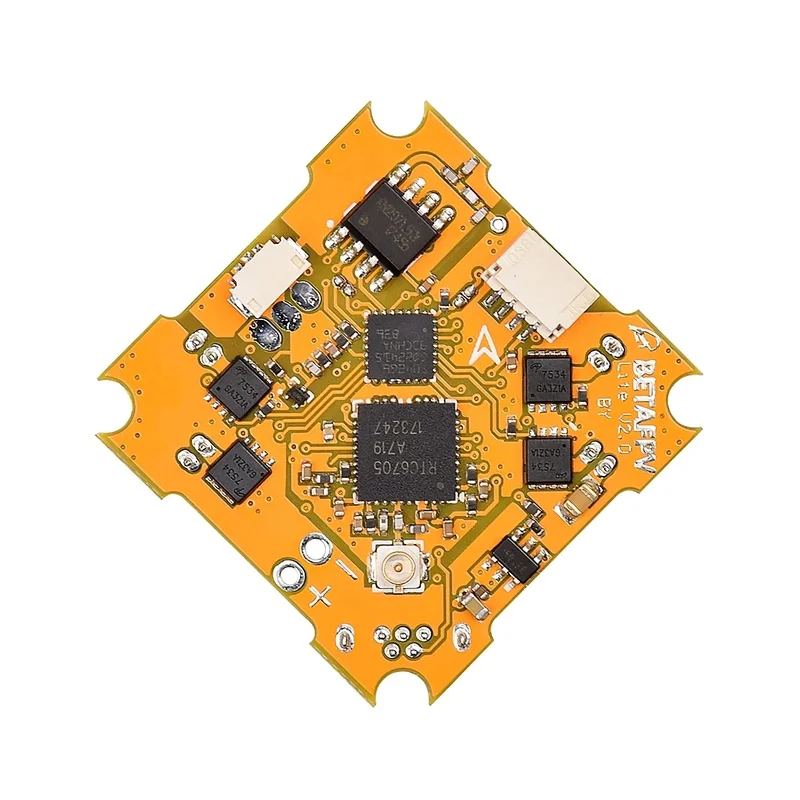

BetaFPV Lite Brushed

Specification:
CPU: STM32F030
Six-Axis: MPU6050
ESC: All FETs are rated at 6.3A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
Firmware version: Silverware firmware
Receiver: Bayang protocol
Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 2.5g

Silverware:
Silverware is a firmware for some micro quadcopters, which support level mode and acro mode. So you could use this on whoop FPV racing. Also it has the ability to change settings for custom builds, or to adapt to personal preferences.
By default, Silverware use stick sequences, which also called gestures, to change modes, tune PIDs, calibrate accelerometer or save settings.
Eg, with Frsky QX7 radio transmitter, change the FC's mode between level and acro. Just move the right stick as show below.

Supported radio transmitter:
Currently the built-in receiver is compatible with Bayang protocol. Here is a listing of radio transmitter that could be compatible with this FC board.
BETAFPV TX01 radio transmitter.
Radio transmitter of toy drone like JJRC H67, Eachine E011 etc, that using the Bayang protocol
Jumper T8SG radio transmitter
MTX-9D multiprotocol module (Suit for Frsky Tanaris QX7 X9D X9D Plus X12S, Flysky TH9X, Turnigy 9XR/9XR PRO)
Other 4in1 multiprotocol module that support the Bayang protocol

Package:
1 * BETAFPV Lite brushed flight controller V1.0 ( 55mm PH-JST 2.0 power cable soldered)
4 * M1.2x4mm screws (Fit for stock Inductrix frame)
4 * M1.4x5mm screws (Fit for Beta75 etc 75mm frame)
4 * Anti-vibration ruber dampers
