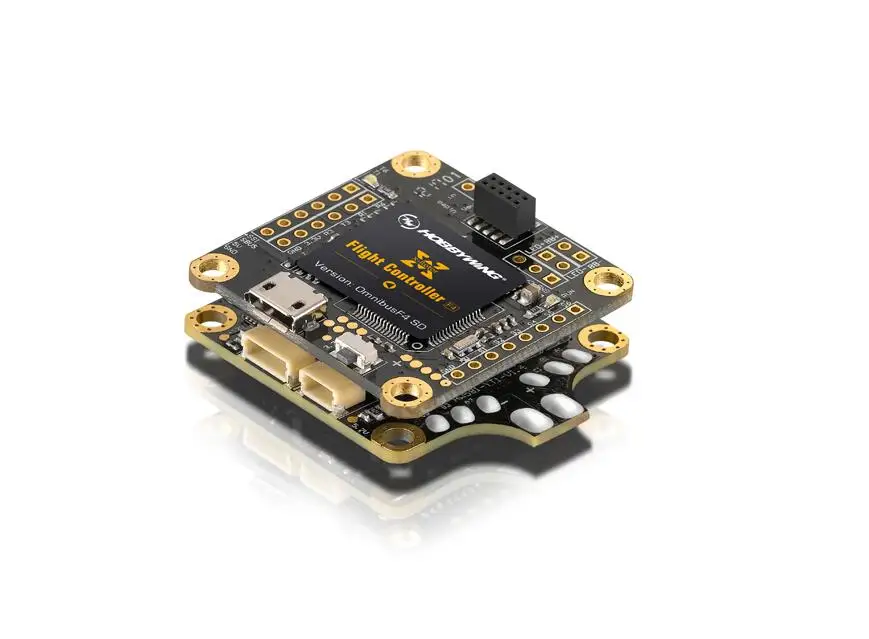

Hobbywing XRotor F4 + 40A 4in1

Introduction：

• Super-high Running Frequency The STM32F405 MCU which features the powerful computing capability and super-high running frequency allows the FC to run the PID and gyro with higher frequency.
• DShot 150/300/600/, Oneshot125, Oneshot42, Multishot Modes Supported Besides the latest Dshot 150/300/600/1200 mode, the FC also supports the regular PWM mode, Oneshot125 mode, Oneshot42 mode and Multishot mode.
• TF-card Insertion Supported Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
• Onboard OSD Microchip Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
• BetaFlight/Cleanflight Firmware Ready The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight software is more applicable to FPV flying & racing.
• Compatible(with the Hobbywing 4IN1 ESC&VTX) It’s easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (Video Transmitter).

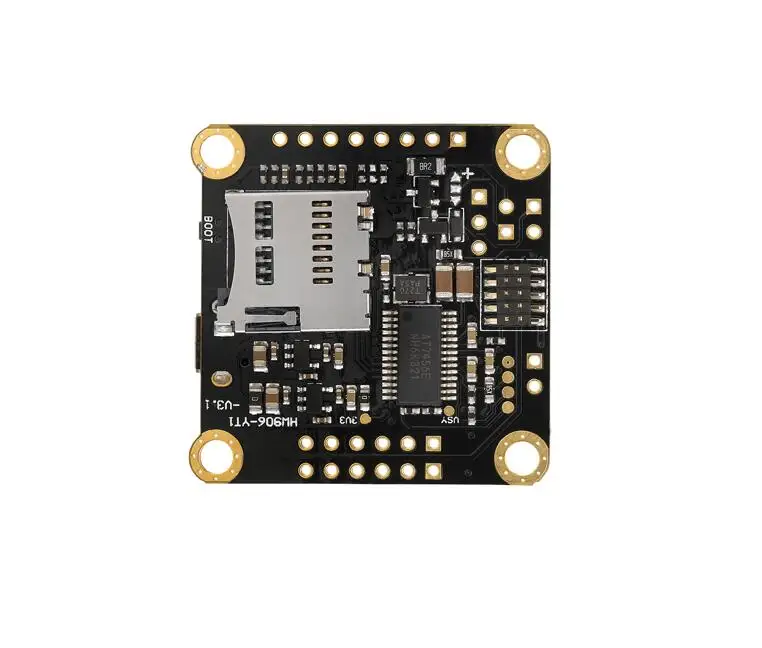

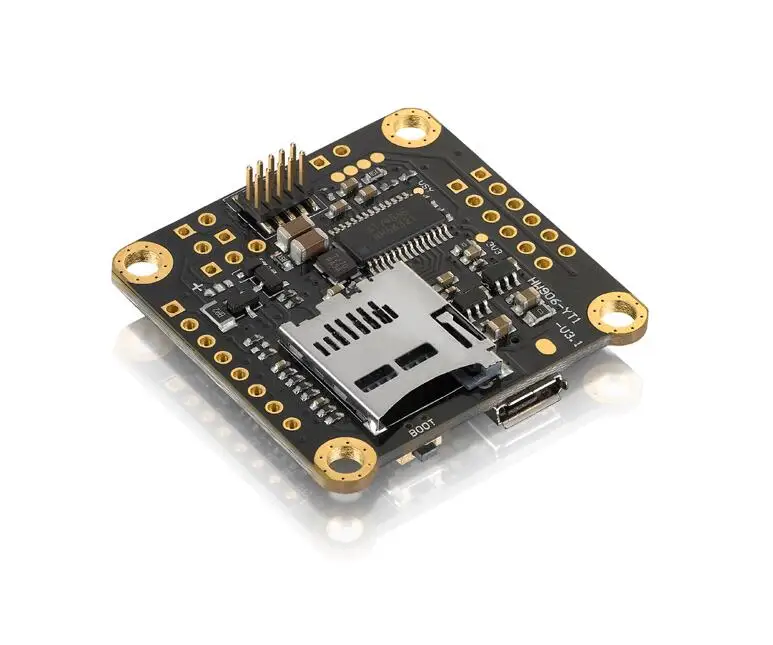

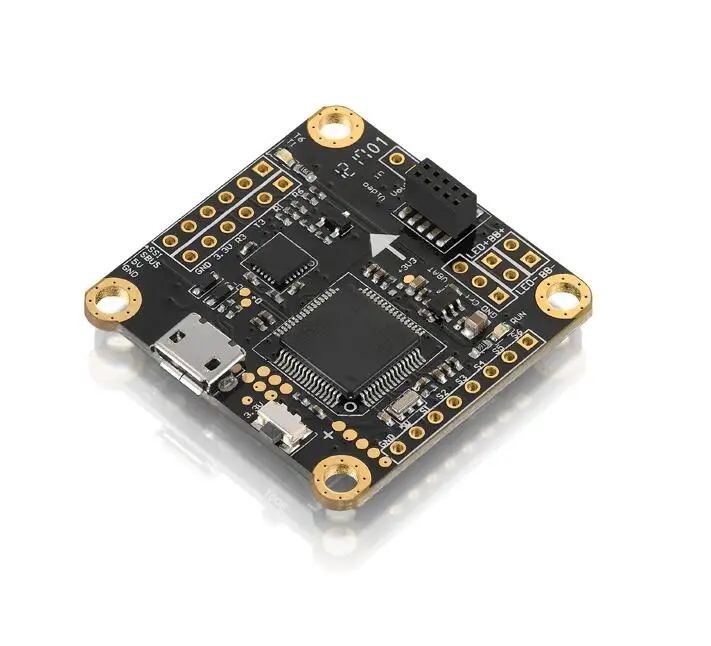

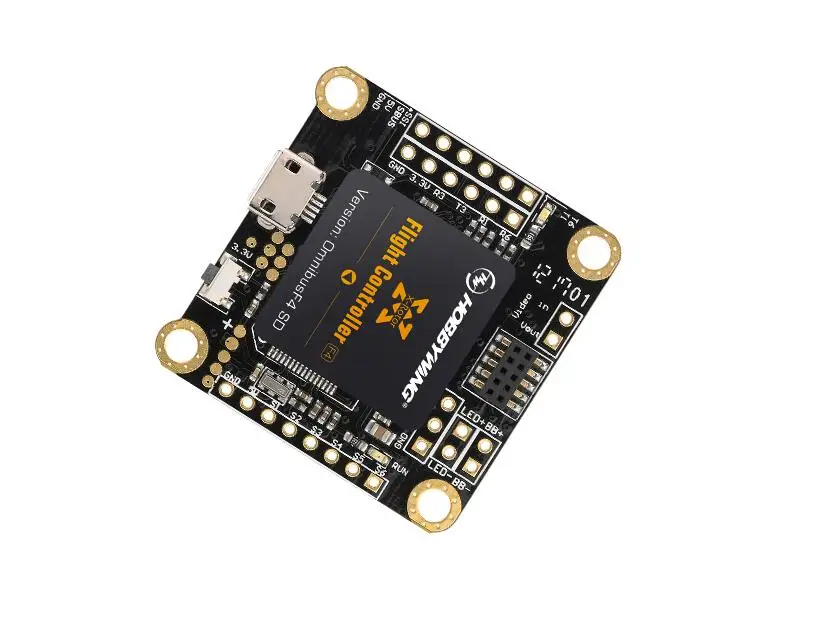

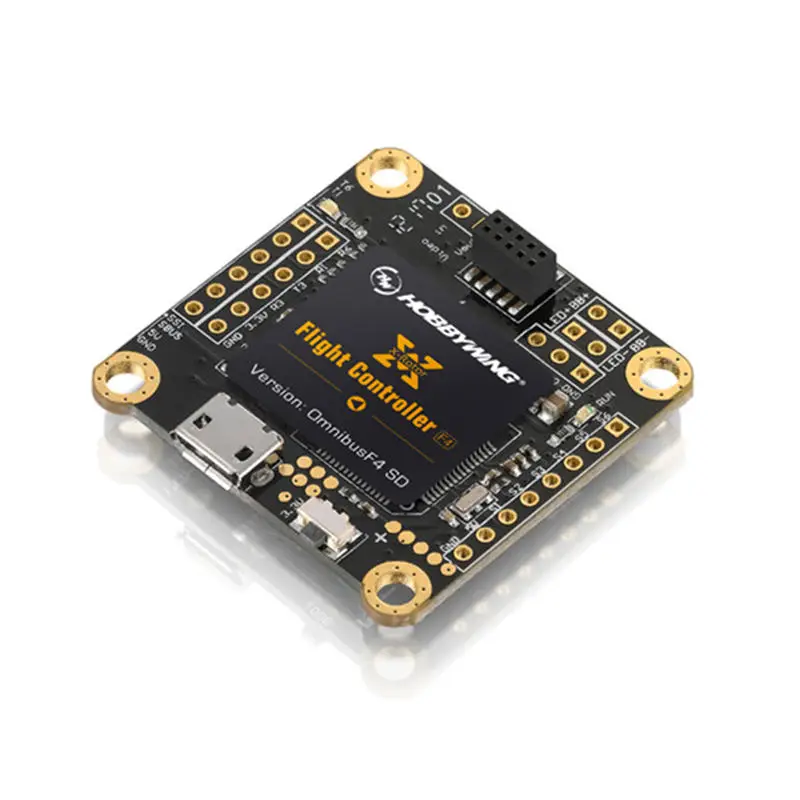

F4 Flight Contr oller:

Size: 35x35mm

Mounting Holes: 30.5x30.5mm

Firmware Version: OMNIBUSF4SD

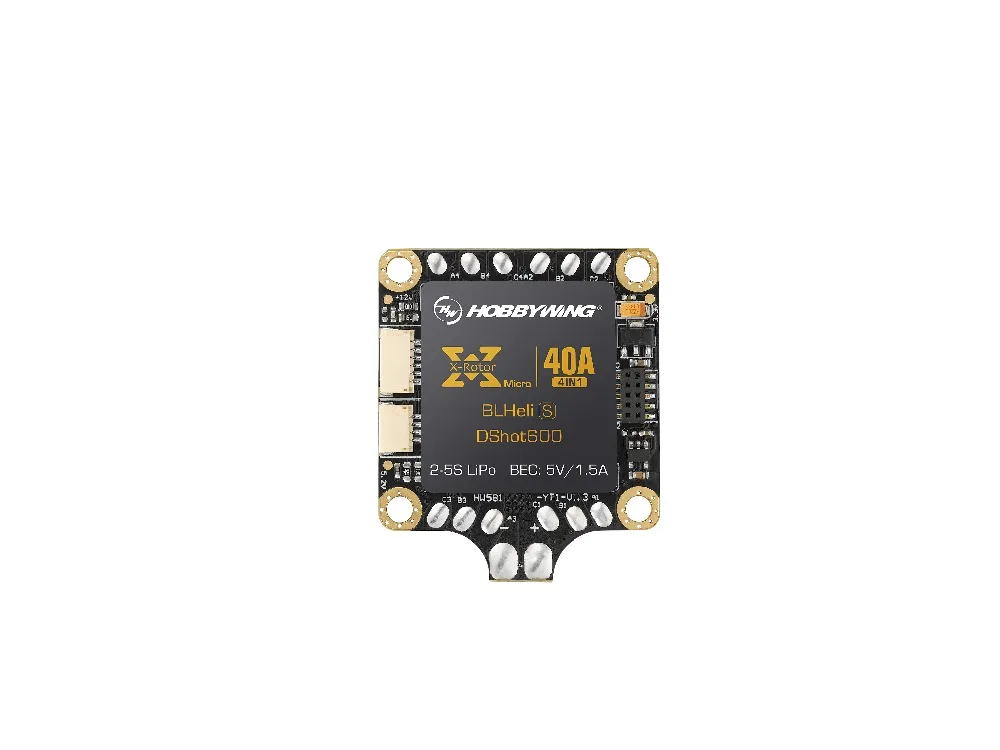

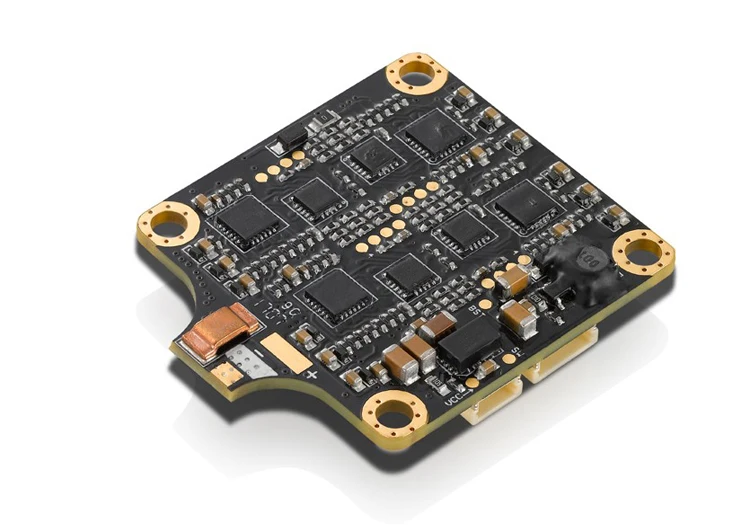

40A ESC:

Cont./Peak Current: 40Ax4/50Ax4

Input Voltage: 2-5S Lipo

BEC output: 5V & 1.5A

Firmware: BLHeli_S A-H-50 16.5

Input Wires: Red-14AWG-130mm / Black-14AWG-130mm

Output Wires: No wires but solder tabs

Support: DShot150/300/600,  Oneshot125 Mode , Oneshot42 Mode

Size: 42.6x36x4mm

Weight: 10g
