Happymodel Larva X 100mm 2.5" Frame Kit
RunCam Nano 2 + BWhoop VTX for Larva X / Mobula 7
Multirotors → FPV Racing drones → RTF/ARF/PNF → 2.5" Quads → Happymodel Larva X 2.5" 100mm F4 3S Frsky D8 SPI → Parts for Happymodel Larva X 2.5" → RunCam Nano 2 + BWhoop VTX for Larva X / Mobula 7

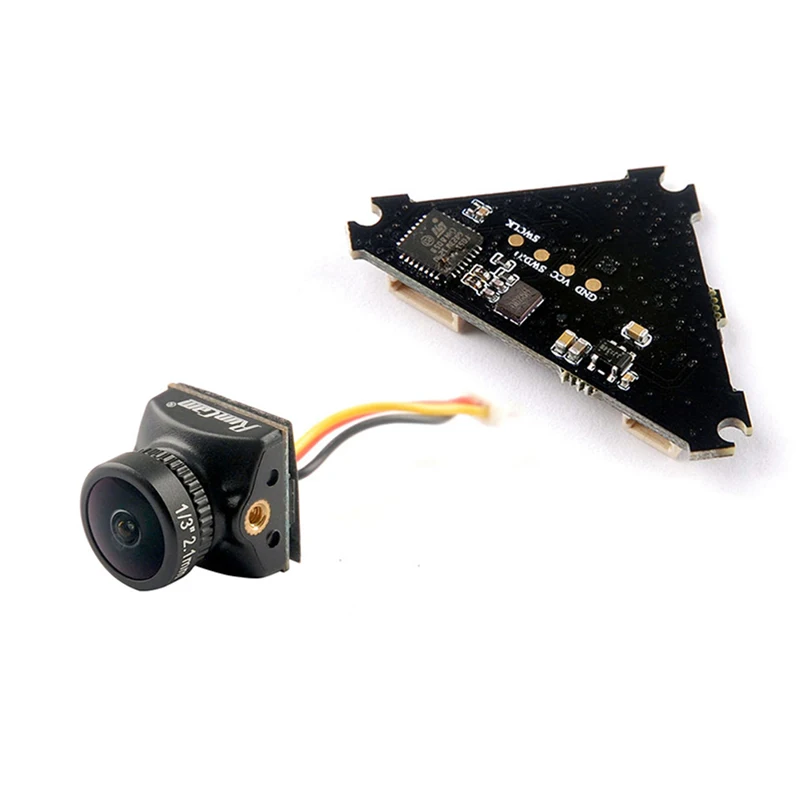

RunCam Nano 2 NTSC FPV Camera with VTX 2.1mm / Diamond VTX FOV 155° 700TVL Nano2 Camera SH1.0 3pin for Larva X Mobula 7 HD
Model: Nano 2
Image Sensor: 1/3" CMOS
Image:4:3
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 3.2g
Dimensions: 14x14x16mm ( LxWxH)
Customized for Larva X with SH1.0 3pin

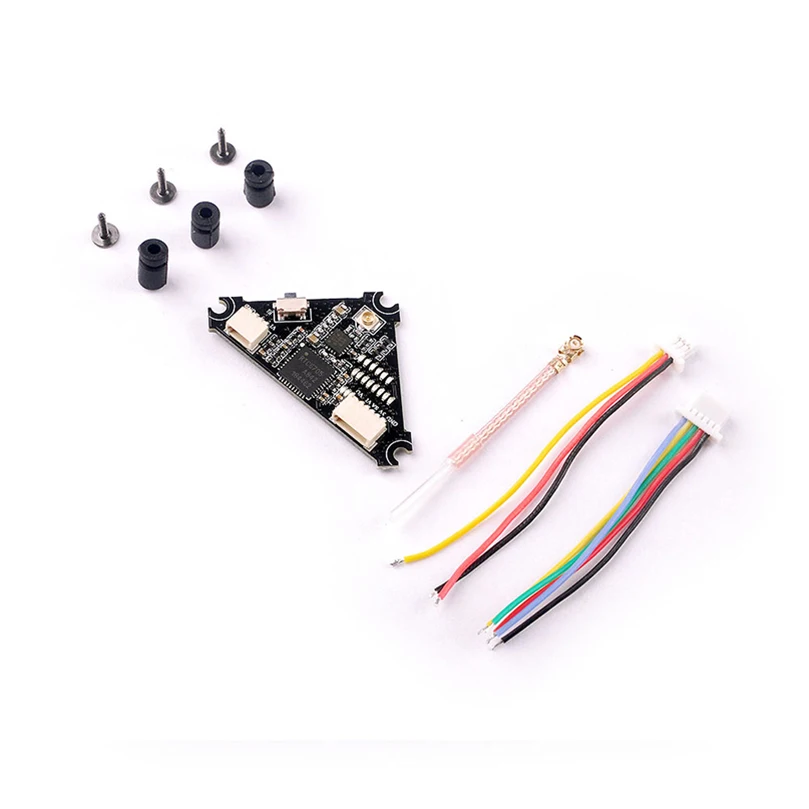

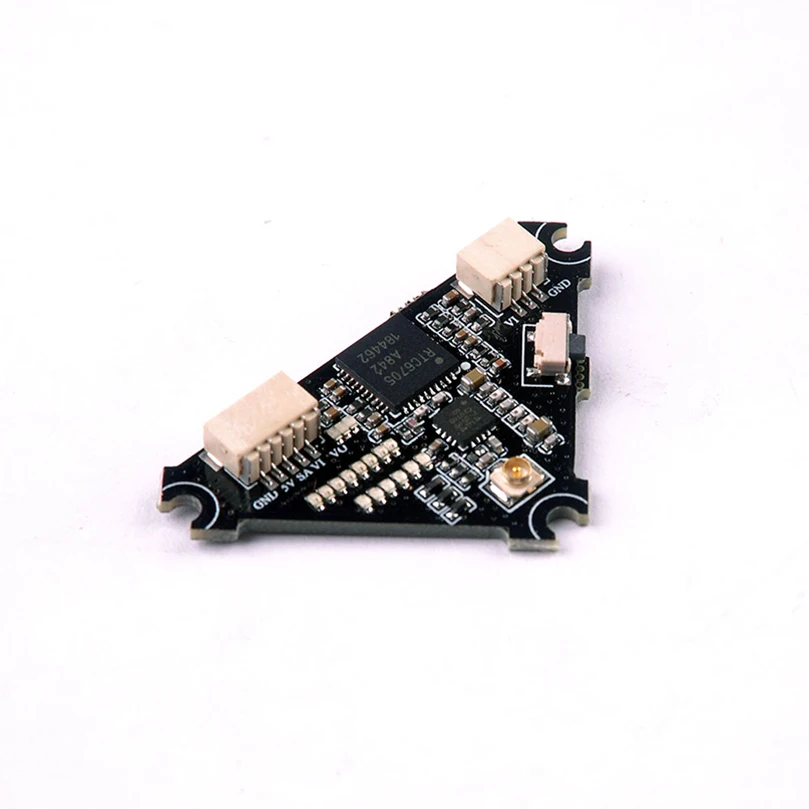

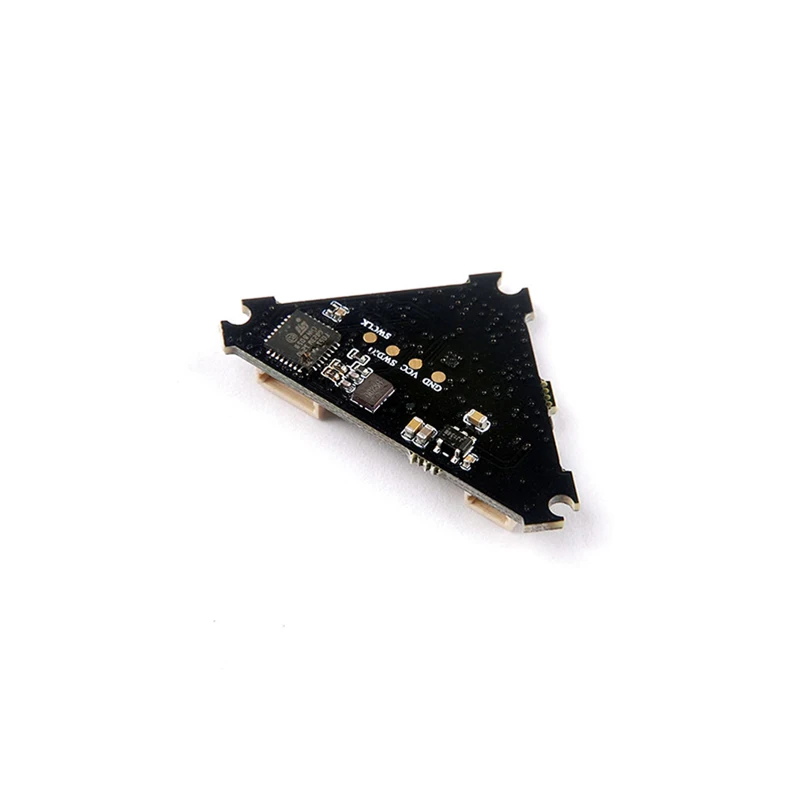

Happymodel Diamond VTX 5.8G 40ch 25mw-200mw Switchable VTX with DVR
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna

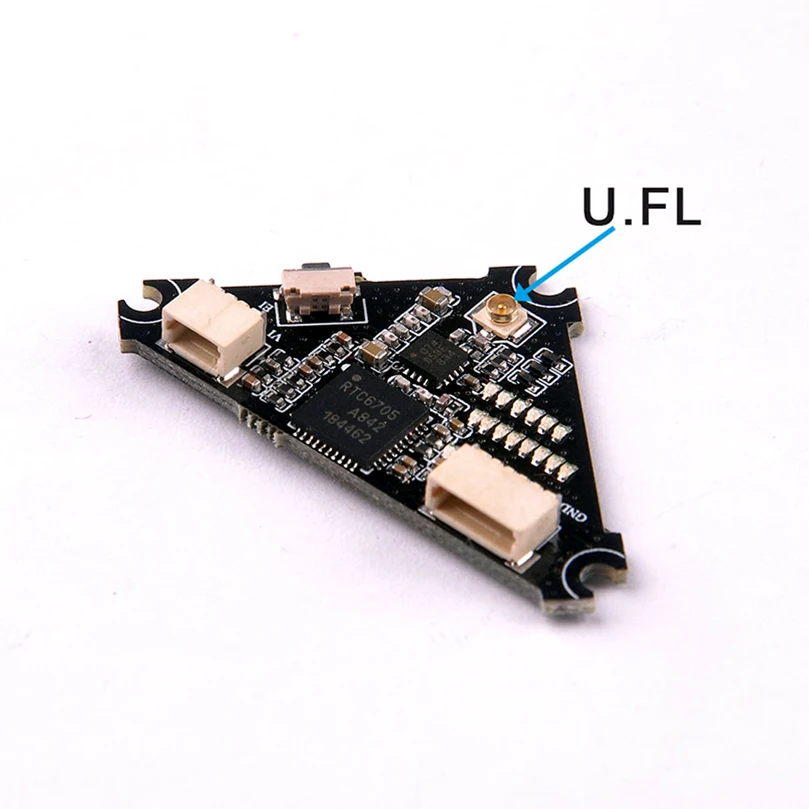

U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640x480)
Video Output format: NTSC
Record video size : 1280x720 @25FPS
TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI
Features:
Short touch the button to Start/Stop Video recorder
The video will split to 2 minutes automatically
Best for upgrade Mobula7 / Eachine Trashcan
Small size , lighter only 3gram and easy to mount in a regular whoop
Built-in DVR(Video size 1280x720)
Auto start when power on
Note: Auto-save when Power off is not support, please remember to press the stop button after landing
