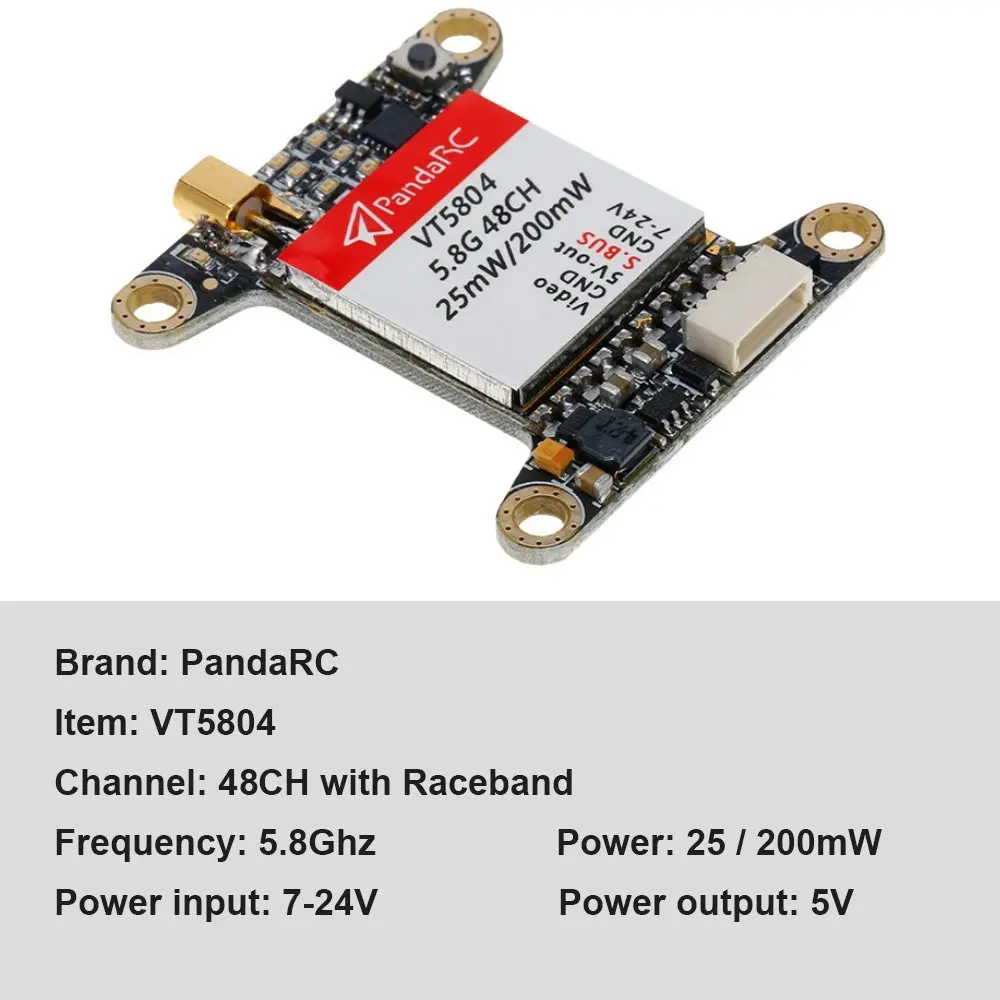

PandaRC VT5804 25/200mW

Output power is stable, transmission distance: ≥ 0.5km @ 25mW, ≥ 1km @ 200mW, ≥ 2km @ 600mW (bar antenna);
Transmit power 3 block switch: 25mW / 200mW / 600mW (VT5804 support 25mW / 200mW, VT5804pro support 25mW / 200mW / 600mW);
LS.BUS remote frequency control;
Output 40 frequency points, and have E group 8 race frequency at the same time using each other without interference;
Frequency lock fast, boot does not interfere with companions;
Comes with output power self-test function;
Full standard video format: NTSC / PAL;
Wide input voltage range, low power consumption: 7V ~ 24V, +12 V / 260mA @ 600mW;
Small size: 36mm × 36mm × 5mm, the installation hole fully corresponds to CC3D NAZE32 F3 F4 flight control;
Light weight: ≤ 6g (not including antenna);

The transmission is 5.8G ISM band analog video transmission transmitter, with stable output power, transmission distance, power filter strong, to ensure that the image under the maximum throttle no snow, no stripes and so on.
Not only this, VT58 series map also has the ability to control the long-range S.BUS, boot time does not interfere with the companion, and support more than 8 people at the same time flying super function.


Frequency and power control methods:

S.BUS remote frequency control: VTX access S.BUS signal, through the remote control sixth channel control the current group frequency CH1-CH8 cycle (remote control sixth channel set two switches, travel to keep the maximum);
Press the key to control: Press once to change the number of channels CH (CH1-CH8), press and hold the button for 2 seconds and then press the key to change the frequency group FR (A-E)
Key power control: long press the button for 10 seconds, then press the button to change the power level 25MW / 200MW / 600MW

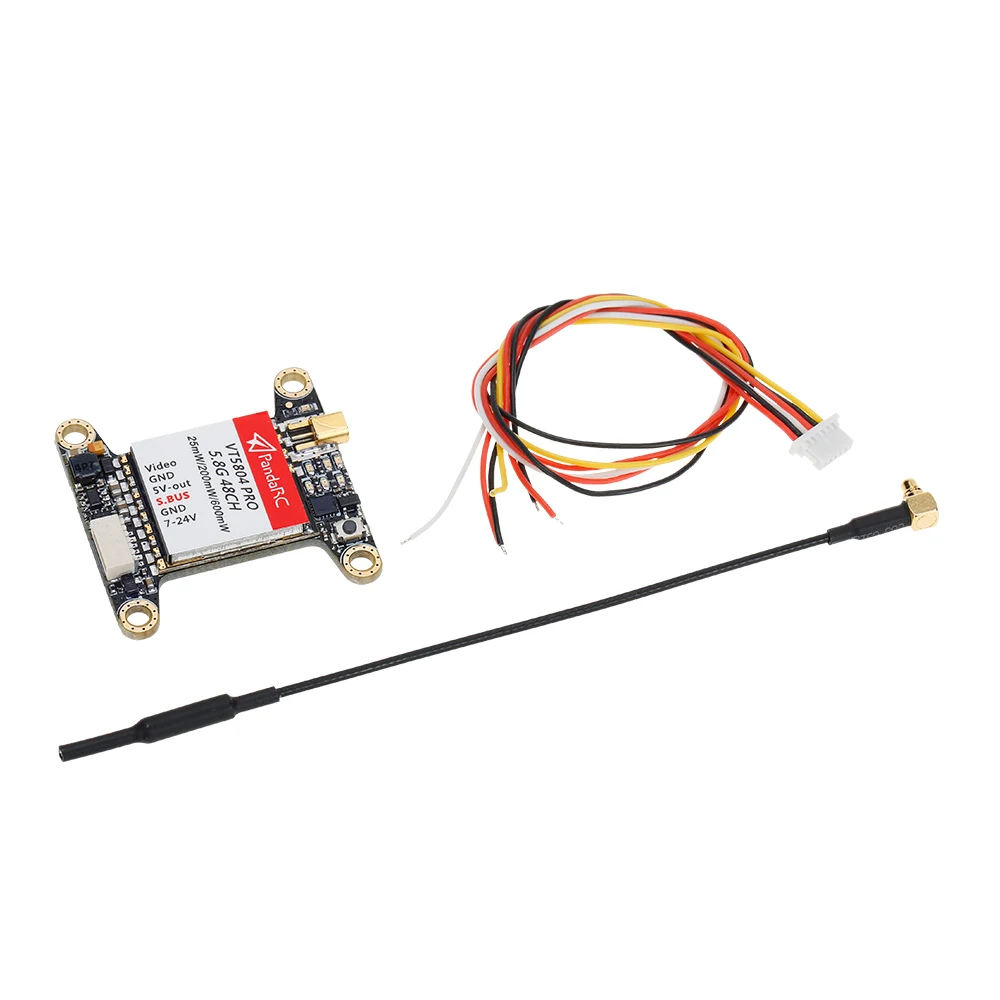

Package List:
1 * PandaRC  Transmitter(5804/5804 Pro)
1 * Cable Set
1 * MMCX Antenna
