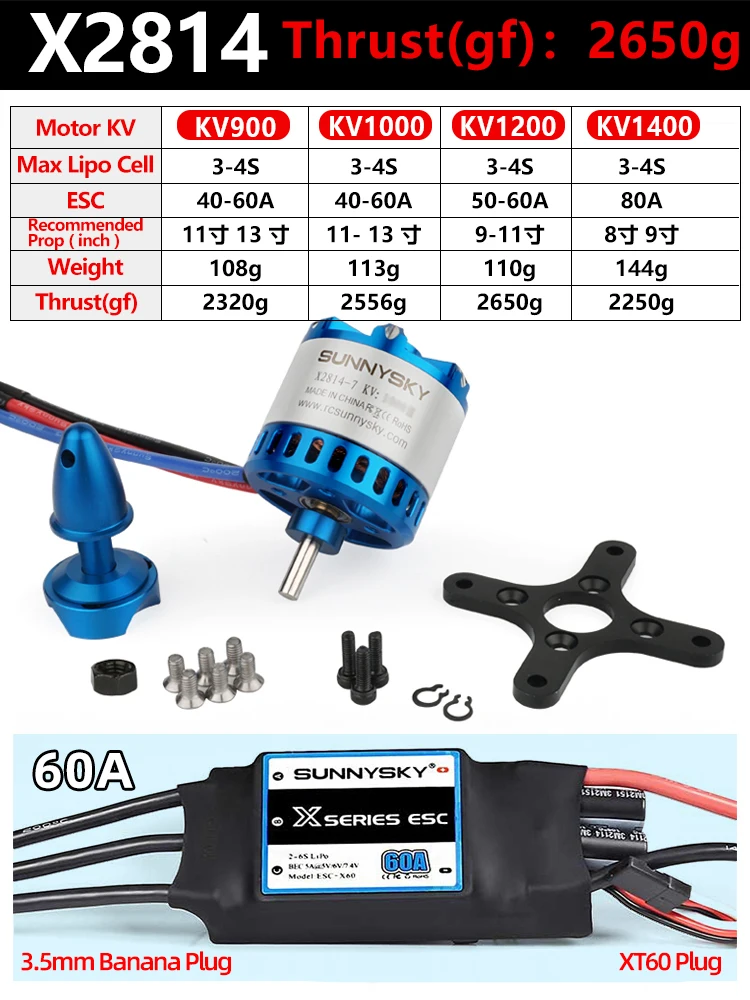

SunnySky X2814 III 900KV

$38

in the store

 AliExpress

FREE SHIPPING
Stock level: 11

↓ Another stores

Description:
Brand Name: SunnySky
Item Name: Brushless Motor
Series Name: X2814-III
KV: KV900,KV1000,KV1200,KV1400 (optional)
Color: Blue

Specifications:

KV	900	1000	1200	1400
Stator Diameter	28mm
Stator Thickness	14mm
No. of Stator Arms	12
No. of Rotor Poles	14
No-Load Current (A/10V)	1.2A	1.3A	1.7A	2.3A
Motor Resistance	33.6mΩ	35.5mΩ	21.3mΩ	15.9mΩ
Max Continuous Current	50A/30s	55A/30s	55A/30s	80A/30s
Max Continuous Power	680W	750W	815W	1180W
Weight	108g	113g	110g	109g
Rotor Diameter	35mm
Body Length	36mm
Max Lipo Cell	3-4S
Recommended ESC	40-60A	40-60A	50-60A	80A
Recommended Prop(inch)	APC11*5.5, APC13*6.5 APC11*8, APC13*8	APC11*5.5, APC13*6.5 APC12*6, APC12*8	APC11*5.5, APC1050, APC9060	APC8060, APC9060
Applicable Aerobatic Airplane Weight	1200g--1400g (3S APC13x6.513x8)(4S APC11x5.5APC11x7APC11x8)	1200g--1400g (3S APC12x612x8)(4S APC11x5.5)	1000g-1300g (4S APC1060APC9060APC8060)(3S APC11*5.5)	1000g-1400g (4S APC9060APC8060)
Applicable 3D Airplane Weight	800g-1200g (3S APC13x6.513x8)	800g-1200g (3S APC13x6.512x612x8)	/	/



Tech Specs:
KV900, Click Here
KV1000, Click Here
KV1200, Click Here
KV1400, Click Here

Package Included:
1x SunnySky X2814-III Brushless Motor
1x Accessories
