Racing Drone Video TX
Holybro Atlatl HV V2 5.8G 40CH 25-800mW
Multirotors → FPV Racing drones → FPV drone electronics → Racing Drone Video TX → 600~800mW VTX → Holybro Atlatl HV V2 5.8G 40CH 25-800mWRecommended stores↓ Another stores
30.5x30.5mm Holybro Atlatl HV V2 5.8G 40CH 25/200/500/800mW FPV Transmitter Built-in Microphone
Specification: ( Manual )
Item Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Specification: ( Manual )
Item Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Transmitting Output Power: 25mW/ 200mW/ 500mW/ 800mW Switchable
Audio: 6 MHz + 6.5 MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Audio: 6 MHz + 6.5 MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Dimension: 35(L)x 25(W)x 7(H)mm
Mounting Hole: 30.5x30.5mm
Weight: 9.3g
Features:
- Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
- Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
- SmartAudio input allows remote control by the flight controller (where supported). Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
- All parameters art controllable via push-button on the side of the unit, for case where SmartAudio is not used.
- LED Indicators of Channel, Band and Power. Allow easily check VTX Parameters by glancing at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
Mounting Hole: 30.5x30.5mm
Weight: 9.3g
Features:
- Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
- Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
- SmartAudio input allows remote control by the flight controller (where supported). Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
- All parameters art controllable via push-button on the side of the unit, for case where SmartAudio is not used.
- LED Indicators of Channel, Band and Power. Allow easily check VTX Parameters by glancing at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
- 0.5mW Ture Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
- Built-in Microphone, so you can listen to your motors while you fly, no matter how far away you fly.
- Standard 36mm form factor allows you to mount the Atlatl directly in your flight controller stack.
How to change the power and Channel?
If you are using it with a Betaflight Flight Controller buit-in Betaflight OSD, you can manage the Atlatl's transmit power and Channel from within OSD.
More details about operation steps, pls read the manual.
Channel-Change Button:
The Atlatl is intended to be configured via Telemetry. If you can not use Telemetry, you can change Channels by using the Button buit-on the surface of VTX.
The button is intended only as a fallback option for when Telemetry is not avaliable. It would be very tedious to use the button as the primary means of configuring the Atlatl.
How to change the power and Channel?
If you are using it with a Betaflight Flight Controller buit-in Betaflight OSD, you can manage the Atlatl's transmit power and Channel from within OSD.
More details about operation steps, pls read the manual.
Channel-Change Button:
The Atlatl is intended to be configured via Telemetry. If you can not use Telemetry, you can change Channels by using the Button buit-on the surface of VTX.
The button is intended only as a fallback option for when Telemetry is not avaliable. It would be very tedious to use the button as the primary means of configuring the Atlatl.
1. Hold the button down for 2 Seconds to swtich from Telemetry Mode to Button Mode.
2.Then Press the button one time to change to the next channel. There is no separate " Band" and " Channel" function. The Atlatl will simply step through all 40 Channels that it support.
Package Included:
2.Then Press the button one time to change to the next channel. There is no separate " Band" and " Channel" function. The Atlatl will simply step through all 40 Channels that it support.
Package Included:
1x FPV Transmitter Board
1x 80mm SMA--MMCX Cable
1x wire
Share
Prices for Holybro Atlatl HV V2 5.8G 40CH 25-800mW in stores
Deals found: 117 (AliExpress7, Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | High stock level | $24 | 1 | $24 | ||
| AliExpress | High stock level | $26 | 1 | $26 | ||
| AliExpress | High stock level | $27 | 1 | $27 | ||
| AliExpress | High stock level | $27 | 1 | $27 | ||
| AliExpress | High stock level | $29 | 1 | $29 | ||
| AliExpress | High stock level | $33 | 1 | $33 | ||
| AliExpress | High stock level | $37 | 1 | $37 | ||
| Banggood | Out of stock | $38 | 1 | $38 |
See also
Holybro Kakute F4 V2 + Atlatl HV V2 5.8G 800mW
$47
Holybro Kakute F4 AIO V2 + 4 x Tekko32 35A + Atlatl HV V2
$133

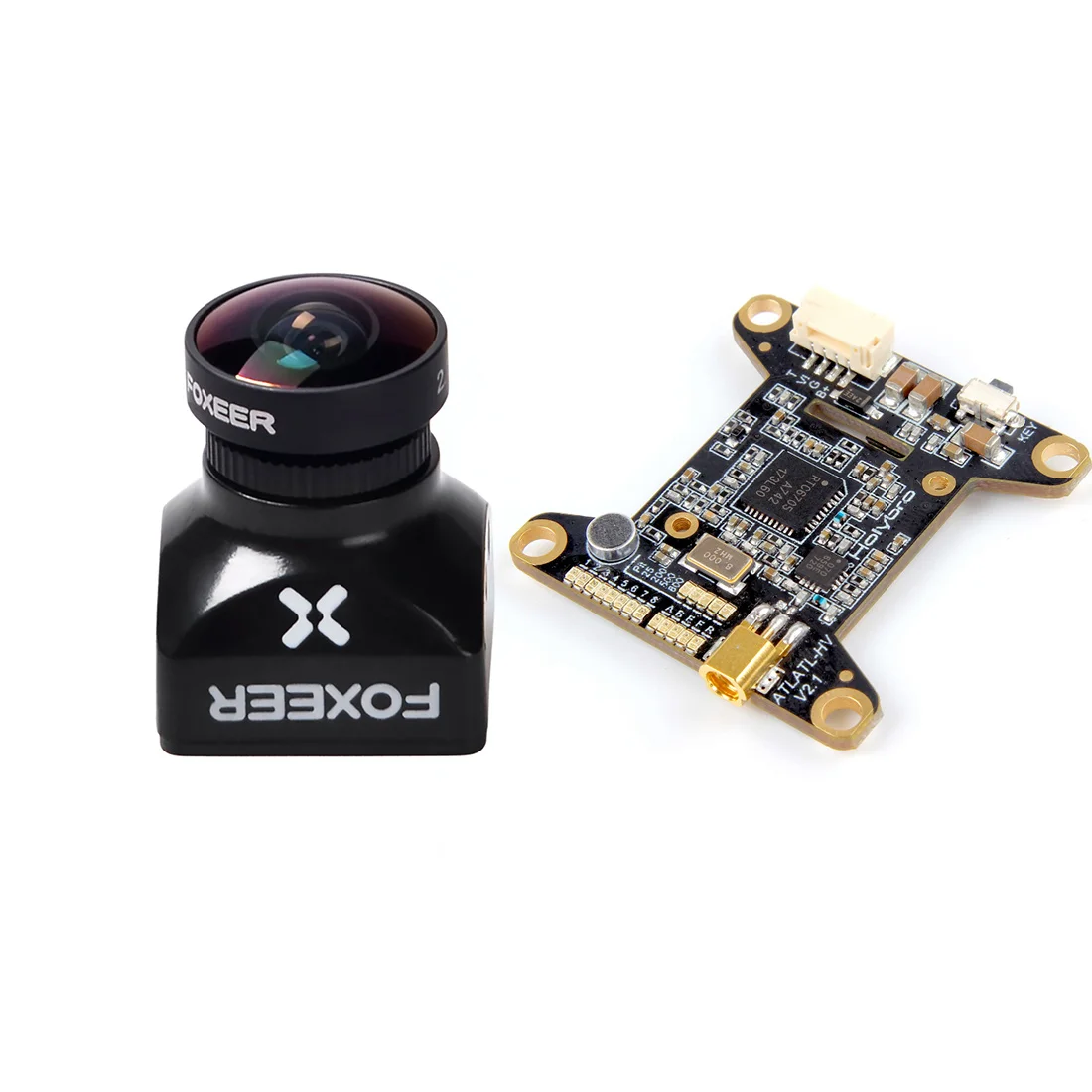

Foxeer Razer Mini M12 + Holybro Atlatl HV V2 5.8G
