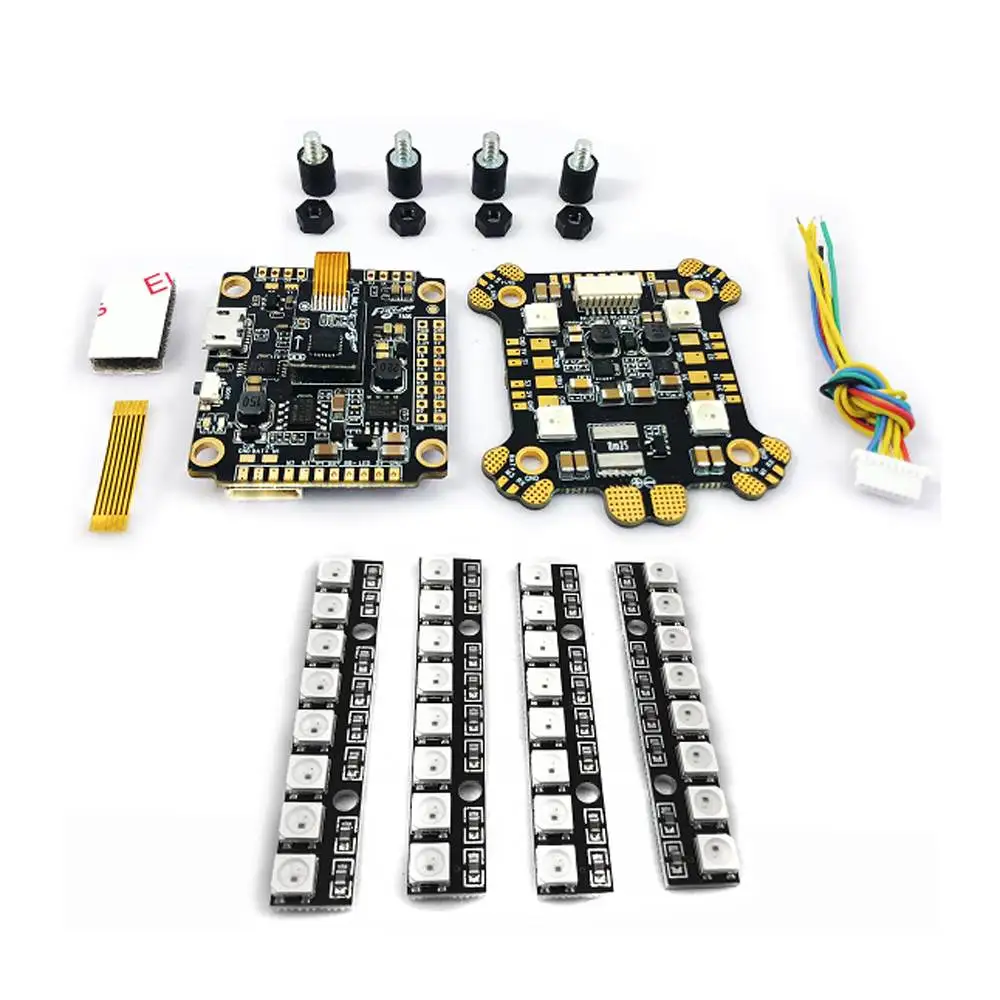

FLYWOO F405 + Power Hub LED

FLYWOO F405 flight controller uses STM32F405 high-performance processor and ICM20689 32KHz ultrahigh frequency gyroscope with built-in OSD, FLASH 5V and 9V BEC.
The image in large current flight is very clear and steady due to well-designed hardware and high-performance components.
With special dual shock absorption device, FLYWOO F405 can adapt to any frame or installation method, and it makes flight steady with 32KHz.
What's more, all UARTS are open to users so that you can extend its function. We hope FLYWOO F405 will bring you satisfying experience with humanized design and simple installation.

Specifications:
Size: 36 x 40mm
Hole: 30.5 x 30.5 - 3mm
Weight: 8.3g
MCU: STM32F405RGT6
GYRO: ICM20689 OR MPU6000
BARO: BMP280
FLASH: 16M
BEC: 5V 1.5A / 9V 1.5A
Input voltage: 3 - 8s
Firmware: FLYWOOF405

Main Features:
Dual shock absorption device ( 3M sponge absorbing screws ) 32KHz ultrahigh frequency gyroscope support camera menu settings 5V / 9V BEC output
Max voltage: 42V
Input 5 functional UARTS ( UART1, 3, 4, 5, 6 )
Max 8 motor output support SBUS, iBus, Spektrum, Crossfire

FFLYWOO Power Hub-LED Rev1 Board with built-in 4 sets of WS2812 lamp beads has the unique design, user-friendly layout and stable high-performance dual DC-DC module while supporting high voltage and high current. These make the board shine colorfully.
The 4 sets of pads which connect external lamp beads are convenient for DIY to connect multiple sets of LED lights.
5V and 9V 2A high-performance DC-DC power supply module, cleaner and more stable BEC and built-in current sensor can communicate directly with flight controller.
PCB board which consists of 6-layer 4OZ copper ensures the stability of high current.
It offers pad communication mode and socket communication mode to communicate with the flight controller.

Specifications:
Size: 44.7 x 47.8mm
Hole: 30.5 x 30.5 - 3mm
Weight: 10g
BEC: 5V 2A / 9V 2A
Input voltage: 3 - 8S
Max current: max 200A+
PCB: 6 layer-4oz
Output max voltage: 50V
Input Build-in current sensor
FLYWOO POWER-HUB PDB WS2812-8 LED Board
These LEDs can be programmed via Betaflight and Cleanflight
They require 5V and will not work on 12V.
These LEDs are not as bright as the 12V LEDs, but they can be programmed for low voltage, flight modes and patterns.
Item name: 8 LED
Board diameter: 57mm
Weight: 1.82g
Voltage: 5V FC
Addressable LED: full colors range
