11xx Motors

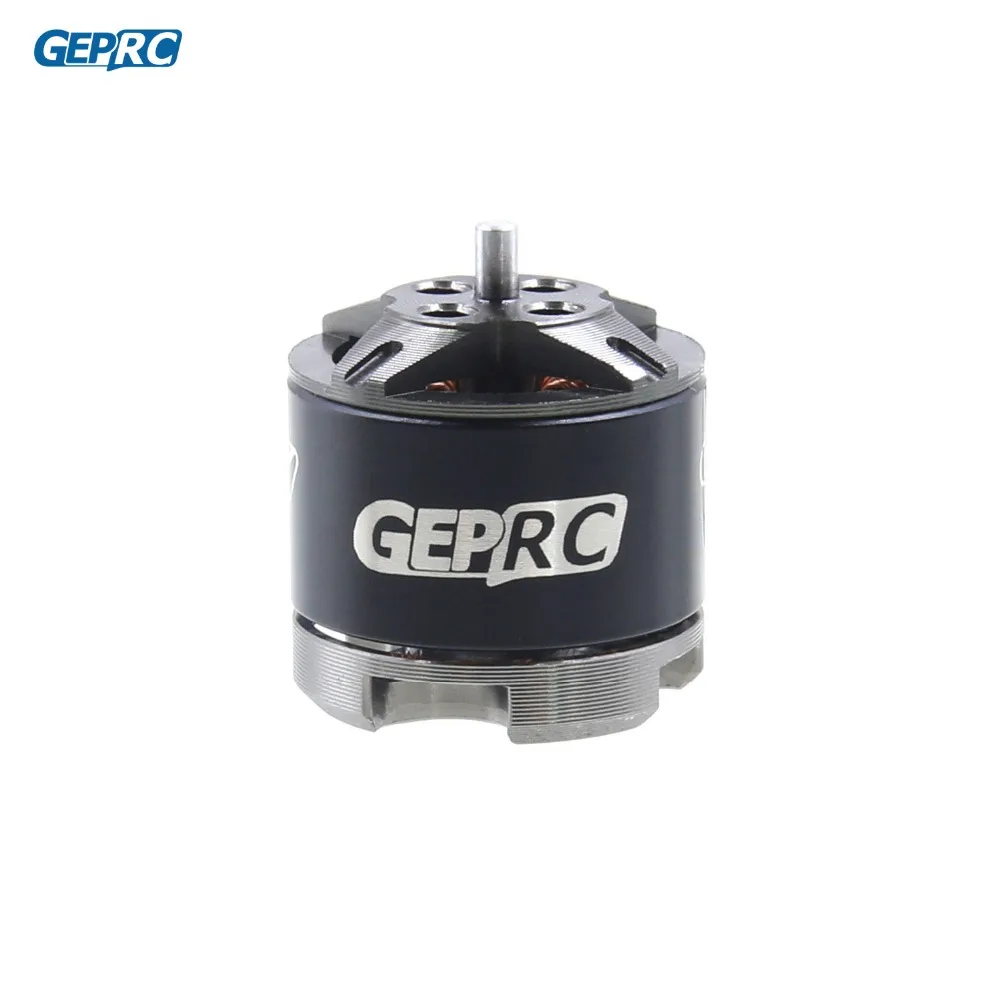

GEPRC SpeedX GR1106 4500KV
Multirotors → FPV Racing drones → Motors → 11xx Motors → 1106 Motors → GEPRC SpeedX GR1106 4500KV
GEPRC SPEEDX GR1106 4500KV 6000KV 7500KV 2-3S Brushless Motor for RC Drone FPV Racing
Specification:
Brand name: GEPRC
Item name: SPEEDX GR1106
KV: 4500KV 6000KV 7500KV
No.of Cells(Lipo):2~3S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:6mm
Shaft Diameter:1.5mm
Motor Dimension(Dia.*Len):Φ14.2*
Idle current(7.4)@7.4V(A):1.4
Weight (g): 7.1
4500KV
Maximum continuous power (W) 180S: 94
Internal Resistance: 120mΩ
Maximum current (180S): 11.72A
Maximum efficiency: 3.5
6000KV
Maximum continuous power (W) 180S: 183
Internal Resistance: 170mΩ
Maximum current (180S): 15.27A
Maximum efficiency: 3.57
7500KV
Maximum continuous power (W) 180S: 153
Internal Resistance: 266mΩ
Maximum current (180S): 9.59A
Maximum efficiency: 3.8
Specification:
Brand name: GEPRC
Item name: SPEEDX GR1106
KV: 4500KV 6000KV 7500KV
No.of Cells(Lipo):2~3S
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:6mm
Shaft Diameter:1.5mm
Motor Dimension(Dia.*Len):Φ14.2*
Idle current(7.4)@7.4V(A):1.4
Weight (g): 7.1
4500KV
Maximum continuous power (W) 180S: 94
Internal Resistance: 120mΩ
Maximum current (180S): 11.72A
Maximum efficiency: 3.5
6000KV
Maximum continuous power (W) 180S: 183
Internal Resistance: 170mΩ
Maximum current (180S): 15.27A
Maximum efficiency: 3.57
7500KV
Maximum continuous power (W) 180S: 153
Internal Resistance: 266mΩ
Maximum current (180S): 9.59A
Maximum efficiency: 3.8
