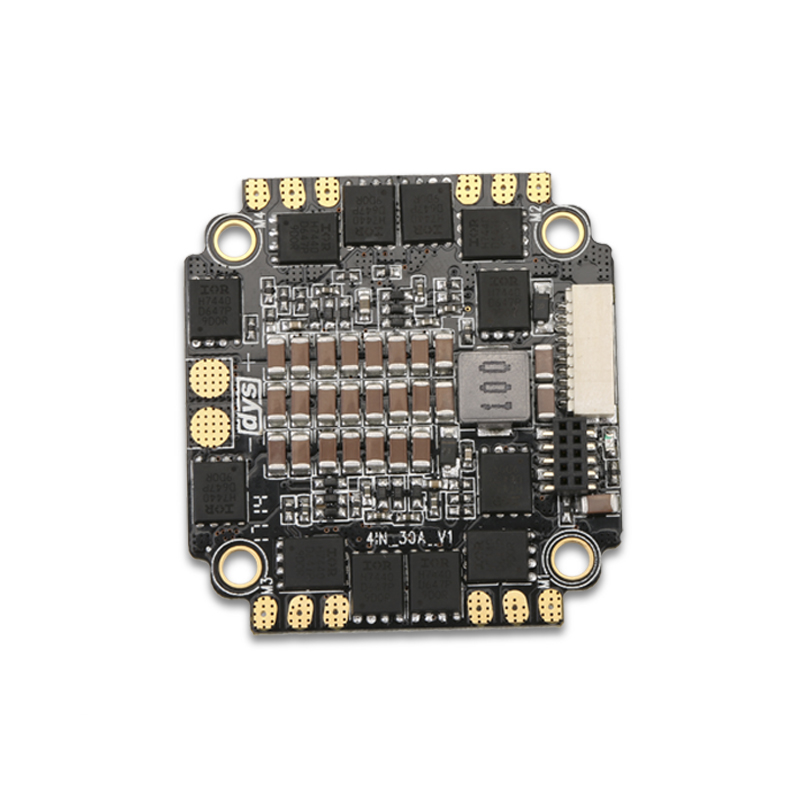

DYS F30A

Multirotors → FPV Racing drones → ESCs → 4-in-1 ESCs → 30A 4in1 → DYS F30A

in the store

Stock level: 11

DYS F30A 30amp 4 in 1 BLHeli_S ESC 2-6S BB2 BEC 5V/12V 3A Dshot600 Oneshot125 Oneshot42 Multishot

The DYS F30A 4-in-1 ESC is an ideal choice for an ESC platform where build space is at a premium! The F30A ESC supports DShot, OneShot, & MultiShot protocols.

Specifications

Continuous Current: 30A
Input Voltage: 2s-6s LiPo
BEC Output: 5V 3A, 12V/1A
Size (LxWxH): 43x40x8mm
Supported Firmware: BLHeli_S (Dshot150/300/600, Oneshot125/42, Multishot, PWM)
Weight: 21g (with cables) / 12.95g (exclude cable and connector)
Processor: EMF8BB21F16G SILABS

Includes

1x DYS F30A ESC
5x Nylon Standoffs
5x Nuts
5x Screws
1x Data Cables
1x Manual

DYS F30A 30amp 4 in 1 BLHeli_S ESC 2-6S BB2 BEC 5V/12V 3A Dshot600 Oneshot Multishot for RC Drone FPV Racing

Prices for DYS F30A in stores

Deals found: 20 (RCPapa¹, AliExpress¹)

Store	Stock level	Lot price	Shipping cost	Coupon / promocode	Pcs./lot	1pc price
RCPapa	Out of stock	$45			1	$45
AliExpress	Stock level: 11	$45	+ $2.11		1	$47
