Flysky FS-NV14 Nirvana 2.4G 14CH remote control + iA8X receiver

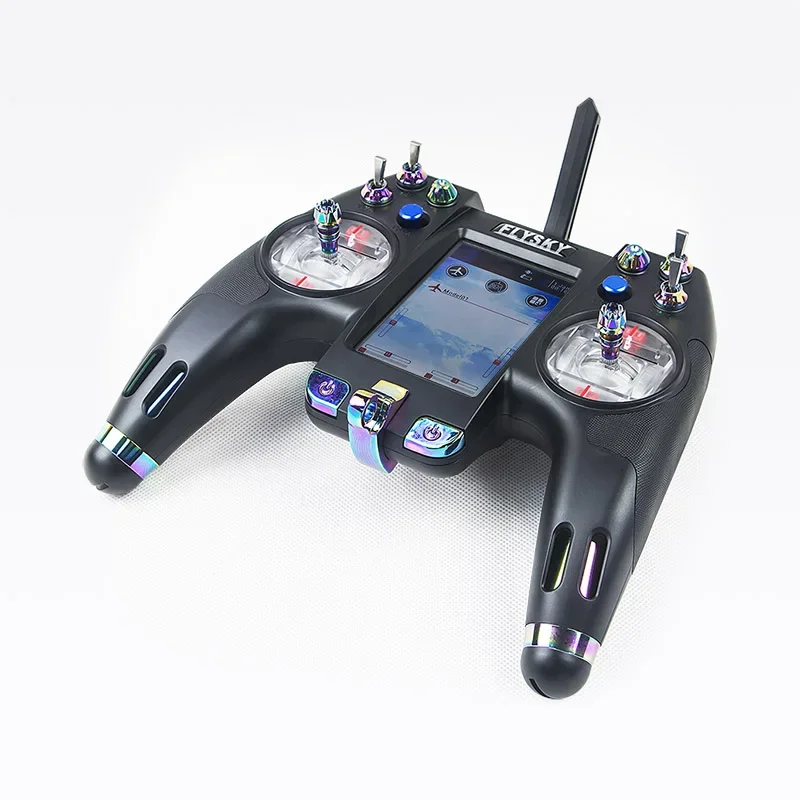

Flysky FS-NV14 2.4G 14CH Nirvana Transmitter with iA8X Receiver 3.5 Inch Display Open Source

The NV14 is an amazing product developed in conjunction with Underground FPV. Moving away from traditional transmitter designs the NV14 has a unique ergonomic design, open source firmware, ports for expandability, a color touch screen display, and most important of all, hall gimbals.

Specification:
Brand name: Flysky
Item name: FS-NV14
Channel: 14CH
2.4GHz System
Removable RF module + Internal AFHDS 2A
Frequency Range: 2.408-2.475GHz
Spread Spectrum Type: FHSS
Modulation Type: GFSK
Channel Bandwidth: 500KHz
Number of Bands: 135
RC Channel Resolution RC: 4096
ST035T Standard LCD Module 320 x 480 dots 3.5in LCD with capacitive touch
Open without interference from ground: More than 800m
Antenna Type: Internal and RF Module
Low Voltage Alarm: Less than 3.7V
Trainer port: Yes
Online Update: Yes
Charging Interface: USD
Data Output: Micro USB Port
Power Input: 2*18650 (Not included)
RF module slot (JR adapter optional): 1
Transmitter weight: 603g
Package Included: 1317g
Package Size: 24x22x10.5cm

Recommended Parts:
URUAV UR3 Handbag
Flysky X8B Receiver
Flysky IA8X Receiver
Finger Grip

Feature:
The NV14 is equipped with a 32-bit M4 core high-performance processor, 2Mb 180MHz, supplemented by industrial-grade 166MHz SDRAM.
USB HID output for use with simulator software
Haptic feedback motor
Up to 14 channels
Includes 2 receivers as standard, one small single and one larger dual antenna receiver.
Optional bluetooth module
Unique finger grip design further enhances hand feel;
Collapsible omnidirectional antenna;
3.5inch 320*480 color capacitive touch screen;
New lanyard eye design;
Detachable RF module bay;
Unique switch placement for ease of use without sacrificing performance;
Unique battery compartment design to house the dual 18650 batteries;
The combination of metal and plastic looks and feels great.
Optional remote control cover offering protection while still being small enough to fit into a backpack;

Package Included:
1 x FS-NV14 Transmitter
1 x X8B Receiver
1 x IA8X Receiver
1 x Dust cover
1 x Data line
1 x Audio cable
1 x RF module

Q&A
1. Why my transmitter firmware is incomplete? There are some functions can not be used.
   Please upgrade a new firmware. It is flysky-NV14-2.0.0. DOWNLOAD
   flysky-NV14-2.0.0 version has modified these functions.
   A. Realize the system clock function;
   B. Add ADC filter function;
   C. Add PPM reverse function;
   D. Add a QR code that can be linked to the manual.
