Hobbywing XRotor Micro F4 G2 + 45A 4in1 6S
Multirotors → FPV Racing drones → Flight controllers → F4 FCs → FC F4 + ESC 4in1 Stacks → Hobbywing XRotor Micro F4 G2 + 45A 4in1 6SRecommended stores↓ Another stores

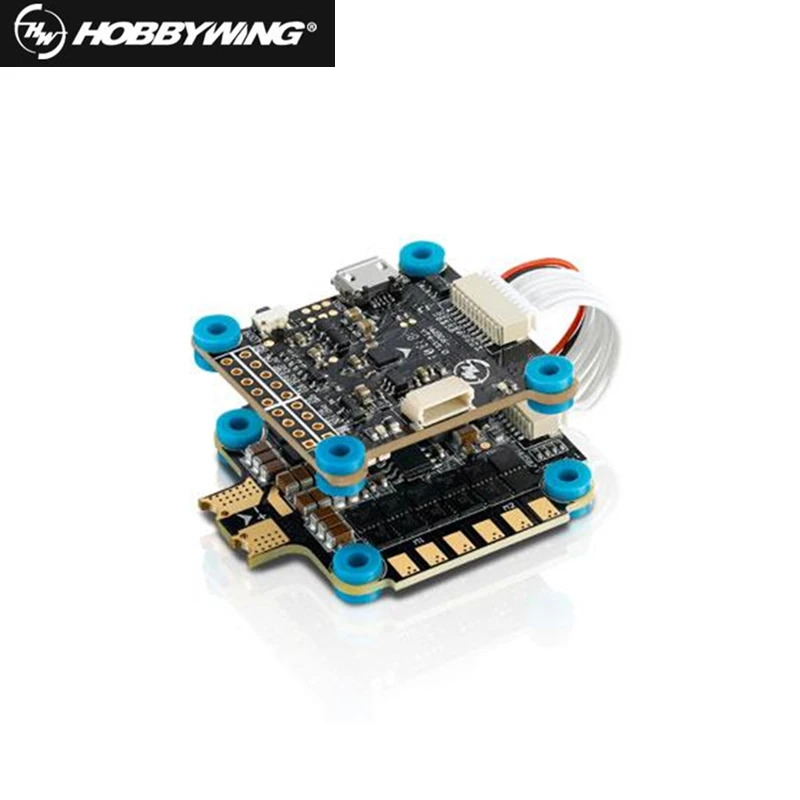

Hobbywing XRotor Micro OMNIBUS F4 G2 Flight Controller & 45A 4 In 1 Blheli_32 3-6S Brushless ESC
Specification:
OMNIBUS F4 G2 Flight Controller
Brand name: XRotor
Item name: F4 G2 Flight Controller
Firmware: OMNIBUSF4SD
FC Programming: Supported
Programming via: Betaflight/Cleanflight-configurator or Others
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc.
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: No
USB Port: MicroUSB
Size: 36*36mm
Weight: 6g
45A 4 In 1 Blheli_32 3-6S Brushless ESC
Cont./Peak Current: 45Ax4/60Ax4
Input Voltage: 3-6S Lipo
BEC output: [email protected] & [email protected]
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60 (w/ Wires Soldered on)
Output Connectors: No
Firmware: Hobbywing_XRotor_BLHeli_32 Version
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
Size: 32.7x18.4x6.2mm
Weight: 11.5g
Feature:
To download the installation package of BLHELI_32 Android APP please Click Here.
Package Included:
1 x F4 G2 Flight Controller
1 x 45A 4 In 1 Blheli_32 3-6S Brushless ESC
2 x XT60 Pigtail
1 x Hardware package with standoffs
1 x Connector set
1 x Capacitor
Specification:
OMNIBUS F4 G2 Flight Controller
Brand name: XRotor
Item name: F4 G2 Flight Controller
Firmware: OMNIBUSF4SD
FC Programming: Supported
Programming via: Betaflight/Cleanflight-configurator or Others
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc.
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: No
USB Port: MicroUSB
Size: 36*36mm
Weight: 6g
45A 4 In 1 Blheli_32 3-6S Brushless ESC
Cont./Peak Current: 45Ax4/60Ax4
Input Voltage: 3-6S Lipo
BEC output: [email protected] & [email protected]
Input Wires: Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires: No wires but solder tabs
Input Connectors: XT60 (w/ Wires Soldered on)
Output Connectors: No
Firmware: Hobbywing_XRotor_BLHeli_32 Version
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
Size: 32.7x18.4x6.2mm
Weight: 11.5g
Feature:
Super-high Running Frequency. The STM32F405 MCU which features the powerful computing capability and super-high running frequency allows the FC to run the PID and gyro with higher frequency.
ProShot1000, DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot Modes Supported. Besides the latest ProShot and Dshot 150/300/600/1200 mode, the FC also supports the regular PWM mode, Oneshot125 mode, Oneshot42 mode and Multishot mode.
TF-card Insertion Supported. Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
Onboard OSD Microchip. Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
BetaFlight/Cleanflight Firmware Ready. The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight software is more applicable to FPV flying & racing.
To download the installation package of BLHELI_32 Android APP please Click Here.
Package Included:
1 x F4 G2 Flight Controller
1 x 45A 4 In 1 Blheli_32 3-6S Brushless ESC
2 x XT60 Pigtail
1 x Hardware package with standoffs
1 x Connector set
1 x Capacitor
