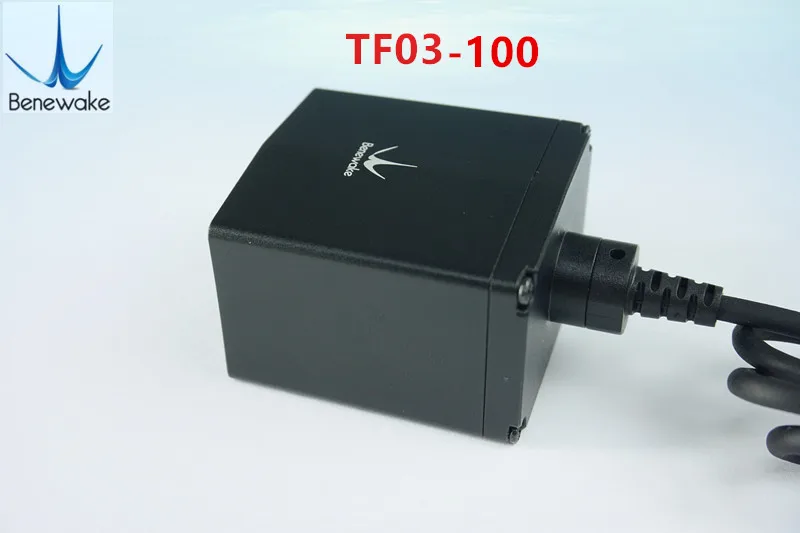

Benewake TF03 LiDAR 0.1-180m UART

Multirotors → LIDARs & Optic Flow → Benewake TF03 LiDAR 0.1-180m UART

Benewake TF03 LiDAR 0.1-180M Long-Distance Single-Point Laser Radar Sensor for RC Drone Obstacle Avoidance and Altitude Hold Mode

TF03, as a single-point long distance LiDAR in accordance with the industrial level, mainly targets at the RC Drone Obstacle Avoidance and Altitude Hold Mode , intelligent transportation system, industrial UAV, automotive industry,industry and other applications.

To maximize different requirements in different applications and scenarios, TF03 can be compatible with a variety of communication interfaces, featuring IP67 high-intensity bodywork and the measurement frequency as high as 10KHz. It not only has powerful performance and rich interfaces, but also is small in volume, so that it could be integrated more easily in applications. In addition, TF03 contains a compensation algorithm targeting outdoor highlight environment, so that it could still work normally in highlight environment. Besides, it also has a variety of measurement models and parameters for custom configurations, so as to meet the ranging needs of different customers.

Specification:
Brand name: Benewake
Item name: TF03 Single-Point Long-Distance LiDAR
Version: UART
Range: 0.1-180m
Frame rate: 1Hz-1000Hz adjustable(default 100Hz)
Detection angle: 0.5°
Size: 44mm*43mm*32mm(L*W*H)

Weight: 77g

Package Included:
1 x TF03 Single-Point Long-Distance LiDAR
