Skystars F722HD 2 Pro

SKYSTARS F722HD-WIFI Flight Controller & KO4545A ESC Description:

Specifications:

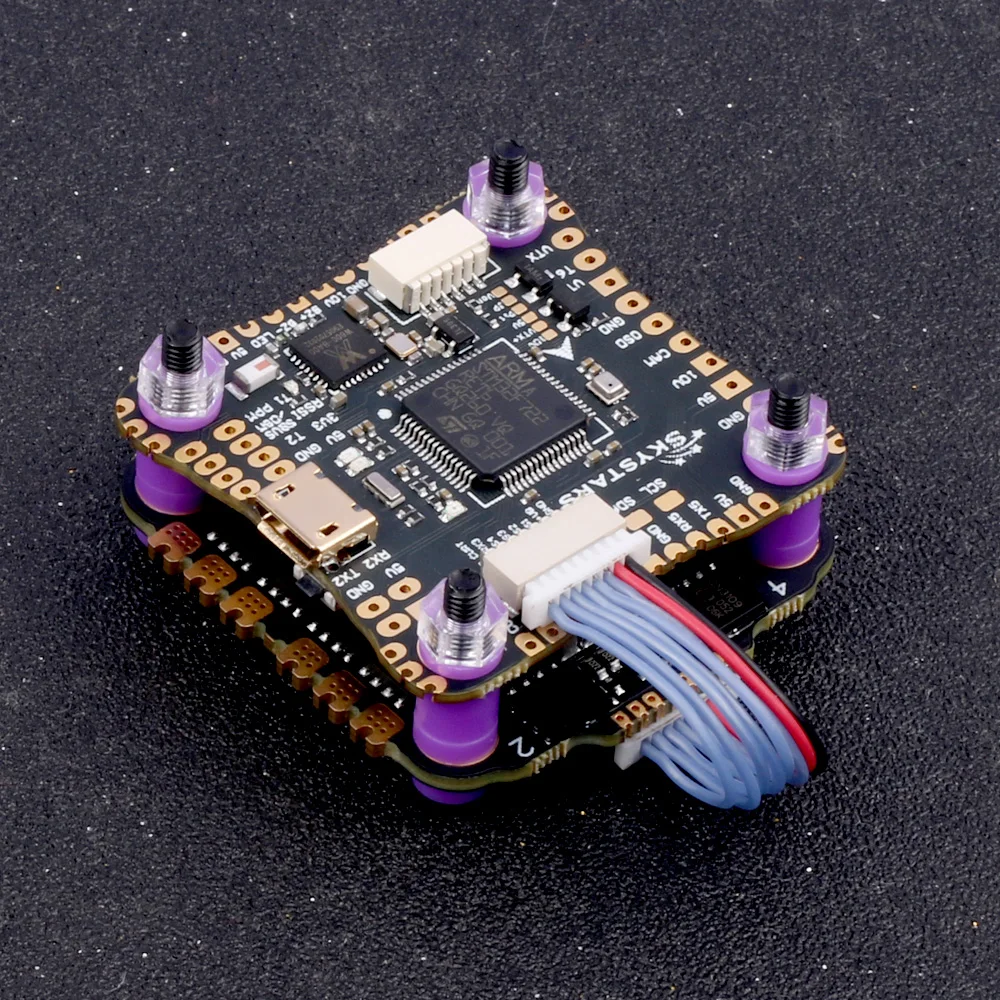

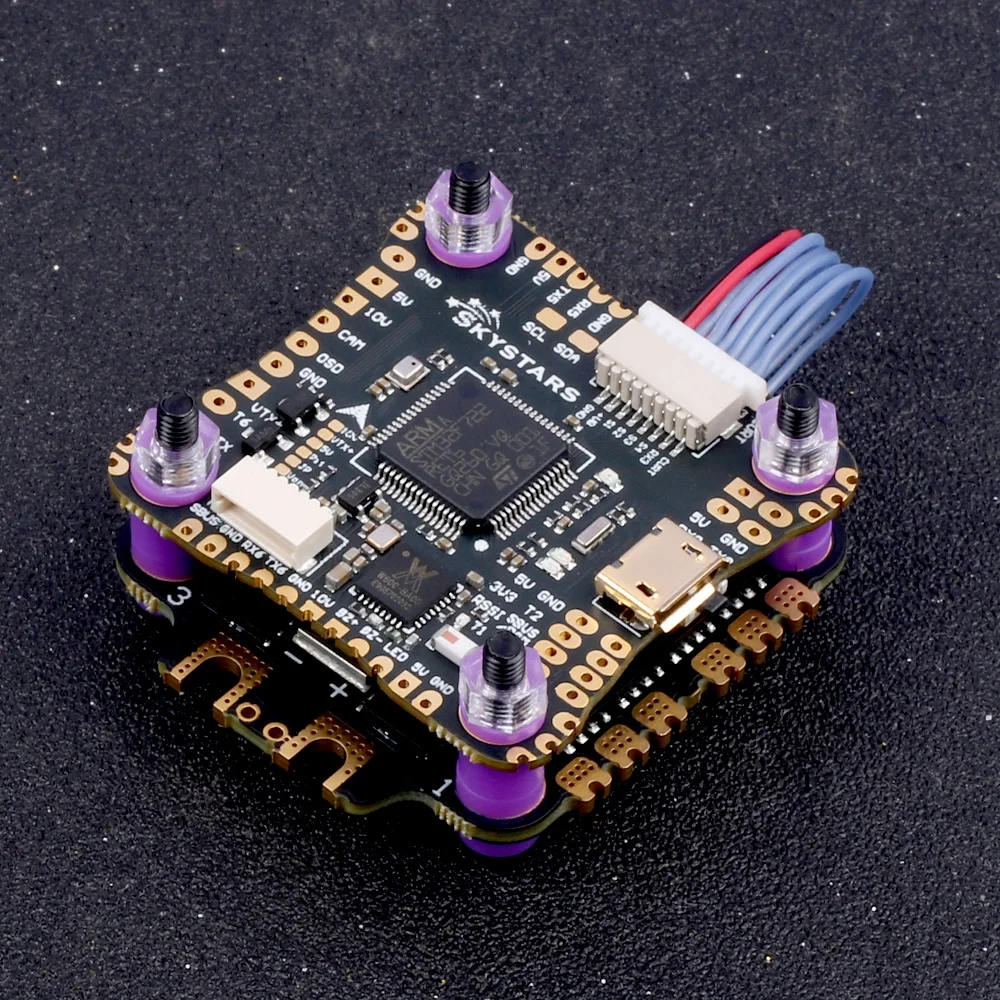

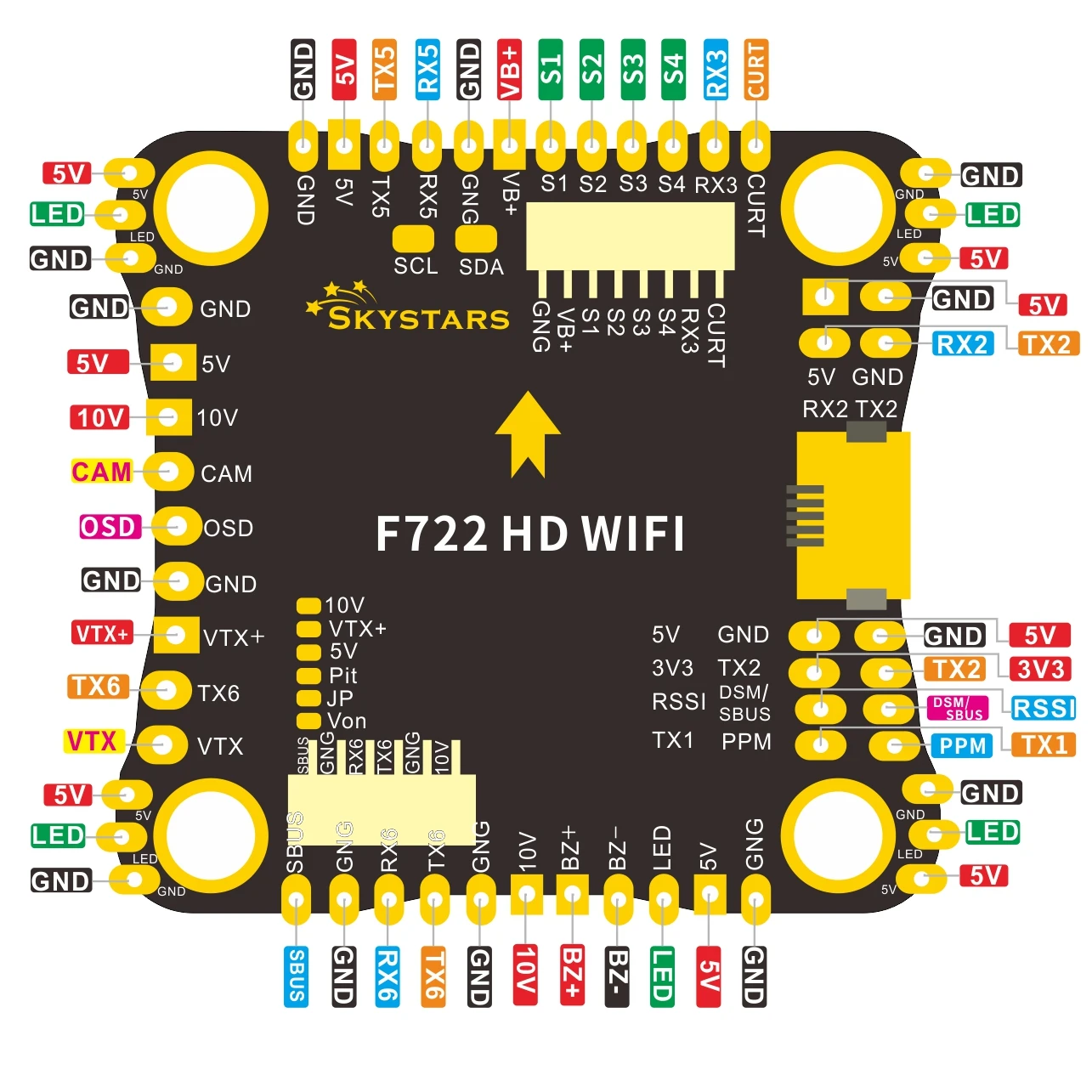

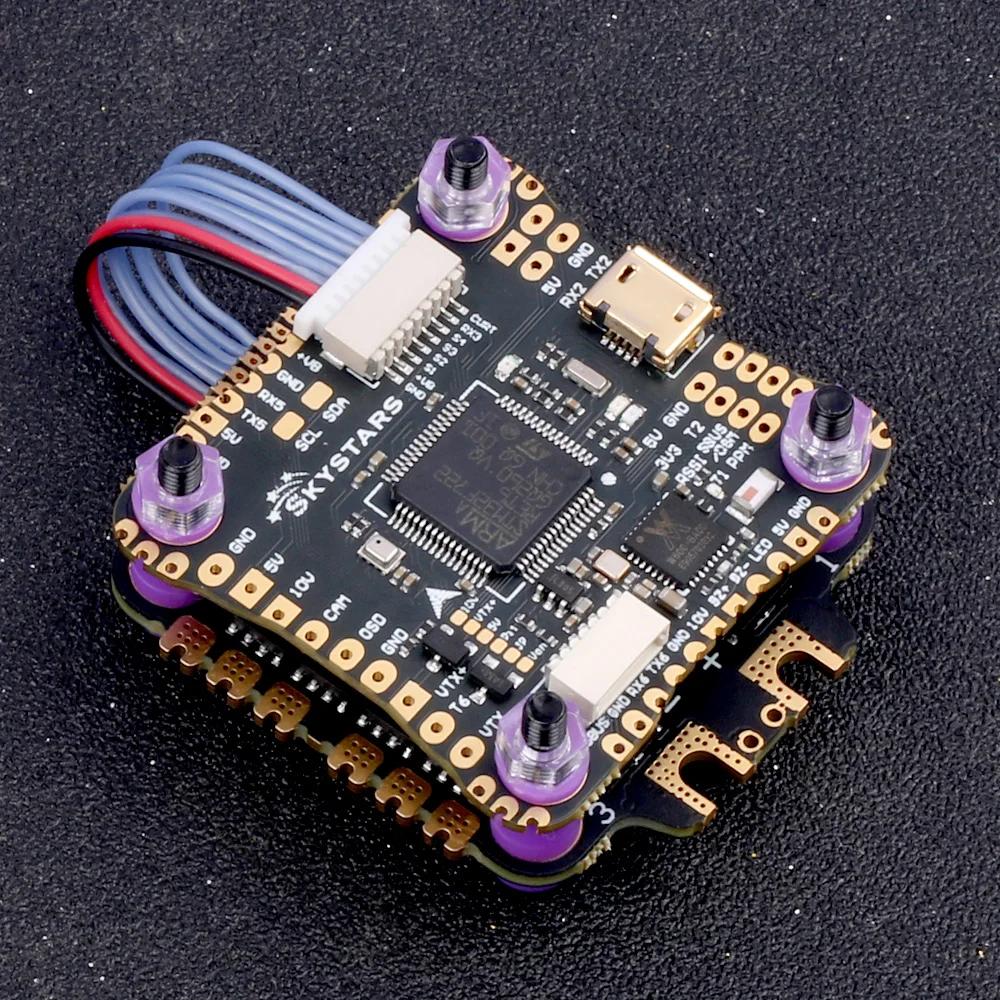

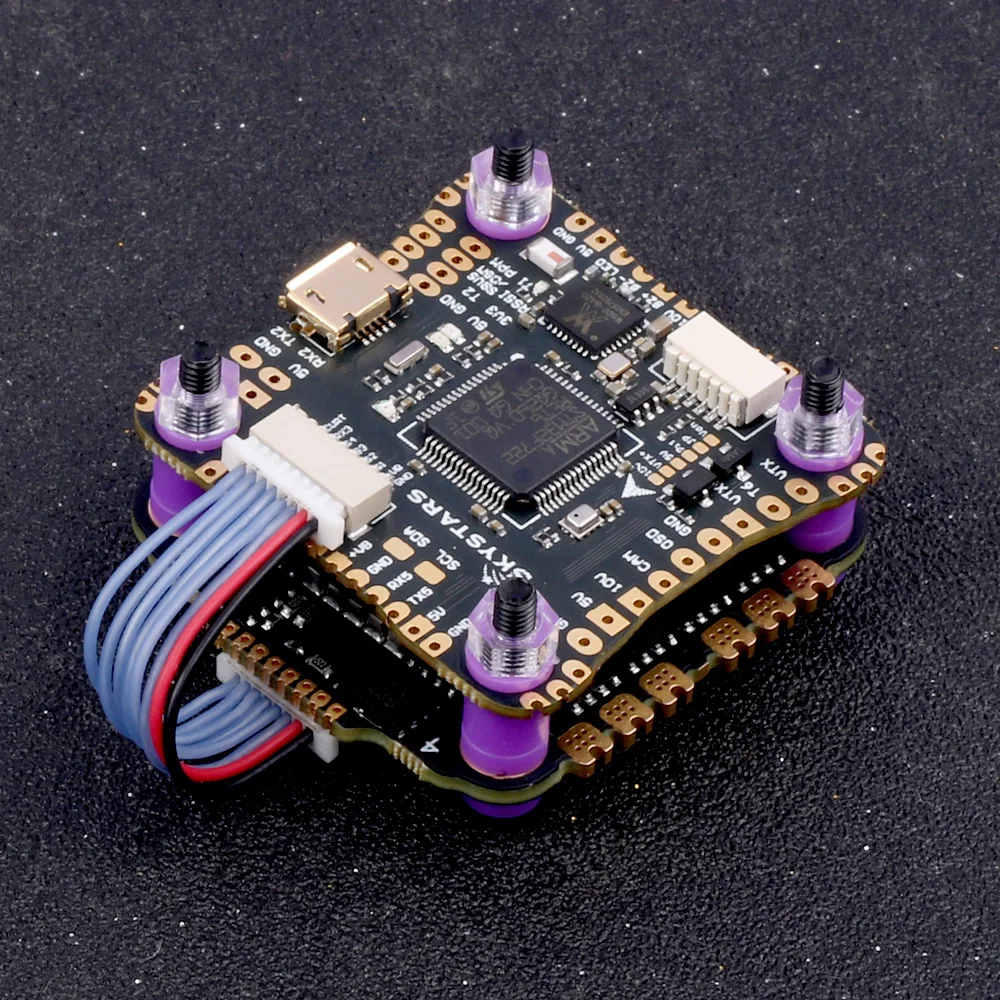

SKYSTARS F722HD-WIFI Flight Controller

• MCU: STM32F722RGT6 216MHz32BIT

• IMU: MPU6000 (SPI)

•Barometer: Yes

•OSD: Betaflight OSD & DJI HD OSD (UART6)

• 6 hardware UARTS (UART1,2,3,4,5,6,)

• Receiver: TBS/PPM/SBUS/IBUS/DSM

• ESC Telemetry: RX3

• Blackbox: 8MB

•ESC Soft: Dshot300/600/1200

•LED indicator: Blue for FC Status,Red 5V

•WIFI: SpeedyBee APP target name SKYSTARS F7

• Input voltage: 3-6S LiPo(11.1V~25V)

•LED Controller: 4 corner LED interface to support BF led

• Pit mode:YES

• RSSI Pad: YES

• Buzzer Pad: YES

• CURR Pad: YES

•Smartaudio: YES

•BEC5V 2.5A & 10V 2.5A(Max 3A)

• Firmware: SKYSTARS F7HDPRO

• Dimensions: 38.5x40x6.2mm

• Mounting Holes: Standard 30.5mm square to center of holes

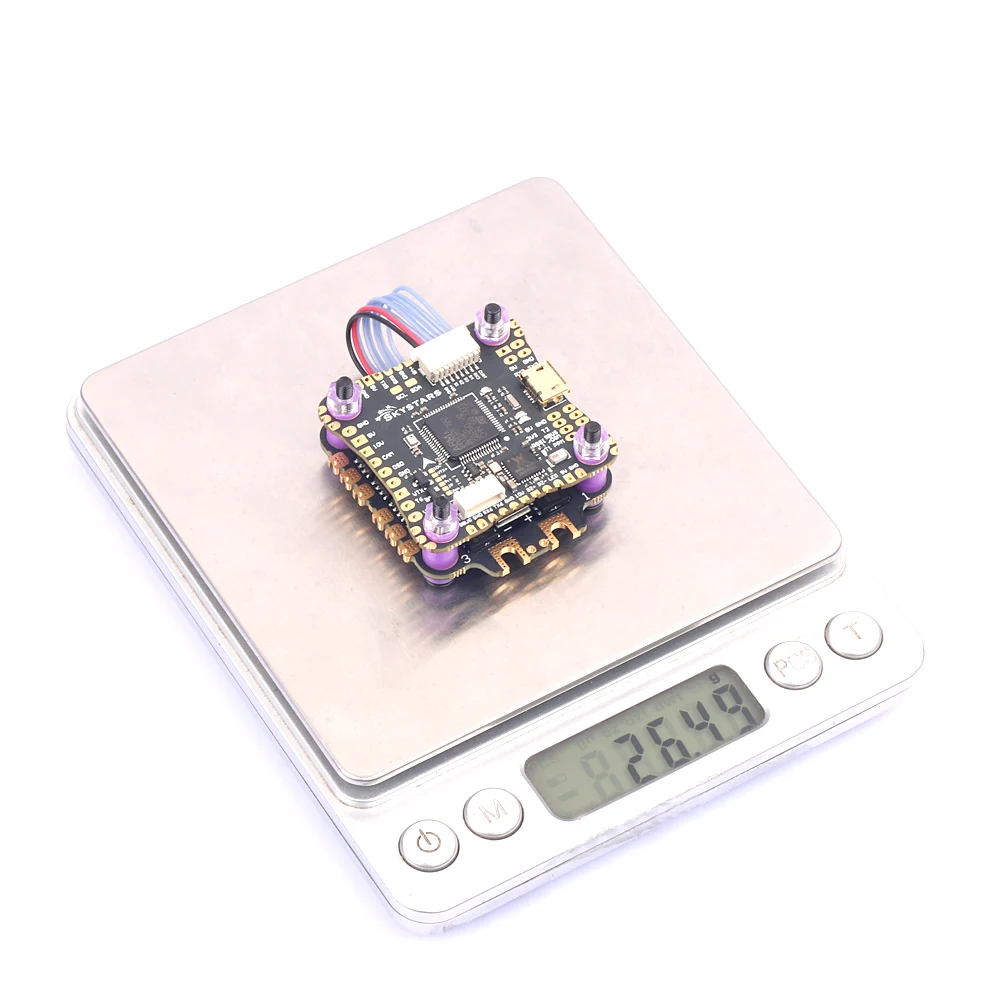

• Weight: 6.6g

Note:Since STM32F722 heat large , please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.

Skystars KO45 4in1 Blheli_32 ESC

•Input voltage: 3-6S LiPo(11.1V~25V)

•Con.Current: 45A

•Peak Current: 55A≥ 5S

•Firmware: BLHeli_32

•Support : Dshot 300/600/1200

•Mounting hole : 30.5mm/M3

•BEC: No

•Weight: 12g

Package Included:

1 x SKYSTARS F722HD-WIFI Flight Controller

1 x KM45 45A Brushless 4IN1 ESC

1 X8pin sh1.0 *1

1 X Rubycon Hight Frequency 560uF/35V

1 x Amass XT60 and wire

4 x Silica gel shock absorber

4 x YFS 12.9 M3X30 Screw

4 x M3 nut
