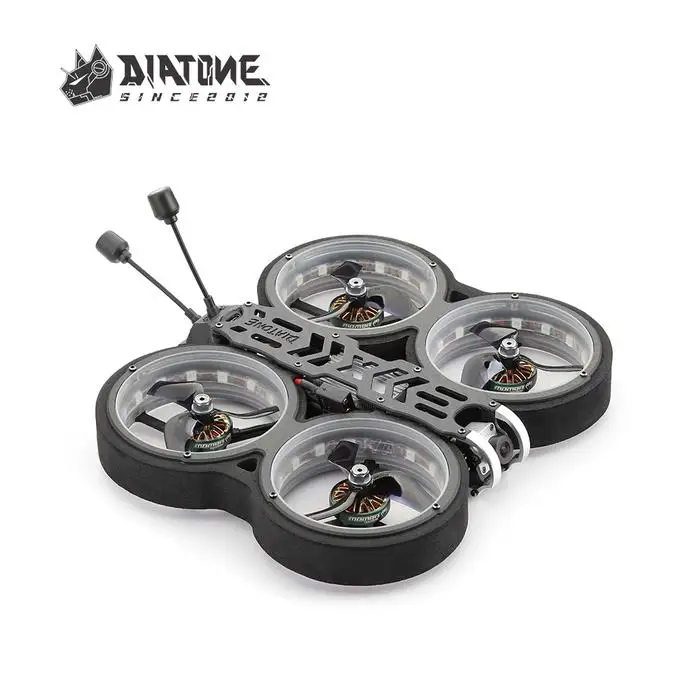

Diatone Taycan MX C3.1 HD 3" 6S DJI Air Unit PNP

FPV → HD Video Links → DJI FPV Digital HD → Drones with DJI Digital HD FPV System → 3" Drones with DJI Digital HD FPV System → Diatone Taycan MX C3.1 HD 3" 6S DJI Air Unit PNP
Diatone Taycan MX C3.1 HD 3

Specification:

Brand: Diatone
Model: Taycan C3.1 (HD)
Item Name: 157.5mm F4 6S Digital HD FPV Racing Drone
Wheelbase: 157.5mm
Weight: around 357.8g
RGB LED Strap
Taycan MXC3.1 Frame

Wheelbase: 157.5mm
Prop Size: recommend 3 inch
FC Mounting: Support 20×20mm（M2）/25.5×25.5mm/（M2）/30.5×30.5mm（M3）
Motor Mounting: 16mm(M3)
Camera Spacing: 19mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2.5mm
Arm Plate Thickness: 2.5mm
bai Aluminum alloy: 7075
Carbon Fiber: T300 3K

Weight: 158g

MAMBA AIO F411 35A Flight Controller AIO ESC

( 20MM)

MCU: 100MHz STM32F411CEU6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blackbox: No
Uarts: 2 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Size:42×33×6mm
Mouting Hole: 20×20,M2


ESC:

Con. Current: 35A×4
Burst Current: 40A (10S)
Target: BLHeli_S CH40
SOFT: Dshot300/600

MAMBA TOKA 2203.5 2650 KV Motor

slots/poles:12N14P

Stator Diamter: 22mm
Stator Height: 3.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 15.59A
ldle Current：10V/0.3~1.0A
Maximum Power: 380.8W
Internal Resistance: 232mΩ

Overall Dimension:Φ28.9×29.4mm
prop mounting shaft diameter: 5mm
Installation hole position:16×16mm，M3
Bearing: 9*4*4

DJI Air Unit Digital SystemVTX: DJI Air ; Camera: DJI Camera
MAMBA ULTRA RHCP Antenna
Frequency range (MHz): 5500-6000
Polarization: RHCP
Gain (dBi): 2.5
VSWR (5800MHZ): ≤1.5

Recommend battery:(not included)

6S 850-1050mAh Lipo

Package Included:

1x Taycan C3.1 FPV Racing Drone ( HD)

1x Buzzer

2x Battery belt

1x M2 screw accessory kit

1x M3 screw accessory kit

1x 20mm PC spacer
