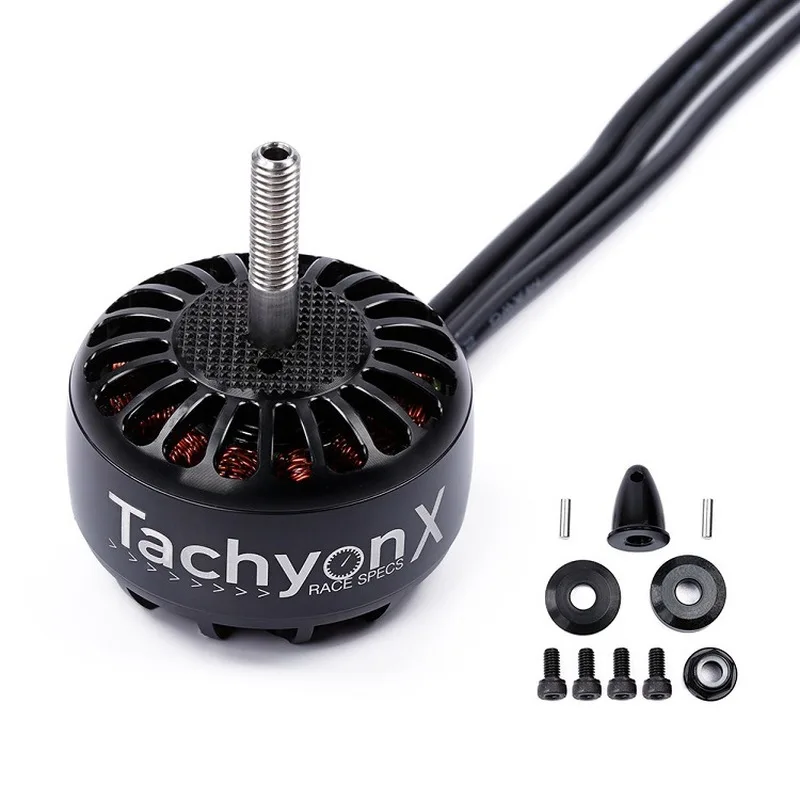

iFlight TachyonX T4214 X-Class 400KV

iFlight Tachyon T4214 X-Class 3-6S 400KV 660KV Brushless Motor for RC Drone FPV Racing Multirotors

Description:
The iFlight Tachyon T4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the Tachyon series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Paci fic copper wires in combination with N45SH magnets & very small air ga p. NMB bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!

Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) Φ6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on T4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.

All in all, the new iFlight Tachyon T4214 is definitely the first choice for X-Class racing!

Specification:
Brand name: iFlight
Item name: Tachyon T4214 X-Class brushless motor
KV: 400KV/660KV
Structure: 12N14P
Stator diameter: 42mm
Stator length: 14mm
Outer Shaft length and diameter: 26.5mm M6
Motor size: φ50*33mm
Magnet: N45SH
Bearing: NMB
Cable: 14AWG,800mm
Weight: 270.1g w/ cables

Features:
-Specially designed for X-Class Racing
-Oxidation-Color 7075 T6 milled aluminum Bell and Base
-420 stainless steel
-Japanese Kawasaki 1200 Iron Core
-Solid Paci fic 220℃ Heat-Resistant Copper Wire & Winding
-Long life Japanese EZO bearings
-N45SH High-temperature tegular magnets, small air ga p
-Electromagnetically matched magnets and stator
-Optimized heat dissipation structure design, 20% heat reduced
-Max 7.9kg thrust of 660kv
-50%-90% thrust max efficiency and thrust
-Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
-Hex bolt shaft set screw for easy maintenance
-Dynamically balanced
-Motor wire protected

Package Included:
1x Tachyon T4214 X-Class racing motor
1x set screws & nut
