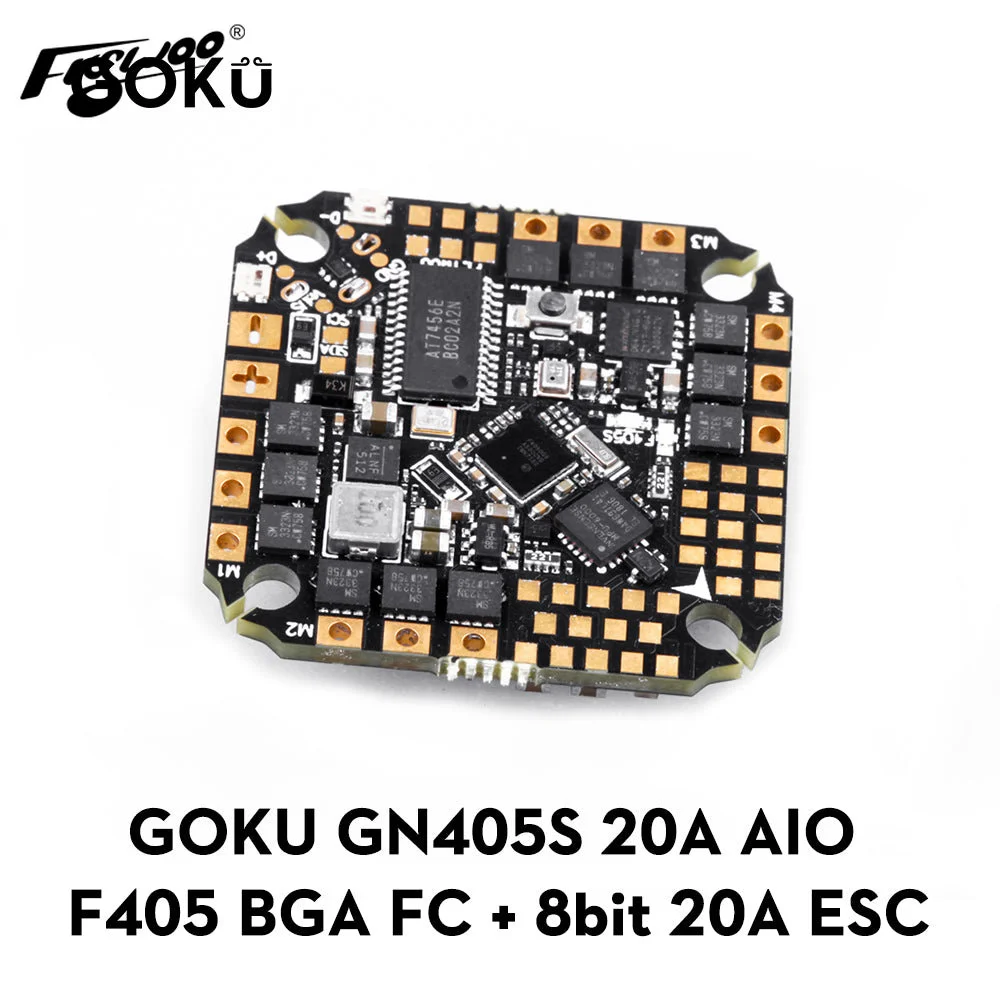

Flywoo Goku GN405S MPU6000 AIO 20A

FLYWOO new top GOKU series AIO are finally here! GOKU GN405 20A FC is an economical and durable all-in-one AIO , which can meet most your FPV needs.
Use powerful F405 chip , integrate 5V BEC, barometer, black box, WS2812LED, support 6 complete hardware serial ports, I2C and other functions are all open.

Features

• F405 BGA MCU
• Barometer
• 5V BEC
• Black Box
• 20A 8Bit ESC
• 6 UARTS
• current sensor
• LED

Specifications

• MCU: STM32F405 BGA 8bit processor

• IMU: MPU6000 (SPI)

• Barometer: BMP280

• Onboard LED：WS2812*4

• 6 hardware UARTS (UART1,2,3,4,5,6)

• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

• PPM and PWM receivers are not supported.

• Onbord 8Mbytes for Blackbox logging

• 5V Power Out: 2.0A max

• 3.3V Power Out: 0.5A max

• Dimensions: 33.5x33.5mm
  Mounting Holes: Standard 25.5/26.5mm square to center of holes
  Weight: 8.5g


• Support BLHELI_S
  Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-6S Lipo
• Continuous Current: 20A
• Firmware: BLHELI_S

Q&A :
1、 Betaflight Firmware target: FLYWOOF405S_AIO
2、INAV Firmware target: FLYWOOF405S_AIO
3、GOKU GN405S 20A AIO Wiring Diagram : ( LINK )
