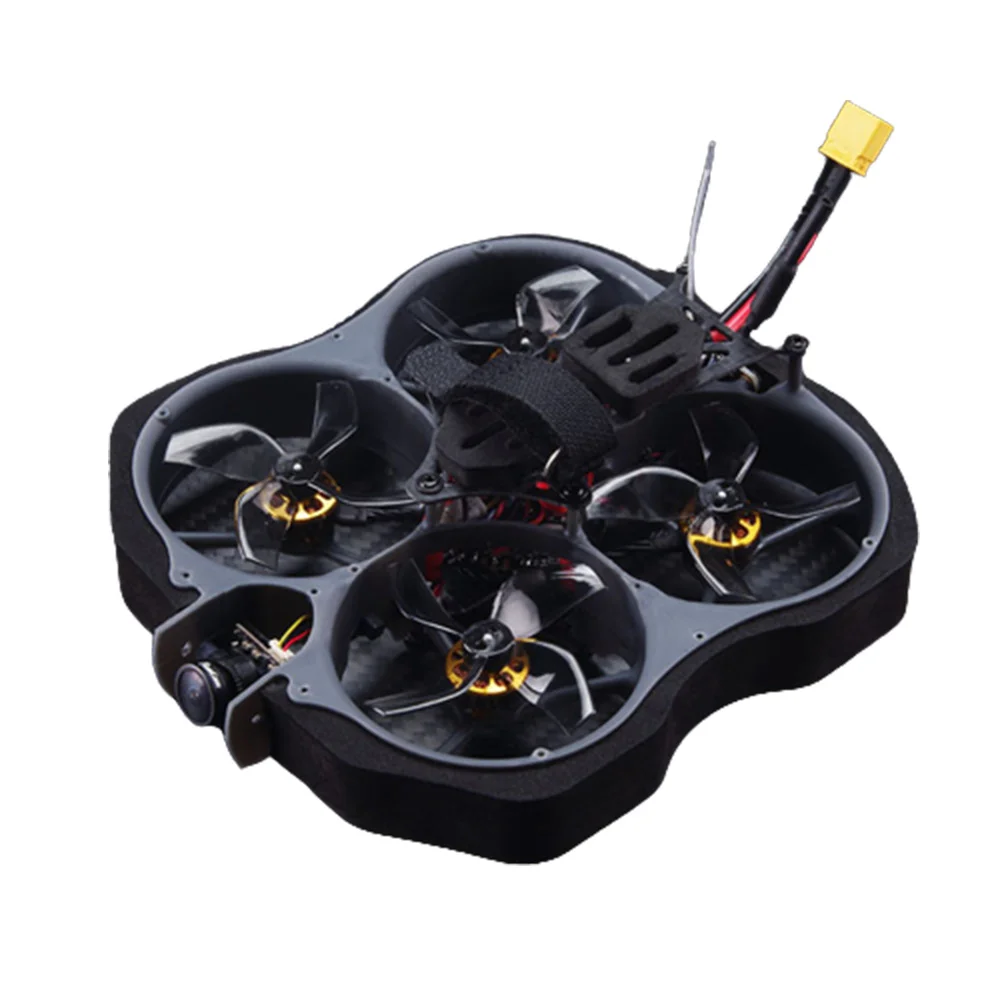

Geelang LIGO78X PRO V2 2" 3S Runcam Nano4 PNP

Multirotors → FPV Racing drones → RTF/ARF/PNF → 2" Quads → Geelang LIGO78X PRO V2 2" 3S Runcam Nano4 PNP

New upgrade :

1. Integrated injection molding material, beautiful, solid and reliable, reasonable structure, lighter.

2. 2-3s flight control system with sh50a has its own black box.

3. Using runcam latest nano4 FPV competition camera, you can see more clearly and have stronger dark vision ability.

4. The upgrade adopts 400MW VTX image transmission, which is more distance and more stable.

5. Support 360go1 and GO2 thumb motion camera installation

6. The empty weight has been reduced from 80g in the first generation to 65g at present.

7. The new design of the aerodynamic layout makes the take-off downforce greater. It's easier to circle in the air.

8. Adopting 2020 four blade ducted propeller has higher efficiency and more stable hovering stability at low torsion.

9. The newly added propeller protector can effectively protect the propeller and avoid accidents as much as possible

Description:

Brand: GEELANG

Model: LIGO78X PRO V2

Item Name: 78mm 3S Ducted CineWHOOP drone BNF

Wheelbase: 78mm

size: 119x132x23mm（Camera mount not included）

Weight: 65g(Camera mount not included)

Recommend:

Motor	Motor Mode: GL1202 8700KV Stator specifications: D12xH4 0.2mm Configu-ration: 9N12P Stator Diamter: 12mm Stator Length: 2mm Shaft Diameter: Φ1.5mm WindingSpecifications: 180℃ Class Multiple oxygen-free copper Weight(g): 3.4g No.of Cells(Lipo): 2S-3S
Flight controller	Name: SH50AF4 MATEKF411 MCU: STM32F411CEU6 (100MHZ, 512K flash memory) Sensor: MPU-6000 (SPI connection) Shop: 8MB black box onboard Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7-12.6V) Built-in 5A (each) Blheli_S 4 in 1 ESC Dshot600 ready Built-in Betaflight OSD (SPI control) Built-in 5V 2A BEC Built-in voltage detection
Onboard 4in1 ESC	Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current: 5A continuous peak 7A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.HEX Default protocol: DSHOT600 Power input: XT30
Frsky NON-EU receiver Version	SBUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m Operating Voltage Range: 3.7~10V Operating Current: 30mA @5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware upgrade-able, can be upgrade to EU-LBT with RSSI
TBS CRSF NANO receiver version	CRSF Protocol , Official TBS transmitter compatible Protocol: CRSF Channels: 8ch Failsafe support Support receiver hardware rssi function No ground interference ( Transmitter and receiver 1 m from the ground): >500m
PNP No receiver version	Support any bus and other protocols, users can install by themselves
5.8G VTX	Power switching: third gear(25MW 、 100MW 、200MW、400MW) Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels Weight: 2.0g
camera	RUNCAM NANO4 1/3 COMS sensor Horizontal: 800TVL 800x600 TV system: ntsc/pal 4:3 Power Input: DC 3.3-5.5v Colorful：0.1Lux(F1.2) Signal to noise ratio：> 50dB Weight:2.9g
propeller	Gemfan 2020 Material:PC Weight:0.91g Props Dia:50.3mm Center Thickness:5mm Center Hole Dia:1.5mm 3 holes
Lipo Battery	Capacity: 450mah Voltage: 11.1V Connector: xt30

Package Included:

1x Second generation injection molding frame

2x 360go1 and go 2 thumb camera bracket

4x GL1202 KV8700 Motor

1x 2020 propeller(4cw+4ccw)

1x 5.8G GVTX400 (25-400MW)

1x RGB LED

1x RUNCAM NANO4 camera

1x Screwdriver removal tool

2x Battery magic strap

2x Propeller protector

1x 3s 450mah 75C lihv

1x Bag
