Happymodel Crux3 1S NLR 135mm BNF ELRS 2G4 w/o GPS

Happymodel Crux3NLR 115mm Nano Long Range FPV quadcopter
ETA:Around 20th August

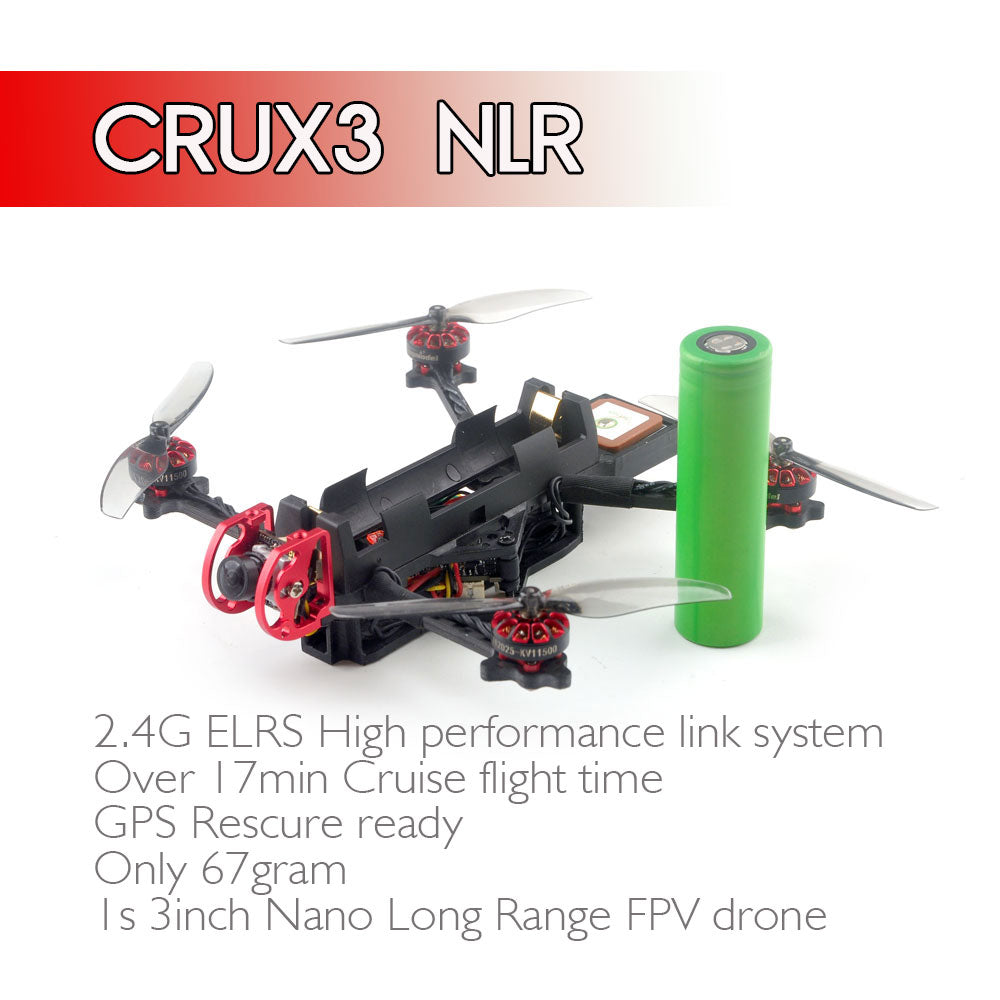

The Crux3NLR Nano LR is a 18650 style Nano Long Range FPV quadcopter BNF . Very simple and convenience, just plug a single 18650 battery and then bind to fly. Crux3 NLR come with ELRSF4 2G4 flight controller which means it built-in ExpressLRS high performance radio link which made you get a better range and stable link.

The Crux3 NLR also comes with GPS and buzzer , so that would be much better for a long range FPV flight. Although equipped with so many devices, the weight is only 68 grams, so we could get more flight time.

Features:
New AIO 5in1 ELRSF4 2G4 flight controller
CADDX ANT Camera
New 1202.5 brushless motor
18650 Single battery(not include)
High performance radio link
Cruise time around 17 min with a single 18650 battery

Notice: Battery not include, we recommend use Sony 18650 VTC6 battery for better performance

Specifications：
Brand Name:Happymodel
Item Name:Crux3 NLR
Wheelbase:115mm
Size:97mmx97mmx35mm(without propellers)
Weight: 68g(without battery)
Receiver option:
Built-in SPI ExpressLRS 2.4GHz receiver

Motor:
Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S

Propellers
Gemfan 75mm
Center Thickness:5mm
Prop Diameter:75mm
Center Hole diameter:1.5mm
Pitch:0.9in

Flight Controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver
Built-in 5V 1A BECFlight controller
firmware target: CRAZYBEEF4SX1280

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT300

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option:25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency:2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol to flight controller: CRSF
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module

Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Happymodel Mini M8N GPS(Optional)
Chip Model: Mini M8N GPS
Features: GPS+SBAS or GPS+GLONASS+SBAS
Position Accuracy: 2.0 m CEP
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Update rate: 5HZ Default, up to 10HZ
Baudrate: 57600
Size: 20mm*20m*6mm
Weight: 6g
Cold start waiting time: 3~5minutes
Warm start waiting time: 0.5~1.5minutes

Caddx ANT 1200tvl camera
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

Package Included:
1*Crux3 NLR Frame
1*ELRSF4 2G4 AIO 5-in-1 flight controller
1*Happymodel Mini M8N GPS(No GPS version not include)
1*Buzzer
4*Happymodel EX1202.5 KV11500 brushless motor
1*Gemfan 75mm bi-blade Propellers(4cw+4ccw)
1*Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1*Onboard 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
1*Screw Driver
1*Propeller disassemble tool
