Tinywhoop Flight Controllers

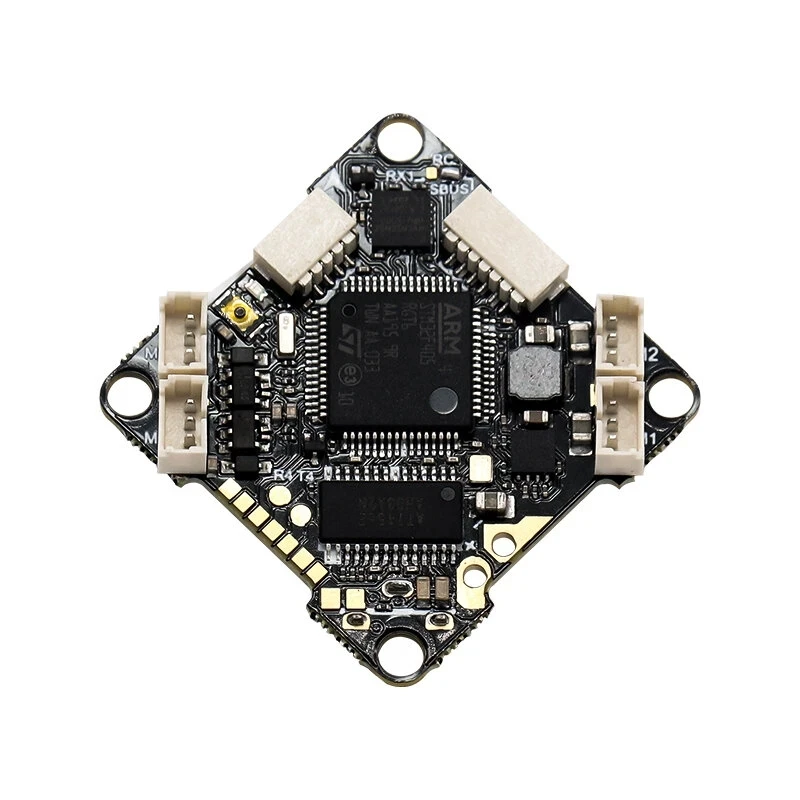

URUAV F405 AIO 4S 20A
Multirotors → Tinywhoops → Tinywhoop Flight Controllers → Brushless Whoop FC → URUAV F405 AIO 4S 20A
Introduction:
| Flight Controller | ESC |
| 168Mhz STM32F405 main control chip, can run higher speed PID | Using high-performance EFM8BB21F16G microprocessor, running frequency up to 48 MHZ |
| Spi Bus MPU6000 Gyroscope, bring response time and excellent shock absorption effect | 6-layer High Tg, copper thick PCB board, greatly reduce the heat, higher efficiency |
| Onboard OSD chip, can use BetaFlight parameter adjustment software to adjust parameters | Using Blheli Open source program, you can upgrade the firmware or change the electrical adjustment parameters through the throttle signal line to support all functions of Blheli |
| UART5 + SBUS: UART1; UART1: With Receiver Socket, can plug into all kinds of receiver module | DShot150/300/600 digital throttle mode and general PWM, OneShot125, OneShot42, MultShot throttle mode |
| LED interface; Buzzer interface | |
| Analog camera, analog graphic interface (UART4) | |
| Onboard 5V Bec, provide a cleaner image display effect for graphic transmission | |
| Reasonable layout, according to the majority of flying hand installation requirements, the function of the pad together to avoid jumper |
Description:
Brand:URUAV
Iten Name: F405 AIO 20A Flight Controller
Mounting hole: 26*26mm
Size: 30*30mm
Weight: 6.2g
Flight Controller:
Firmware version: GEPR/GEPRCF405
5V: 5V stabilized power supply output interface
Maximum Current 3A
TX4: Picture Transfer Reference Pin (selected according to flight control firmware version)
Cam: CAMERA INPUT INTERFACE
VTX: Picture transfer interface
LEDS: RGB Lamp Band interface
Buzzer: Connect buzzer negative pole, positive Connection 5V
SUBS G RX5 TX5 GND VBAT: DJI access socket
Recommend Lipo: 2-4S Lipo
Ammeter:Yes
ESC:
Continuous Current: 20A
Transient Current (10S) : 22A
Cell Number: 2-4S
Package Included:
1* F405 AIO Flight Controller
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
1 * Cable Pigtail (XT30)
4 * Anti-vibration rubber dampers
