Diatone Mamba APP F405 MK1 + F50_BLS 50A 3-6S ESC
Multirotors → FPV Racing drones → Flight controllers → F4 FCs → FC F4 + ESC 4in1 Stacks → Diatone Mamba APP F405 MK1 + F50_BLS 50A 3-6S ESC
| MCU: | F405 |
| Gyro: | MPU6000 |
| Barometer: | - |
| OSD: | + |
| Power : | 3-6S |
| 3.3V BEC: | 0.5A |
| 5V BEC: | 3A |
| 9V/10V BEC: | 3A |
| ESC type: | stack |
| ESC: | 4x50A |
| BLHeli: | BLHeli_S |
| Receiver: | - |
| RSSI: | + |
| VTX: | - |
| UART Rx: | 6 |
| UART Tx: | 6 |
| Buzzer pad: | + |
| LED pad: | + |
| IR/INR pad: | + |
| Blackbox: | 16Mb |
| USB: | Type C |
| DJI compatible: | - |
| Wifi: | SpeedyBee APP |
| Size: | 38x41.5x7.5mm |
| Mount Holes: | 30.5x30.5mm |
FC Specifications
- MAMBA APP F405MK1
- MCU: 168MHz STM32F405RGT6
- GYRO: MPU6000
- Barometer: No
- OSD: Yes
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller:BF LED/MB LED（4 Set 2812 LED）
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- WIFI: SpeedyBee APP
- Input: 3~6S Lipo (12.6~25.2V)
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 3A (System Power)&
- 5V 3A(LED)& 9V 3A
- MOUNTING: 30.5mm, M3
ESC Specifications

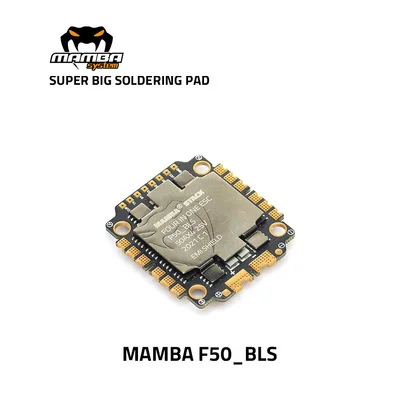

- MAMBA F50_BLS
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- CONTINUE CURRENT:50A×4
- BURST CURRENT:60A (10S)
- BEC: No
- Target：BLHeli_S CH40
- SOFT: Dshot300/600
- TVS Protection: Yes
- MOUNTING: 30.5mm/M3
Supply :
- High-Frequency 470uF/35V ×1
- 8pin sh1.0 ×2
- 12AWG 100mm ×2
- AMASS Original XT60
