Diatone Mamba DJI F722 MK2

Multirotors → FPV Racing drones → Flight controllers → F7 FCs → Diatone Mamba DJI F722 MK2
Diatone Mamba DJI F722 MK2

The Diatone Mamba DJI F722 MK2 Flight Controller is a powerful FC that is suitable with the DJI FPV System and is equipped with 216MHz STM32F722RET6 MCU, 6 UARTS, MPU6000, Dshot300/600/1200, BEC, and other cool features!

Note: To prevent the FC from overheating due to the STM32F722, please allow at least 5mm space on both sides of the FC (with nothing covered) to allow good air circulation.

Specifications

  • MCU: 216MHz STM32F722RET6
  • GYRO: MPU6000
  • Barometer: Yes
  • OSD: Yes
  • Blackbox: 16M Flash Memory
  • UARTS: 6Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A & （DJI）9V 3A
  • Mounting 30.5mm,M3

Diagram

Includes

  • 1 x Diatone Mamba DJI F722 MK2 Flight Controller
Share

Prices for Diatone Mamba DJI F722 MK2 in stores

Deals found: 10 (NewBeeDrone1, Banggood1)

StoreStock levelLot priceShipping costCoupon / promocodePcs./lot1pc price
NewBeeDroneStock level: 10$801$80
BanggoodOut of stock$801$80

See also

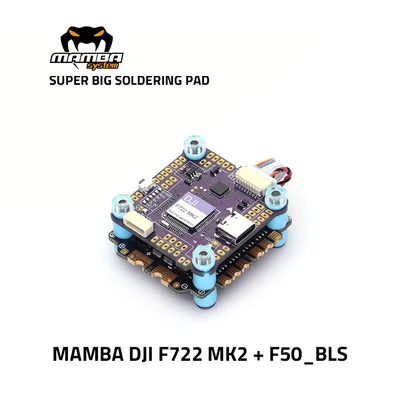

Diatone Mamba DJI F722 MK2 + F50_BLS 50A 4in1 ESC
