F4 FCs

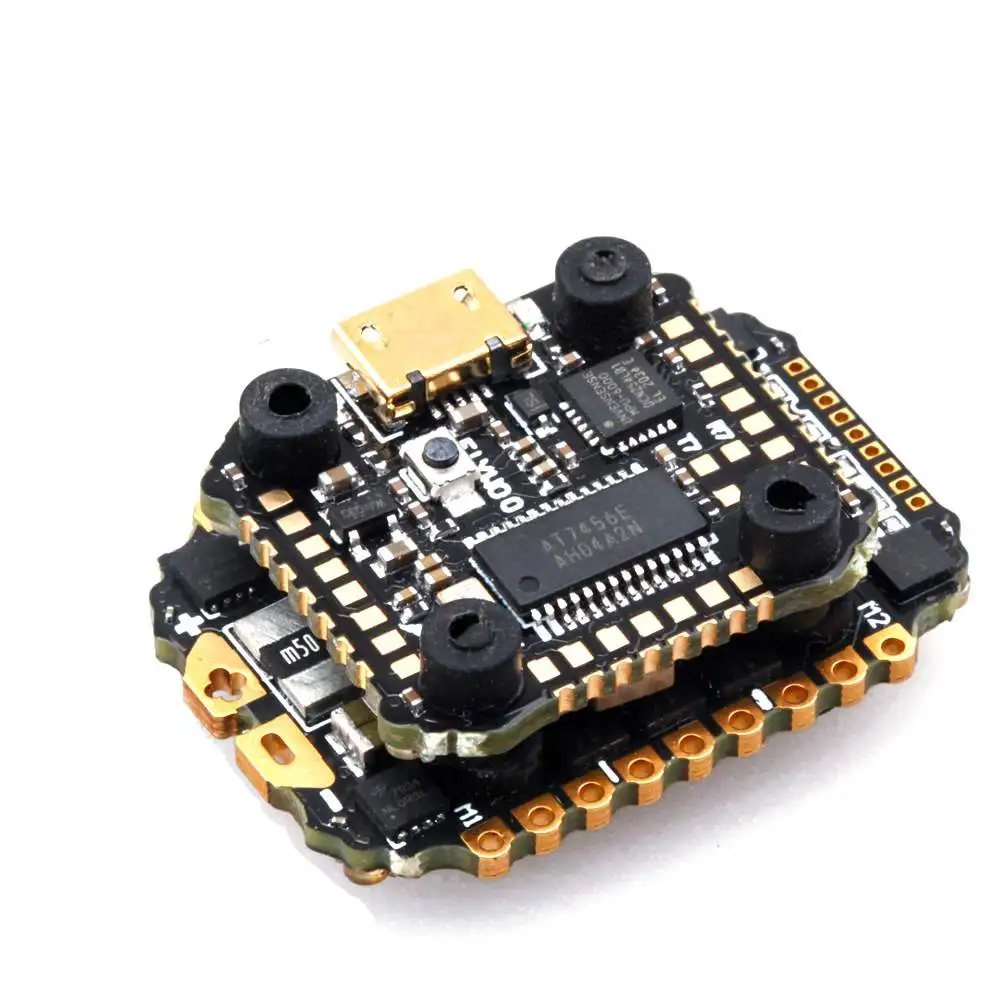

Flywoo GOKU HEX F4 + 13A 6in1 ESC
Multirotors → FPV Racing drones → Flight controllers → F4 FCs → FC F4 + ESC 4in1 Stacks → Flywoo GOKU HEX F4 + 13A 6in1 ESC
| MCU: | F411 |
| Gyro: | MPU6000 |
| OSD: | + |
| CAM in: | 1 |
| Power : | 2-4S |
| 3.3V BEC: | + |
| 5V BEC: | 2A |
| Current Sensor: | + |
| PWM: | 6 |
| ESC type: | stack |
| ESC: | 4x13A |
| BLHeli: | BLHeli_S |
| Receiver: | - |
| VTX: | - |
| UART Rx: | 2+2 |
| UART Tx: | 2+2 |
| I2C: | + |
| Buzzer pad: | + |
| LED pad: | + |
| CURR pad: | + |
| Blackbox: | 8Mb |
| Wifi: | - |
| Bluetooth: | - |
| Size: | 22x23mm |
| Mount Holes: | 16x16mm |
| Weight: | 2.3g |
Pls note that Hex FC cannot be used with Quad ESC !
GOKU HEX F411 16X16 STACK, support 4s battery. Use powerful STM32F411 chip,5V/2A BEC, black box, WS2812LED，
support 2 complete hardware, 1 serial ports, I2C and other functions are all open ! Enough to meet all FPV needs.
GOKU HEX F411 Flight Controller
l SIZE: 22*23mm
l Hole: 16*16-3mm
l MCU: STM32F411
l UARTS: U1/U2
l Soft UART: SU1/SU2
l I2C: SCL/SDA
l GYRO: MPU6000
l LED:4*WS2812
l FLASH: 8M
l BEC: 5V 2A
l Input Voltage: 2-4S
l Firmware: FLYWOOF411HEX
GOKU HEX 6IN1 BS 13A ESC
l BS13A BLheli_S 2-4S 6in1
l Input Voltage: 2-4S
l Mounting Hole: 16x16mm (M3)
l Support Oneshot, Multishot,
DShot150/300/600
