Flywoo Goku F745 6S Stack 20A 4in1 ESC 450mW VTX

This stack features a powerful F745 flight controller packed with features including a barometer, blackbox, 7 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner. The accompanying ESC is a 4in1 ESC with 20A of continuous current. This feature packed stack is sure to cover all the bases when it comes to micro long-range builds.
Run up to 6S on this stack with 450mW of quality video transmission power from the awesome VTX625.

Specifications

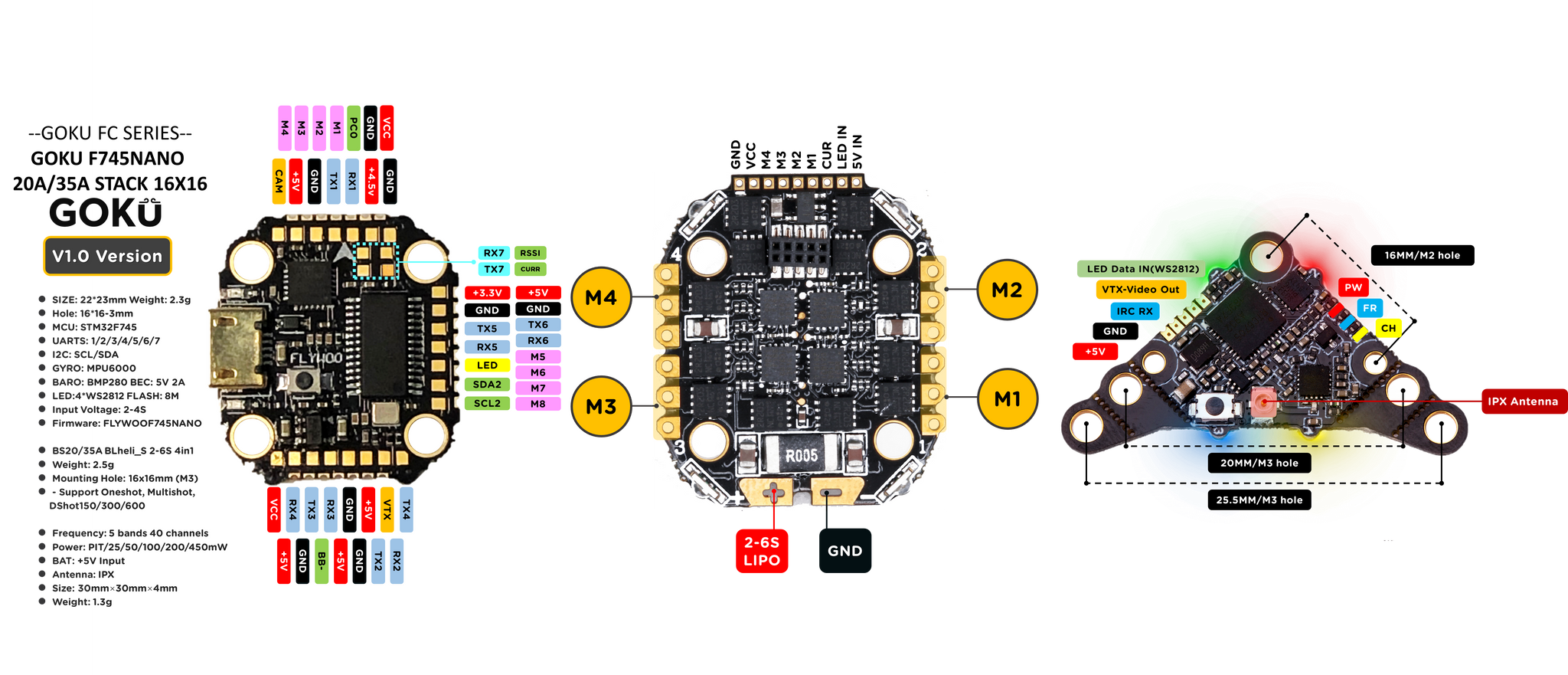

GOKU F745 16X16 FC

• SIZE: 22*23mm Weight: 2.3g
• Hole: 16*16-3mm
• MCU: STM32F745
• UARTS: 1/2/3/4/5/6/7
• I2C: SCL/SDA
• GYRO: MPU6000
• BARO: BMP280 BEC: 5V 2A
• LED:4*WS2812 FLASH: 8M
• Input Voltage: 2-4S
• Firmware: FLYWOOF745NANO

BS20A BLheli_S 2-6S 4in1

• Weight: 2.5g
• Mounting Hole: 16x16mm (M3)
  - Support Oneshot, Multishot, DShot150/300/600

GOKU VTX625 450mw VTX

• Raceband: 5362-5945 MHZ
• Power: PIT/25/50/100/200/450mW switchable
• Control Mode:IRC(RX)/Button
• BAT: +5V Input
• Video System: NTSC/PAL
• Antenna: IPX
• Size: 30mm×30mm×4mm
• Weight: 1.3g
