HGLRC Forward FD50A
4 x HGLRC Flame 2306 + Forward FD50A
Multirotors → FPV Racing drones → ESCs → 50A ESCs → HGLRC Forward FD50A → Sets with HGLRC Forward FD50A → 4 x HGLRC Flame 2306 + Forward FD50A

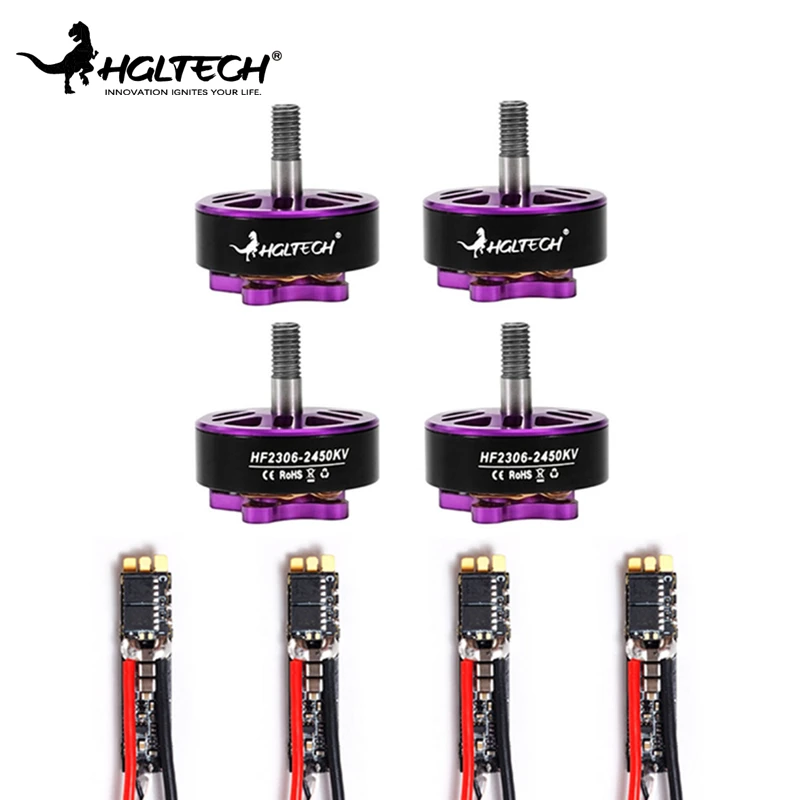

HGLRC 4 PCS Flame HF2306 2450KV Brushless Motor + 4 PCS Forward FD50A 50A Blheli_32 ESC for RC Drone
Specification:
Flame HF2306 2450KV Brushless Motor:
Brand name: HGLRC
Brand name: HGLRC
Item name: Forward FD50A Brushless ESC
Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Peak Current: 60A
BEC Ouput: NO
Firmware: BLHELI_32
Size: 42x10x6.4mm
Weight: 5.2g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol:DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot
Feature:
Super overcurrent protection
3-layer PCB board
3 ways of Current Shunt
Single circuit current only pass single layer.
to protect esc board to avoid overheat and overcurrent.
Support 2-6S Lipo battery
Support 22xx, 23xx, 24xx series motor
Suitable for Narrow arm frame Drone
Suitable for 5-7 inches quad
Package included:
4x Flame HF2306 2450KV Brushless Motor
4x Forward FD50A 50A Blheli_32 ESC
Specification:
Flame HF2306 2450KV Brushless Motor:
Brand name: HGLRC
Item name: Flame HF2306 2450KV Brushless Motor
KV: 2450KV
Stator diameter: 23mm
Stator thickness:6mm
No.of stator arms: 12S
No.of rotor poles: 14P
No-load current(A/10V): 1.6A
Motor resistance: 49mΩ
Max continuous current: 41.4A
Max continuous power: 660W
Weight: 32g
Rotor diameter: 28.72mm
Shaft diameter: 5mm
Body length: 16.1mm
Overall shaft length: 29.7mm
No.of cells(Lipo): 4S~5S
Recommended ESC: 40A~50A
Recommended Prop(inch): 5~6 Inch
Wire type: 20AWG 110mm
Forward FD50A 50A Blheli_32 ESC: Brand name: HGLRC
Item name: Forward FD50A Brushless ESC
Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Peak Current: 60A
BEC Ouput: NO
Firmware: BLHELI_32
Size: 42x10x6.4mm
Weight: 5.2g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol:DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot
Feature:
Super overcurrent protection
3-layer PCB board
3 ways of Current Shunt
Single circuit current only pass single layer.
to protect esc board to avoid overheat and overcurrent.
Support 2-6S Lipo battery
Support 22xx, 23xx, 24xx series motor
Suitable for Narrow arm frame Drone
Suitable for 5-7 inches quad
Package included:
4x Flame HF2306 2450KV Brushless Motor
4x Forward FD50A 50A Blheli_32 ESC
Share
Prices for 4 x HGLRC Flame 2306 + Forward FD50A in stores
Deals found: 3 (Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| Banggood | Out of stock | $104 | 1 | $104 |
