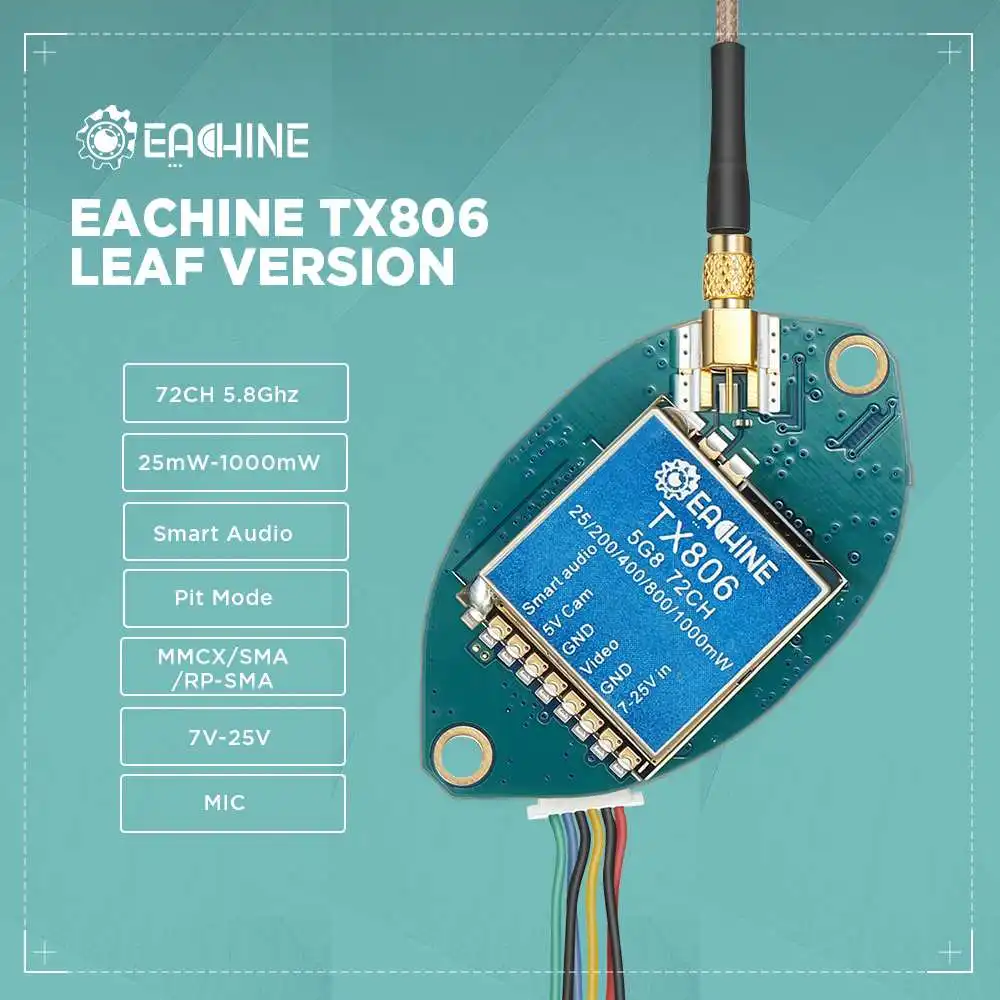

Eachine TX806 Leaf 1000mW
Multirotors → FPV Racing drones → FPV drone electronics → Racing Drone Video TX → Eachine TX806 Leaf 1000mW

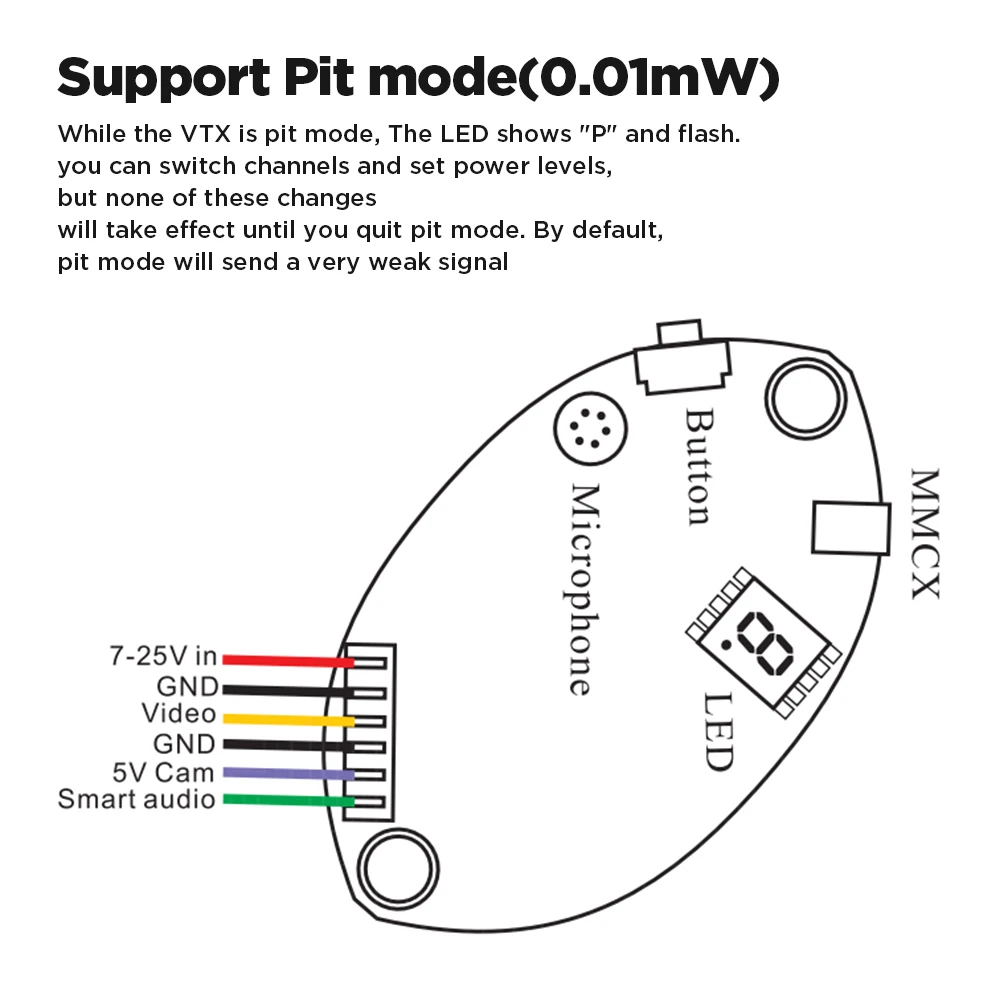

Pit mode(0.01mW) :
While the VTX is pit mode, the LED shows "P" and flash.
While in pit mode, you can switch channels and set power levels, but none of these changes will take effect until you quit pit mode. By default, pit mode will send a veru weak signal
Features
Support smart audio
25mW/200mW/400mW/800mW/1000mW power switchable
One key searching and power setup

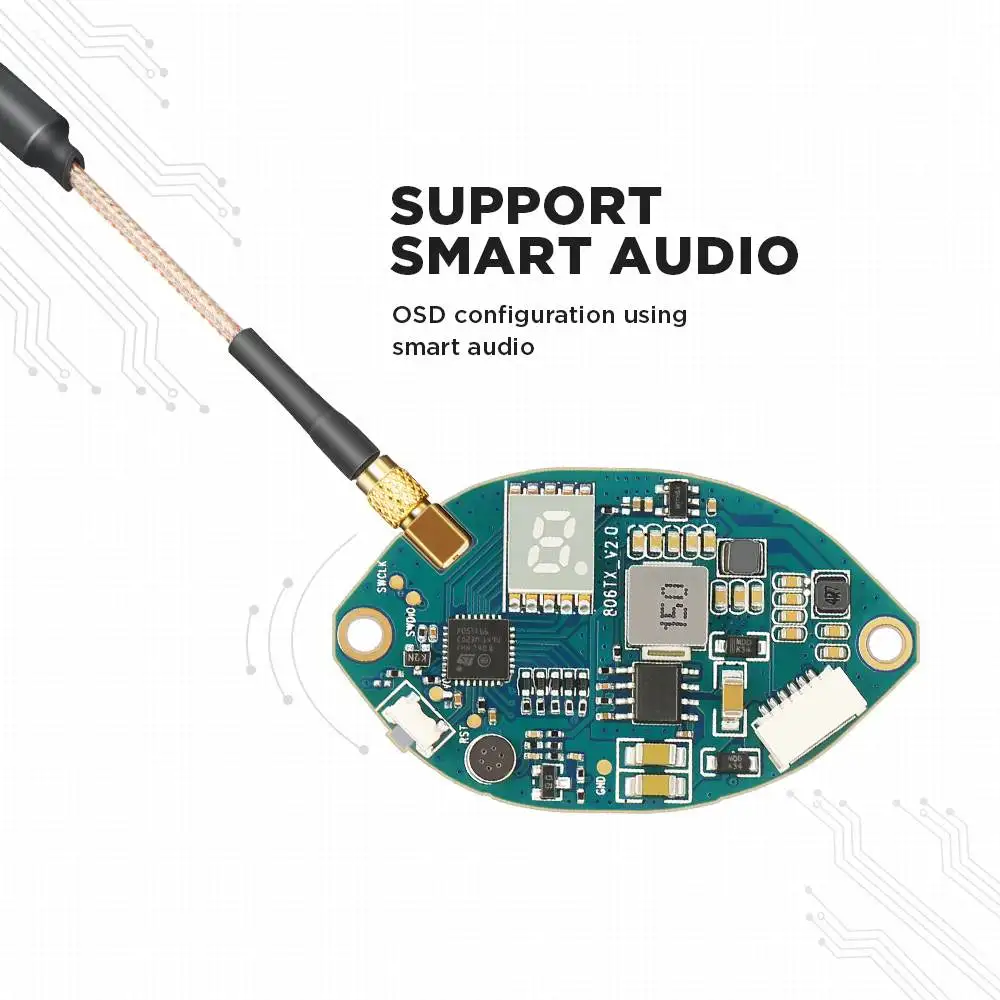

OSD configuration using smart audio
Wide input voltage with 5V for camera

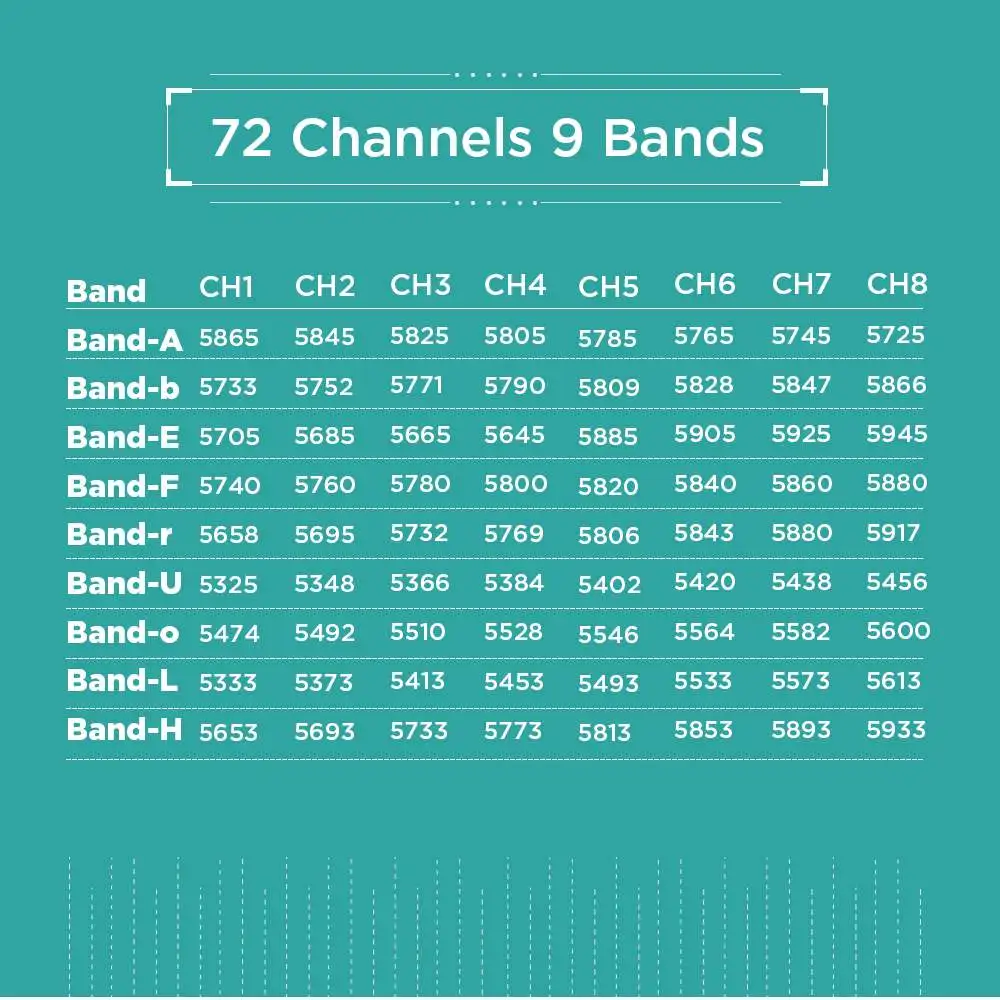

72 channels with MIC
Solid MMCX antenna connector and rp-sma pigtail cable
Digital diaplay
Description
Brand name : Eachine
Model : TX806
Input voltage : 7v to 25v
Output voltage : 5v camera supply
Working current : 80mA-25mW@12V;150mA-200mW@12V;220mA-400mW@12V;300mA-800mW@12V;450mA-1000mW@12V
Extra feature : smart audio
Output Power : 25mW/200mW/400mW/800mW/1000mW switchable
Antenna connector : MMCX
Cable : JST-SH 1.0mm 6P

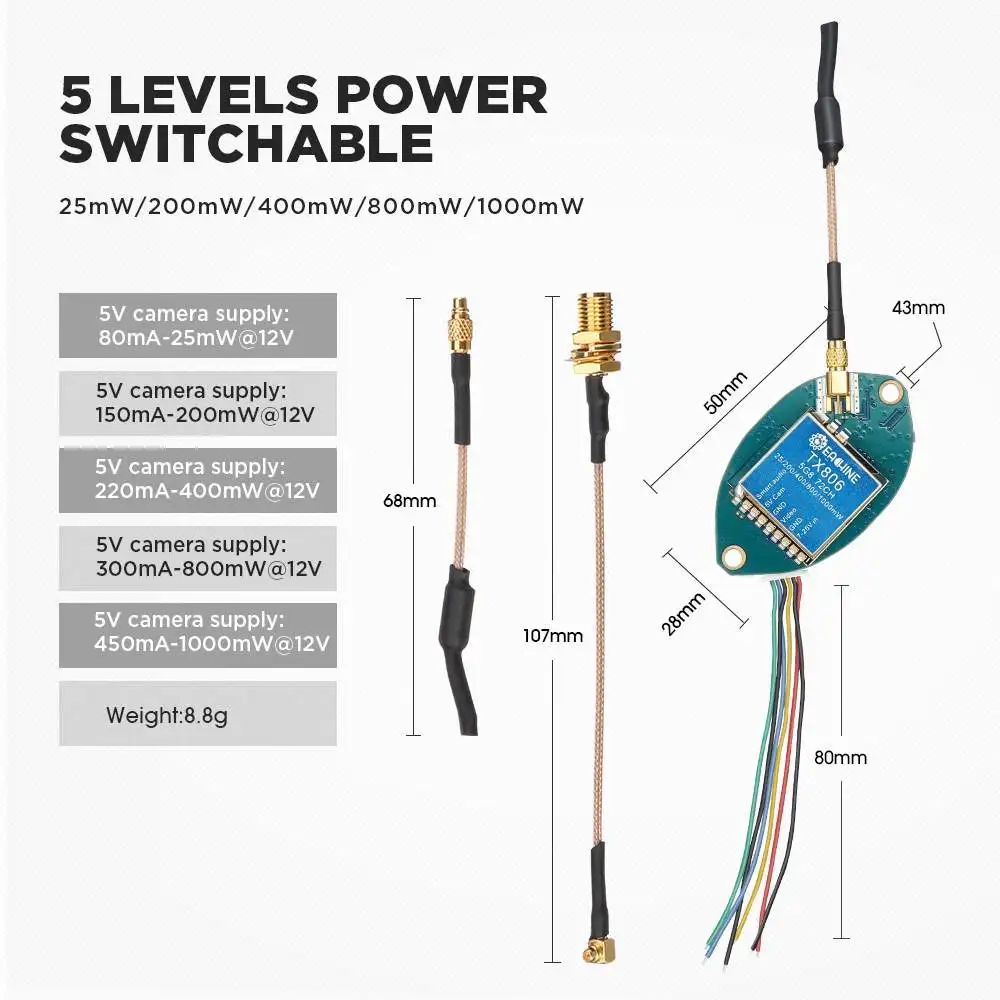

Dimension : 50mm*28mm*5mm, 43 stackable hole
Weigth : 8.8g(excluding antenna)
Operation

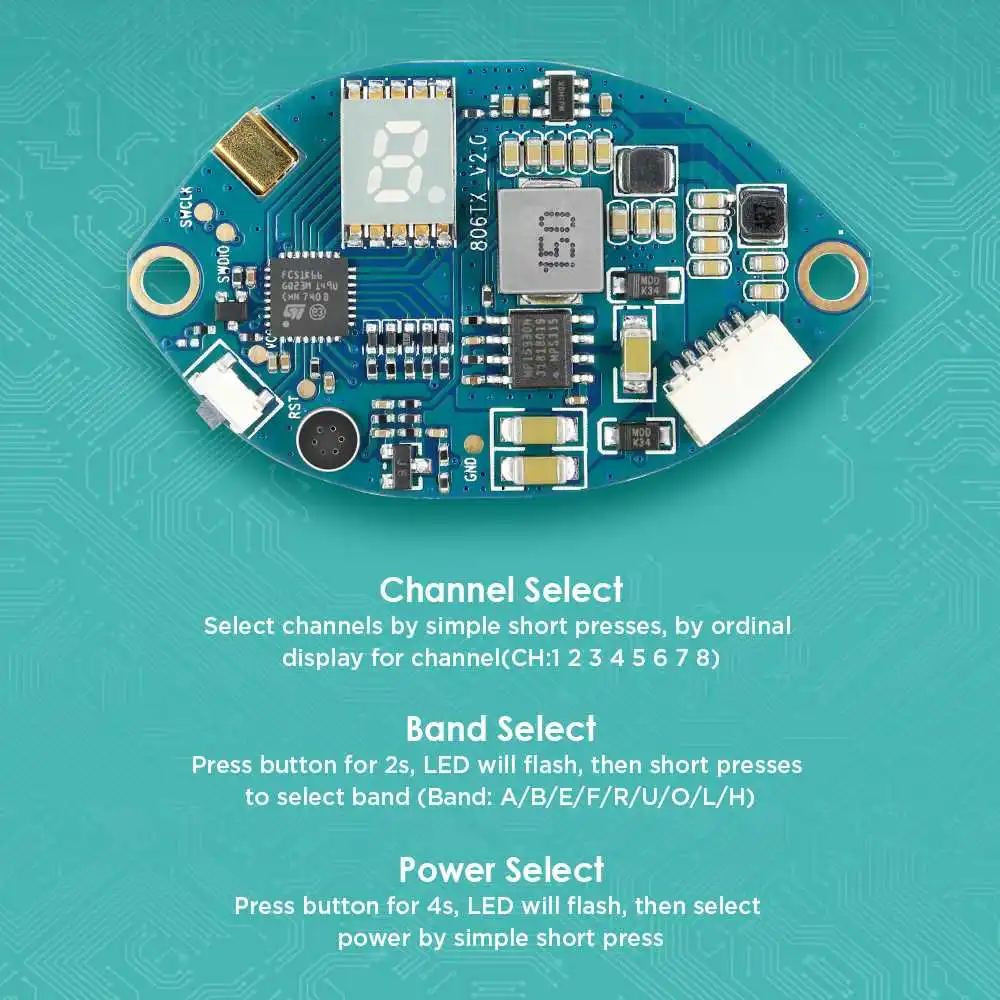

Channel Select
Select channels by simple short presses, by ordinal display for channel(CH:1 2 3 4 5 6 7 8)
Band Select
Press button for 2s, LED will flash, then short presses to select band (Band: ABEFRUOLH)
Power Select
Press button for 4s, LED will flash, then select power by simple short press

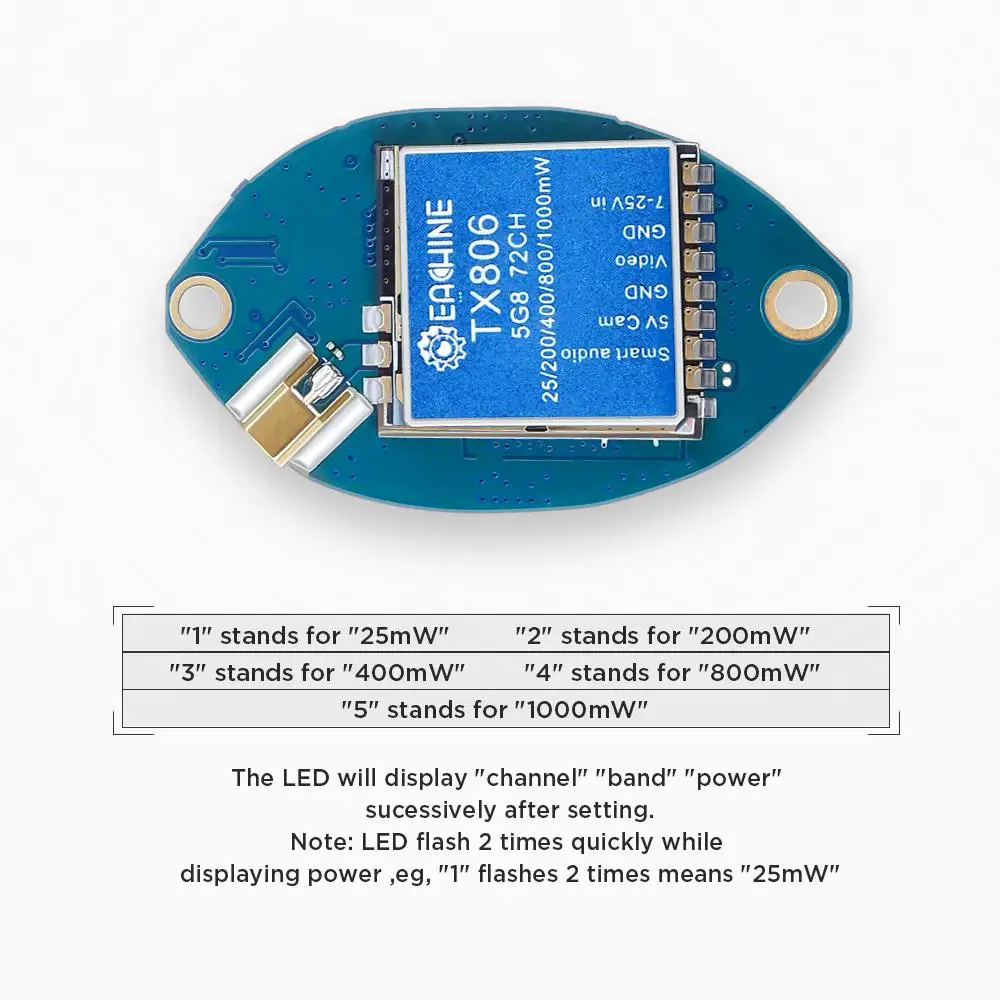

"1" stands for "25mW"
"2" stands for "200mW"
"3" stands for "400mW"
"4" stands for "800mW"
"5" stands for "1000mW"
The LED will display "channel" "band" "power" sucessively after setting.
Note: LED flash 2 times quickly while displaying power ,eg, "1" flashes 2 times means "25mW"

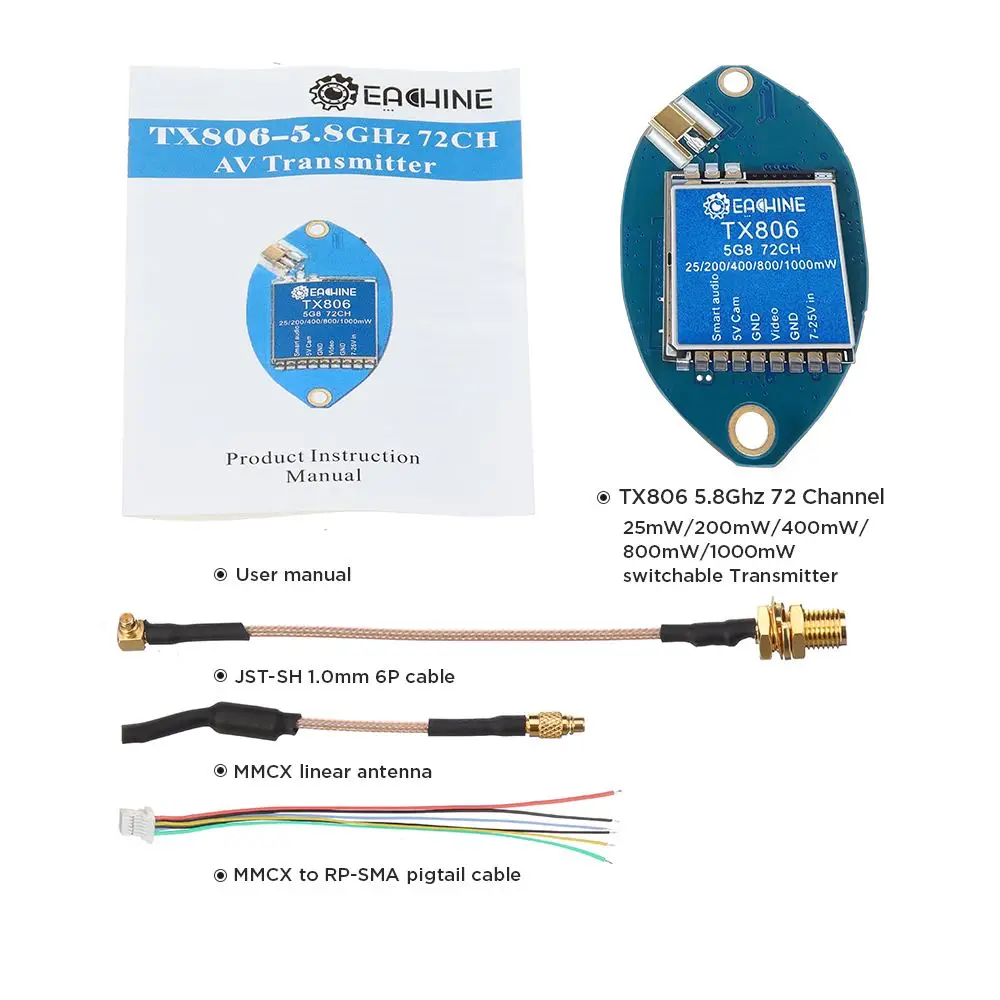

Package Included
1 x TX806 5.8Ghz 72 Channel 25mW/200mW/400mW/800mW/1000mW switchable Transmitter
1 x MMCX to RP-SMA pigtail cable
1 x MMCX linear antenna
1 x JST-SH 1.0mm 6P cable
1 x User manual
