Diatone Mamba TOKA 1103 3S 8500KV
Multirotors → FPV Racing drones → Motors → 11xx Motors → 1103 Motors → Diatone Mamba TOKA 1103 3S 8500KVRecommended stores↓ Another stores

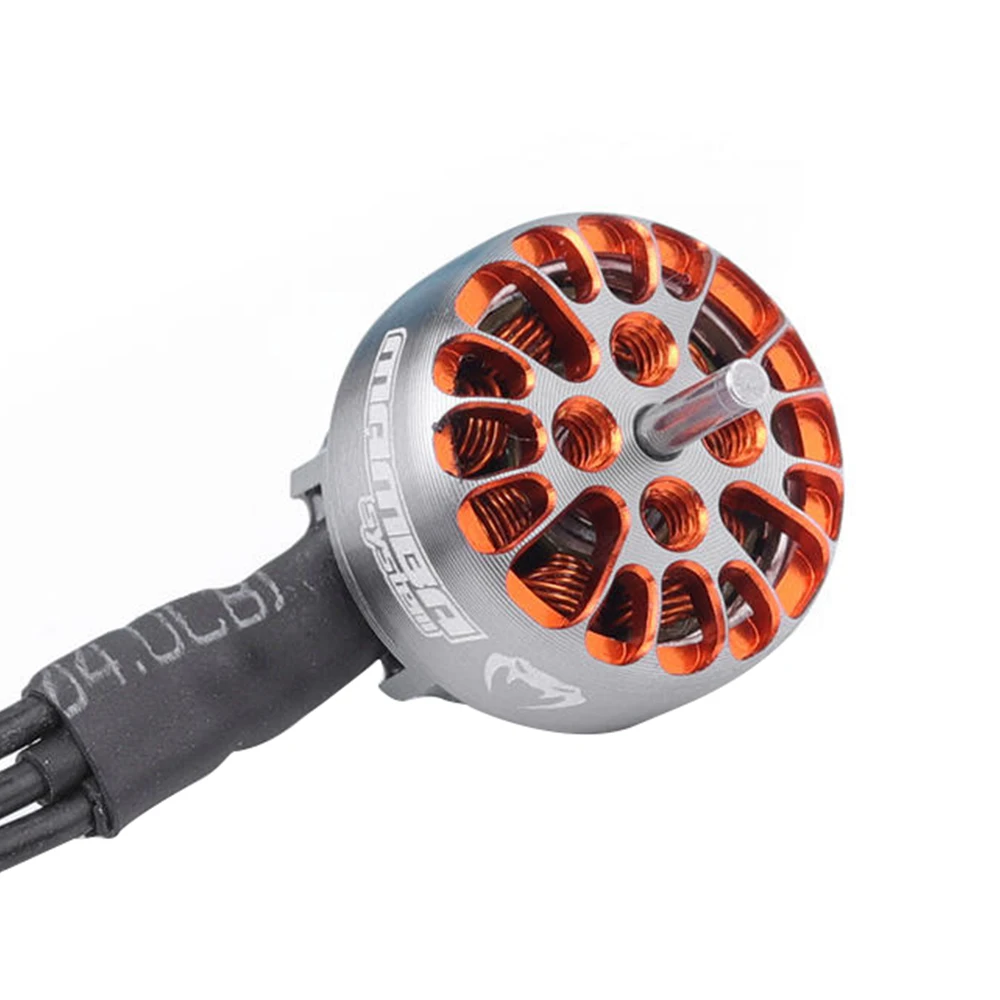

MAMBA TOKA 1103 8500KV Racing motor
Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage: 2~3S (8.4V~12.6V)
Peak Current: 10.8A
ldle Current：4V/0.42A
Maximum Power: 130W
Internal Resistance：170Ω
MAMBA TOKA 1103 10000KV Racing motor
Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height:3mm
Rated Voltage: 2S (8.4V)
Peak Current: 8.6A
ldle Current：4V/0.5A
Maximum Power: 70W
Internal Resistance：158Ω
Package Included:
1 x TOKA 1103 Brushless Motor (8500KV / 10000KV Optional )
Share
Prices for Diatone Mamba TOKA 1103 3S 8500KV in stores
Deals found: 35 (AliExpress3, BuddyRC1, Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| BuddyRC | In stock | $13 | 1 | $13 | ||
| AliExpress | High stock level | $53 | 4 | $13 | ||
| AliExpress | Stock level: 17 | $18 | 1 | $18 | ||
| AliExpress | High stock level | $18 | 1 | $18 | ||
| Banggood | Out of stock | $19 | 1 | $19 |
