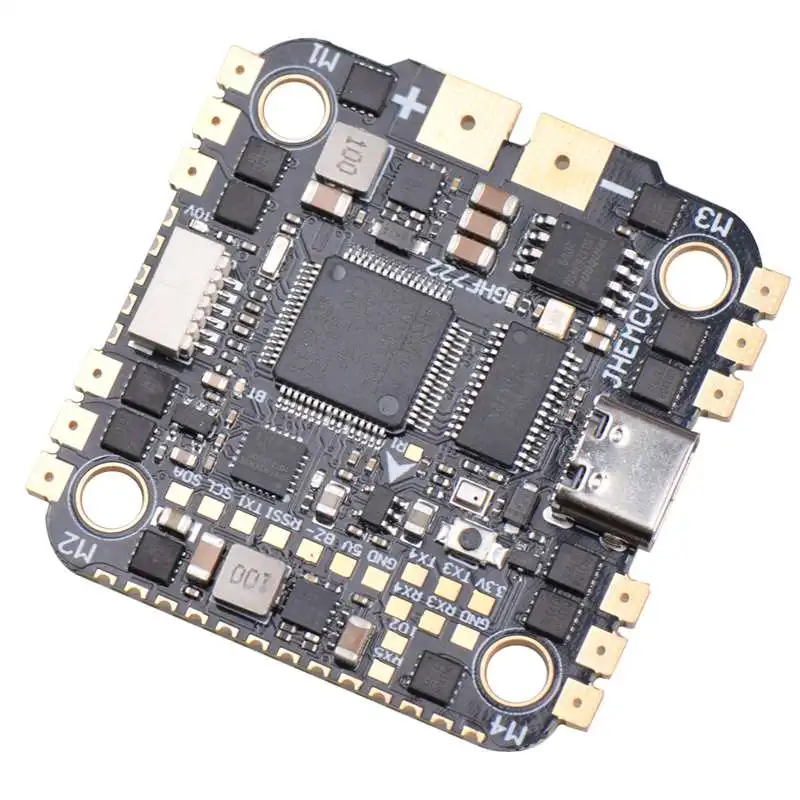

JHEMCU GHF722AIO MPU6000 40A BLHeli_32 4in1 6S
Multirotors → FPV Racing drones → Flight controllers → F7 FCs → FC F7 AIO built-in ESC 4in1 → JHEMCU GHF722AIO MPU6000 40A BLHeli_32 4in1 6S
Brand: JHEMCU
Model: GHF722 AIO
Item Name: FPV GHF722AIO 3-6S 40A AIO Bluetooth Flight Controller
Size: 42x43mm
Mounting Hole: 30.5x30.5mm
Weight: 11.6g
| F7 OSD Buletooth Flight Controller | CPU: STM32F722RE Sensor: MPU6000（SPI Connection） OSD: AT7456E Barometer: BMP280 Black box: 16MB Bluetooth: BL4.0 (NAME：JHEMCU)，Configuration UART3 BEC: 5V/2.5A, 10V/2.5A ESC TX: UART1 HDVTX: DJI VTX->UART6 RC_IN: UART2 UART: UART1,UART2,UART3,UART4,UART5,UART6 USB: TYPE-C IO2:MODE->USER2 Custom port Size: 30.5*30.5mm (Max: 42*43mm) Firmware: JHEF7DUAL Receiver: SBUS, IBUS, DSM2, DSMX, TBS Support Programmable LED such as WS2812 Support Buzzer Built-in Current Sensor Weight: 11.6g |
| Onboard 40A BLheli_32 4in1 ESC | Con. Current: 40A Burst Current: 50A Input Voltage: 3-6S Lipo Firmware: BLHELI_32 JHE_00000000_32_Multi Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DSHOT1200 |
Package Included:
1x JHEMCU GHF722AIO Board
1x 14AWG Red Cable
1x 14AWG Black Cable
1x 1000UF 35V Capacitor
4x M3 Rubber Shock Absorber
1x XT60 Plug
