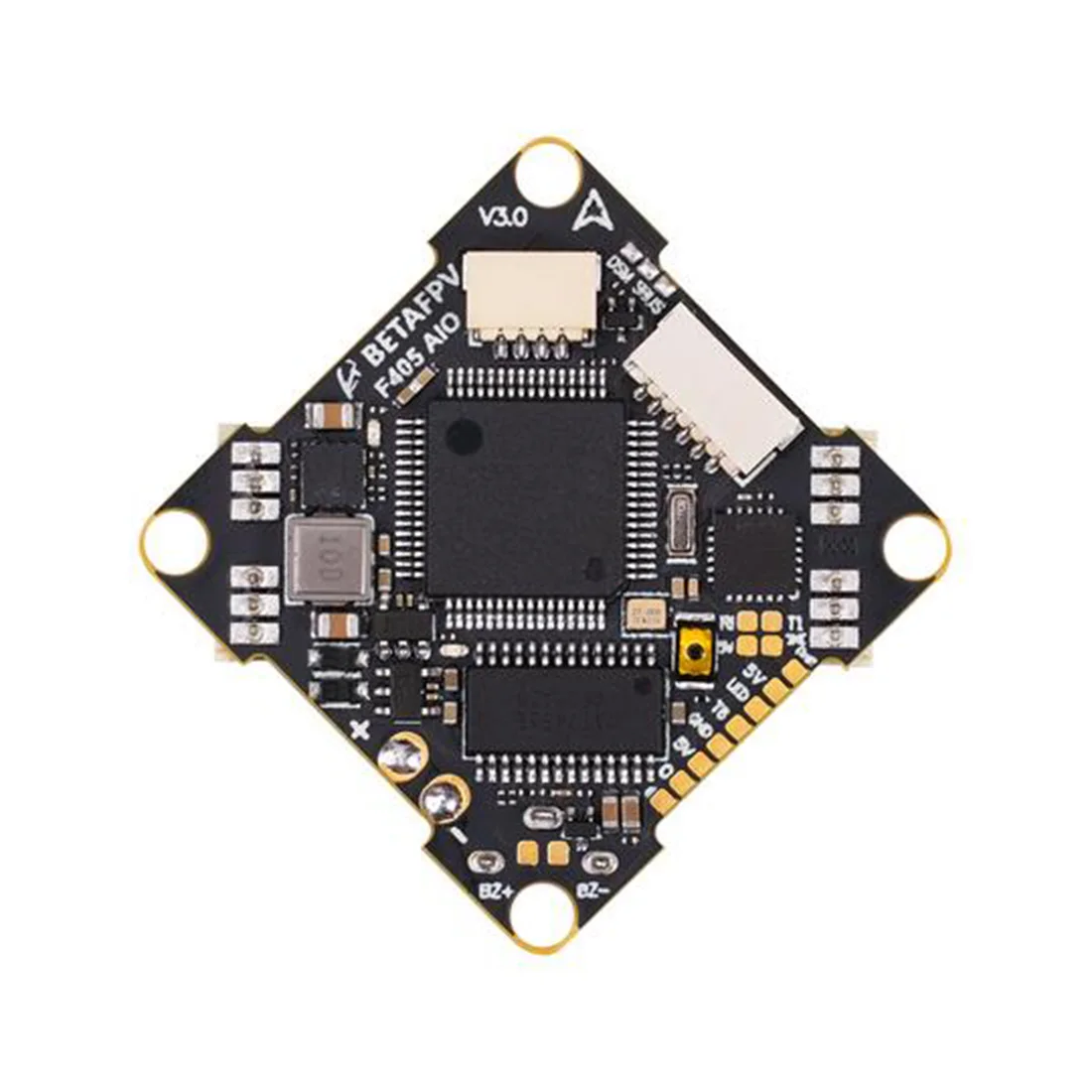

BetaFPV F405 AIO 20A 4S V3
Multirotors → Tinywhoops → Whoop Flight Controllers → Brushless Whoop FC → BetaFPV F405 AIO 20A 4S V3
The 20A F405 AIO FC decreases the board thickness from 1.6mm to 1.2mm, which reduced the weight to 5.3g while improving the ability of the ESC to continuous current 20A(22A burst). Now you can build a bigger quad with powerful FC to save weight and size such as the Beta95X Digital VTX, Beta95X V2 and Beta95X V2 HD Digital VTX.
Because 12A V3 FC and 20A AIO V3 FC have unified the UART, both two boards have the same appearance, FC diagram, statue LED and way to connect the RX.
Bullet Point
Updated the F411 chip to F405, this new 20A board can handle 20A continuous current(22A burst), gives the pilots a powerful flight.
Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
Completed the traditional mounting hole, more like the Toothpick type, perfectly prevent the damping pad from falling off, which is the super-easy installation in most whoop frame.
BETAFPV 20A AIO flight controller will unify the UART, which is convenient for pilots to solder.
Compatible with 110X, 120X, 140X motors, pilots can use the 20A AIO FC to build a bigger quad with this powerful FC to save weight and size.
Specifications of F405 20A AIO FC V3
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30
Weight: 5.3g
Specifications of ESC
Support PWM，Oneshot125，Oneshot42， Multishot，Dshot150，Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-S G-H-25
Package Included:
1 * F405 20A AIO FC V3 or F405 12A AIO FC V3
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
Share
Prices for BetaFPV F405 AIO 20A 4S V3 in stores
Deals found: 15 (BetaFPV1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| BetaFPV | Out of stock | $65 | 1 | $65 |
