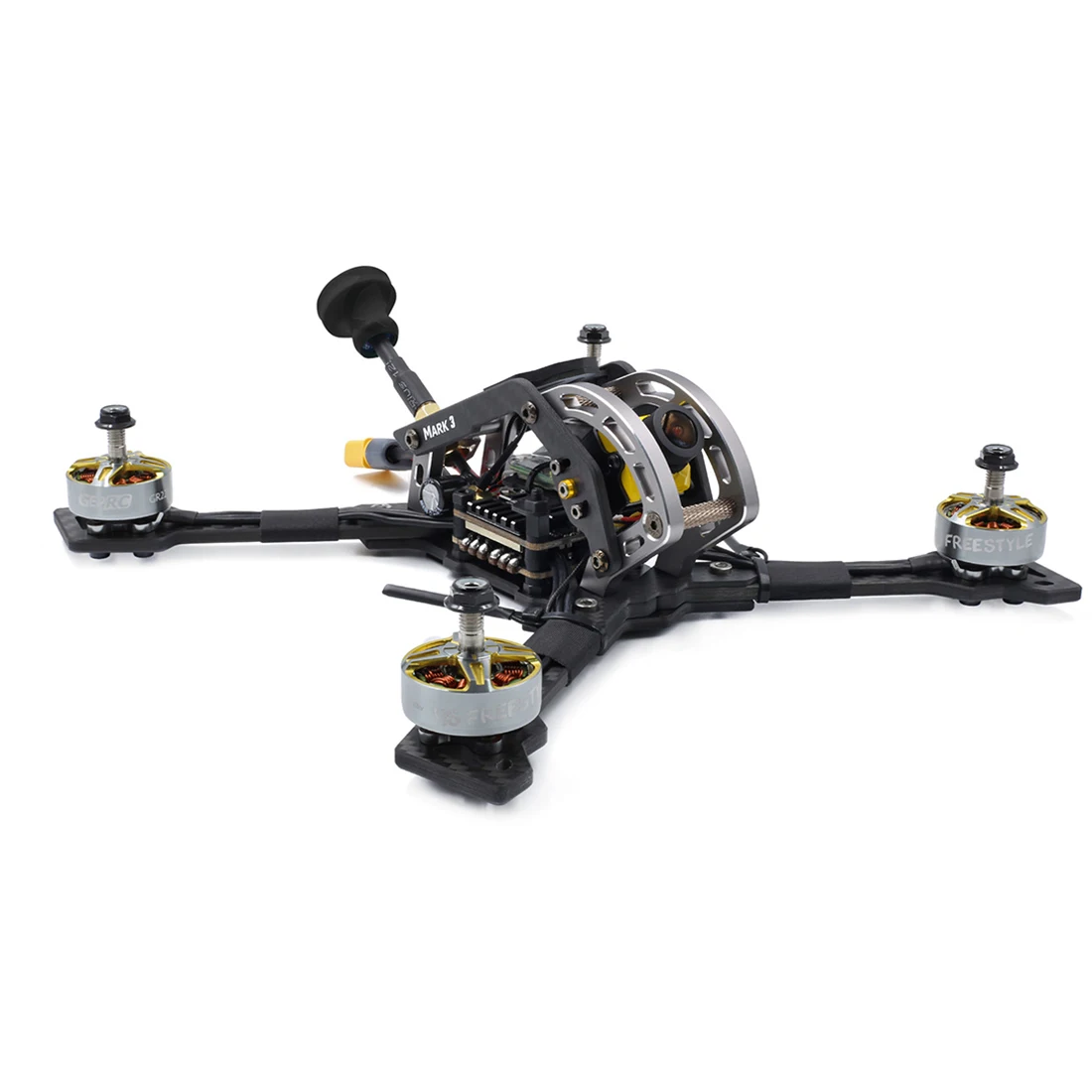

GEPRC Mark3 H5 225mm 5" 5S 2400KV 40A PNP

GEPRC Mark3 H5 225mm 5 Inch 2-5S FPV Racing Drone BNF/PNP SPAN F4 40A Blheli_S DSHOT600 ESC 25~600mW VTX Caddx Ratel Cam

Specification:
Brand name: GEPRC
Item name: Mark3 H5 FPV Racing Drone
Model: Mark3
Wheelbase: 225mm
Flight Controller: SPAN F4 BLheli_S 40A Tower
Propeller:GEP5040*3 (10 pairs)
Motor: GR2207.5 2400KV
Firmware: betaflight_3.5.3_OMNIBUSF4SD
Camera: Caddx Ratel 2.1mm
Antennas: Pagoda2
Receiver: Frsky XM+/Frsky R-XSR/without receiver (Optional)
Recommend battery(Not Included): 4S 1300~1550mAh
Weight: 321 grams without battery or props

GEPRC GEP-Mark3 H5 Frame kit

Carbon:Full 3K carbon fiber Twill CNC:High precision CNC 7075 Motor to motor: 225mm Bottom plate: 3mm Top plate: 1.5mm Side plate: 3mm Reinforce plate: 1.5mm Arms plate: 4mm

SPAN F4 BL_S 40A Tower

F4 Flight Controller & 48CH 25/200/600mw VTX Board: Model: GEP-F405-VTX58600 MCU: STM32F405 MCU Firmware version: OMNIBUSF4SD Use MPU6000 as Acc & gyro over SPI Bus Integrated VTX with audio (48CH) (OFF/25/200/600mW adjustable power video transmission) STM32 controls OSD chip over SPI in DMA mode, less CPU using, faster rate TX control ready via Furious FPV / IRC Tramp peripheral protocol Integrated 5V/3A BEC Integrated LC Filter   40A 4 IN 1 ESC Board: Model: GEP-BS40A-4IN1 PDB: Integrated Battery monitoring: Integrated FC power: Integrated Input voltage: 2~5S Lipo Maximum continuous operating current: 4*40A Maximum instantaneous operating current: (4*45A(5 Seconds)) Oneshot125/Oneshot42/Multishot modes, the latest Dshot 150/300/600 Firmware version: BLHeli_S/Dshot 150/300/600 16.6(G_H_30) Size: 36*36mm Weight: 8.8g

Features:
- GEP-mark3 H5 frame, all 3K carbon fiber board and high precision CNC protection, exquisite and strong
-  SPAN F4 Tower, Max 5S battery, GR2207.5 2400KV motor
- 10 pairs of gep-5040 propellers, 1 set of 3d-printed motor protection parts
- Use the Pagoda2 antenna to determine the image quality
- Caddx Ratel 2.1mm camera ,for excellent imaging effect
- Tuned by the GEPRC team at the time of delivery, you can fly with confidence


Package Included:
1x Mark3 H5 2-5S FPV Racing Drone
1 x Receiver (Frsky XM+/Frsky R-XSR/without receiver (Optional))
20 x GEP5040 3-blade Propeller (10x CW, 10xCCW)
5x Battery strap
1x Spare Arm
4x 3D Arm Guards
2x Pagoda2 RHCP SMA Antenna
