SIYI FM30 2.4GHZ 30km Telemetry Bluetooth Long Range Transmitter Module

SIYI FM30 2.4GHZ 30KM Telemetry Bluetooth Long Range Transmitter Module UART SBUS PPM Input with FR/FR Mini OTA Receiver for RC Drone

OVERVIEW:

30KM Radio Module with Datalink, Telemetry, and Bluetooth

FM30 is based on SIYI Tech's industry-level radio frequency technology, accu-mulated for years. The built-in Bluetooth function supports outdoor wireless FC settings and real-time flight status monitoring. The module is tiny and compatible with standard JR slot. FM30 also supports multiple signal input and commu-nication protocols, users will have an unprecedented experience of manipulating

their model craft, exploring range limits, and having fun.

Description:

Brand Name: SIYI

Item Name: FM30 Module with FR/FR Mini Receiver

Model: FM30

Module Weight: 36g

FR Receiver Weight: 20g, FR Mini Receiver Wight: 1.5g (Both without Antenna)

Frequency: 2400- 2483 MHz

Transmission Distance: >30 km(unobstructed, free of interference)

Latency: 10 ms(protocol mode)

Signal Input: UART, S Bus, PPM

Channels: 16 CH

Antenna Connector: SMA Female

Power Input: 5-8.4V

Power Consumption: 0.7W

Firmware Update: Supported

Product Dimension: 70 20*33 mm

Compatible Slot Size: 59"4318.5 mm

Working Temperature: -10-55°C

Features:

30KM Long Range

Aplied with lately developed technologies, such as super long distance, self-adaptive bandwidth, interference avoidance frequency hopping, and two-way telemetry, equipped with industry-level RF hardware which is capable to counter high power electromagnetic interference, FM30 radio module s maxi-mum control distance can reach up to 30 kilometers and more, which can effectively guarantee the low-altitude manipulating stability crossing among tres, through racing panels, in garage and other concrete buildings with many obstacles, shelters, and heavy interference.

Bluetooth/Telemetry Configuration

FM30 comes with built-in Bluetooth function and supports Mavlink protocol, which makes it possible for users to monitor real-time flight status and do configuration through the ground control software

-FM30 supports popular GCS such as QGroundControl, Speedy Bee, Mission Planner, Fish Drone, etc.

Receiver oTA Wireless Upgrading, Wireless Binding

The way of upgrading receiver firmware wirelessly let users get rid of complex wire connection.

Through a combination of manipulation, receiver actively enters binding mode without disassembling your drone/aircraft.

RSSI Signal Telemetry

FM30 supports RSSI output in S.Bus mode, providing real-time status information as reference for long-range flight.

2. 4 GHz ISM Frequency Band

FM30' s uses 2.4GHz band, which is legal to use in any countries. Under 2.4GHz and  working with Fast Hopping techology, FM30's transmission speed is fast and stable.

Coming Soon:

USB Simulator

Wireless Master-slave

Multi-drone Control

RC Relay

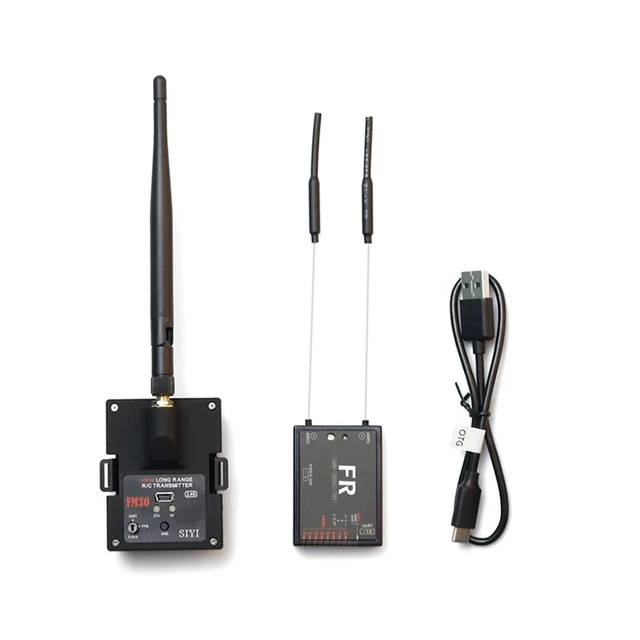

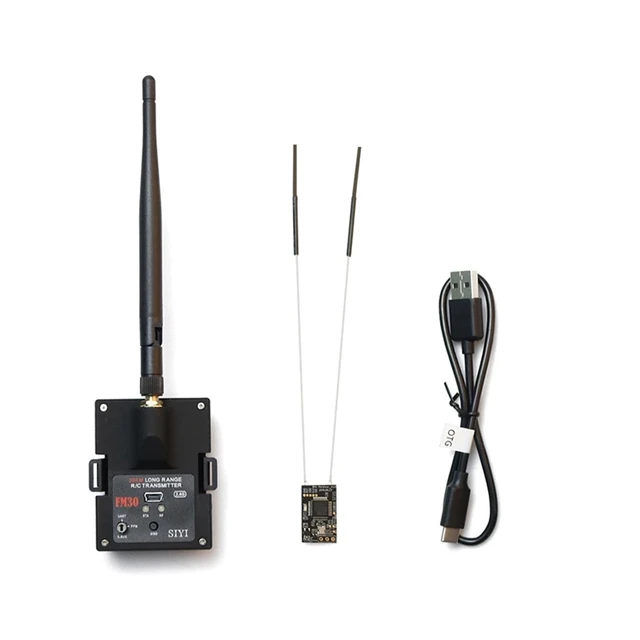

Package Included:

1 x FM30 Module

1 x FR/FR Mini Receiver (Optional)

1 x USB Cable
