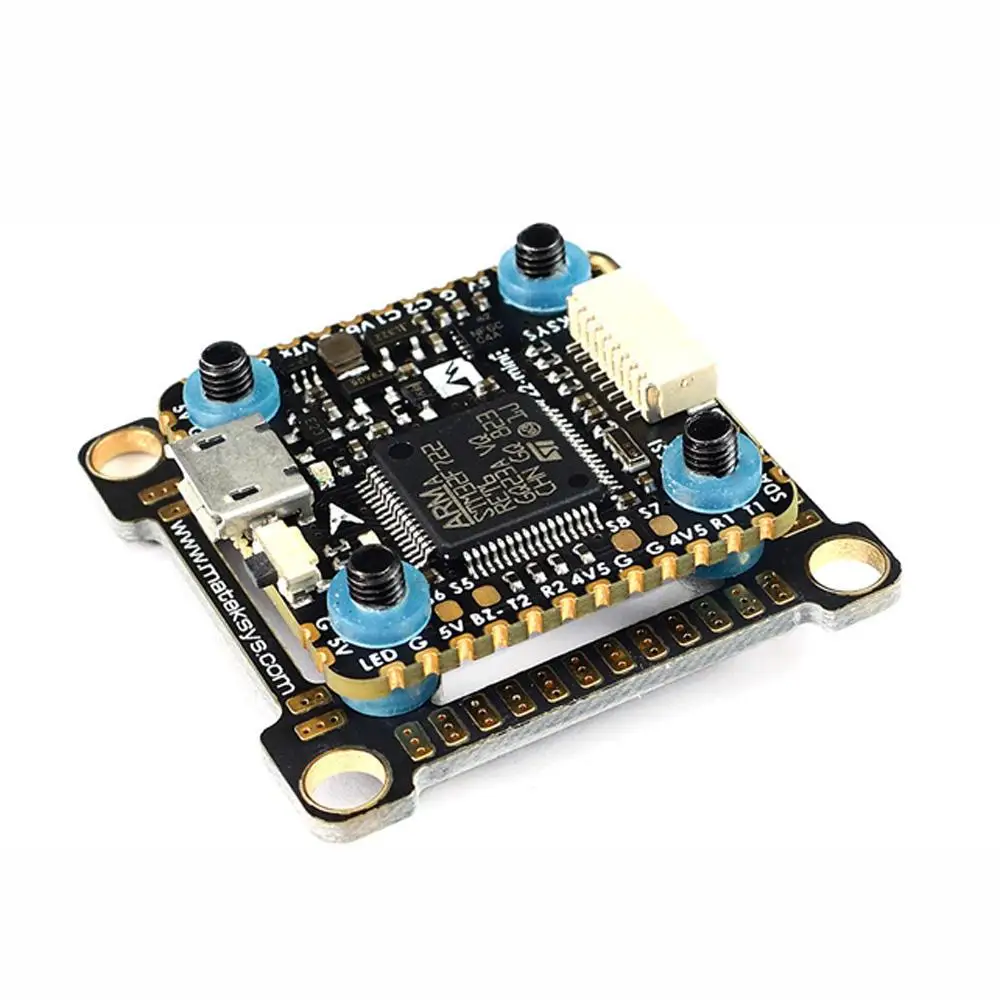

Matek F722-mini

Matek Systems F722-Mini Flight Controller OSD Dual Gyro/Acc 32M Flash 5V/2A BEC for RC Drone

Specification:
Brand name: Matek Systems
Item name: F722-Mini Flight Controller

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
• OSD: AT7456E (SPI)
• Blackbox: 32M-byte Flash memory (SPI)
• Baro: No barometer built-in.  support external barometer module (I2C)
• 5x Uarts (1,2,3,4,6) with build-in inversion
• 1x Softserial supported
• 8x Dshot/Proshot/oneshot outputs
• 1x I2C
• 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

• Vbat filtered output power for VTX,  Switchable via AUX (modes tab-user1)
• Dual Camera image switchable via AUX (modes tab-user2)
• Convertible 20mm to 30.5mm mounting

• Camera control: Yes
• Smartaudio & Tramp VTX protocol: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Additional ADC for INAV analog airspeed
•

Power

• Input: 6~36V (2~8S LiPo)
• BEC: 5V 2A cont. (Max.3A)
• LDO 3.3V: Max.200mA
• Battery Voltage Sensor: 1:10 (Scale 110)
• No Current Sensor built-in, supports external current sensor of PDB/4in1
•

FC Firmware

• BetaFlight / INAV
• Target: MATEKF722SE
•

Physical

• Mounting
  • 20 x 20mm/Φ3mm with Silicon Grommets
  • 20 x 20mm/Φ2mm with Silicon & Brass Grommets
  • 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
• Dimensions:  28 x 28 mm
• Weight: 5g
•

Package Included

• 1x FC F722-mini
• 1x 20mm to 30.5mm conversion plate
• 6x Silicon grommets M4 to M3
• 6x Brass grommets M3 to M2
• 1x SH1.0_8pin cable 5cm
• 2x SH1.0_8pin connectors
