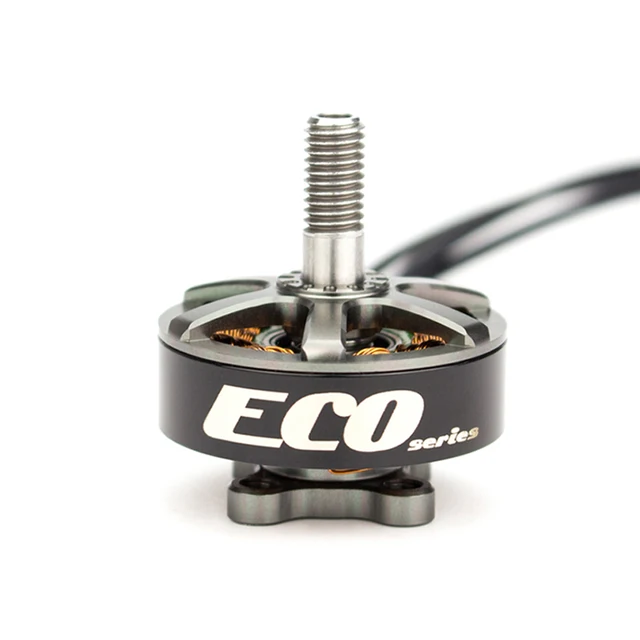

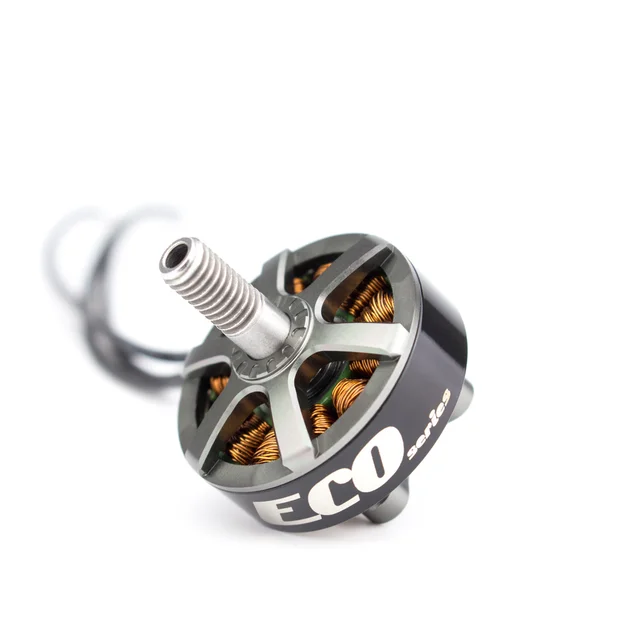

Emax ECO Series 2306 1700KV

EMAX's ECO series focuses on quality, affordable motors that are lightweight but still remain durable. They are lightweight due to their new bell design and still very durable due to the new larger 9mm bearing.

This 2306 sized motor features a strengthened steel hollow shaft, multistrand windings for performance, shaft screw, and larger 9x4mm bearings.

Features

• EZO bearing 9mm ODx4mm ID
• Steel shaft
• Dual anodizing
• 16x16mm hole pattern
• Multistrand copper winding
• 115mm 20 AWG silicone wire

Specifications

• Framework: 12N14P
• Length: 30.2mm
• Diameter: 27.7mm
• No. of cells: 3-4s 2300-2700kv range
• No. of cells: 3-6s 1500-1900kv range
• Propeller: 5" - 6"
• Light Weight: 28.3g (W/O Silicone Wire)
• Prop adapter: M5
• Bearing Shaft: 4mm
• Shaft Thread: CW

Includes

• 1x ECO Motor
• 1x 3mm Screw Set
• 1x 4mm Screw Set
• 1x Prop Nut
• 1x Washer and Shaft Screw
