Motors
Diatone MAMBA TOKA 1606 2700KV
Multirotors → FPV Racing drones → Motors → 16xx Motors → Diatone MAMBA TOKA 1606 2700KVRecommended stores↓ Another stores

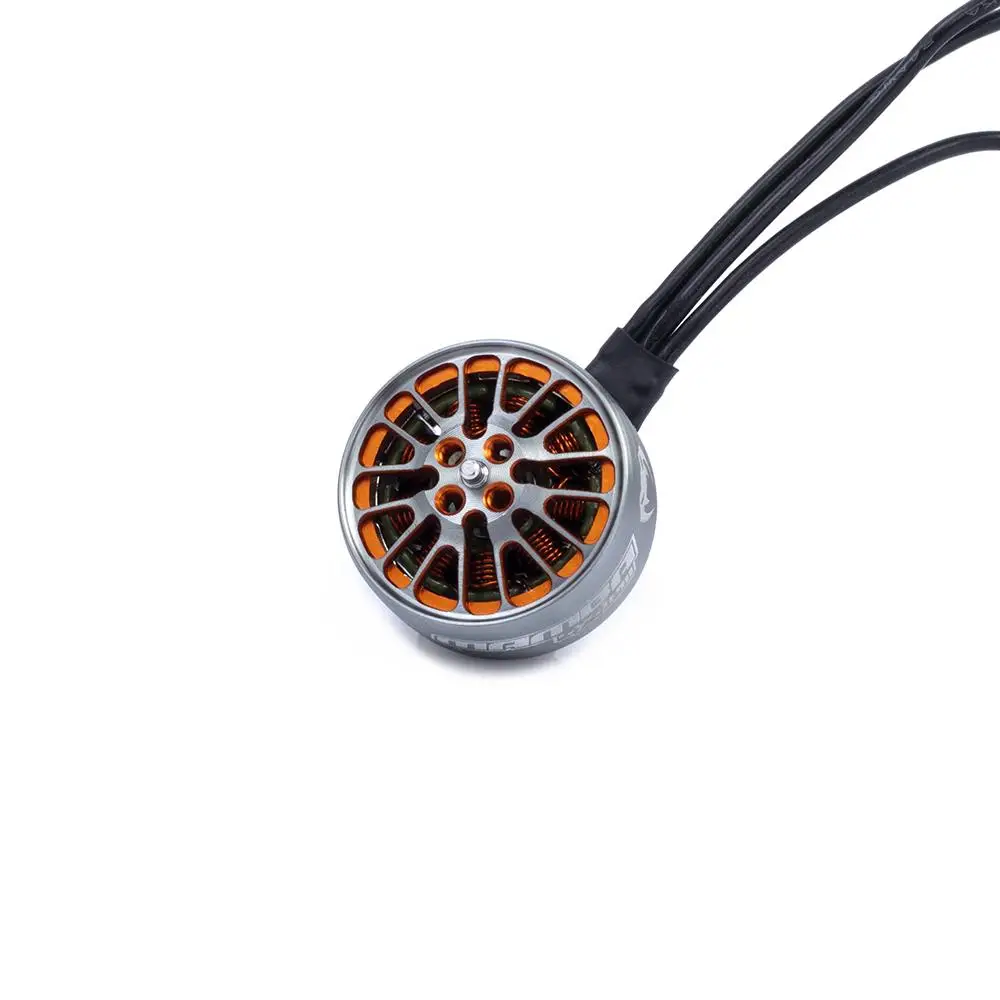

Item: Diatone MAMBA TOKA 1606 2700KV 3750KV Brushless Motor
Parameters:
2700KV
Overall Dimension:Φ22.2×15mm
Weight:17g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:3~6S (12.6V~25.2V)
Peak Current:17.6A
ldle Current:10V/0.5A
Maximum Power:409W
Internal Resistance:164Ω
3750KV
Overall Dimension:Φ22.2×15mm
Weight:17g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current:21.1A
ldle Current:9v/0.8A
Maximum Power:338W
Internal Resistance:114Ω
- Package Included:
- Diatone MAMBA TOKA 1606 Brushless Motor X4 (model as your choice)
- Screws
Share
Prices for Diatone MAMBA TOKA 1606 2700KV in stores
Deals found: 45 (AliExpress2, Diatone Innovations1, BuddyRC1, Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| BuddyRC | In stock | $15 | 1 | $15 | ||
| Diatone Innovations | In stock | $15 | 1 | $15 | ||
| Banggood | Out of stock | $60 | 4 | $15 | ||
| AliExpress | Out of stock | $61 | 4 | $15 | ||
| AliExpress | Out of stock | $17 | 1 | $17 |
