F4 FCs

HAKRC / Feichao / JMT F4126 F411 20A AIO

Multirotors → FPV Racing drones → Flight controllers → F4 FCs → FC F4 AIO built-in ESC 4in1 → HAKRC / Feichao / JMT F4126 F411 20A AIO

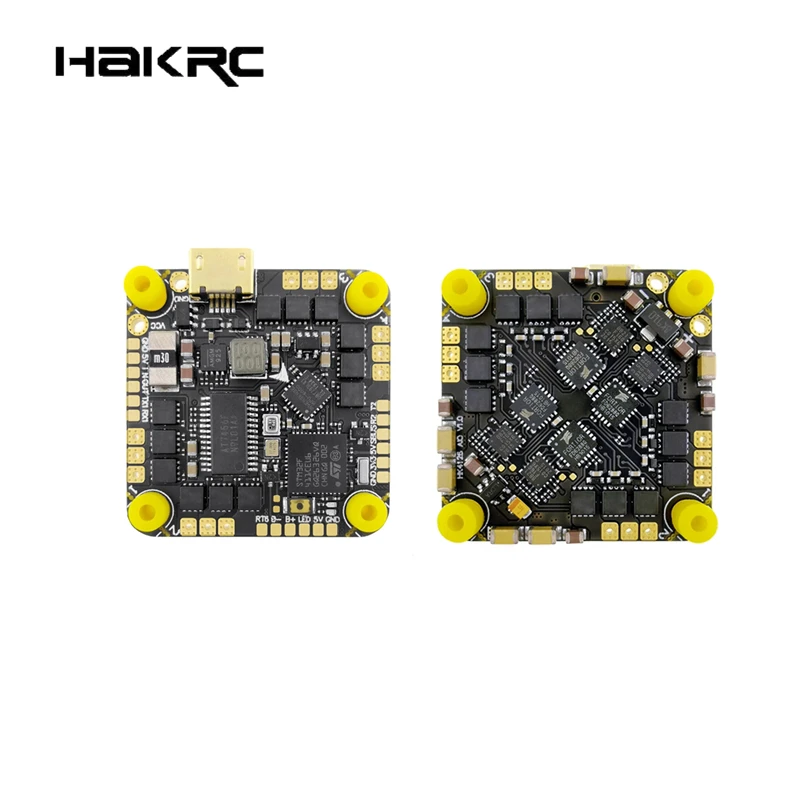

HAKRC / Feichao / JMT F4126 F411 20A AIO
MCU:F411
Gyro:MPU6000
Barometer:BMP280
OSD:AT7456E
Power :2S-5S
3.3V BEC:+
5V BEC:+
Current Sensor:+
ESC:4x20A
UART Rx:2
UART Tx:2
Buzzer pad:+
LED pad:+
USB:Micro USB
Size:31x31mm
Mount Holes:25.5x26.5mm
Weight:7g

Brand: HAKRC

Item Name: HAKRC F411 20A AIO

Mounting Hole: 26mm

Weight: 7g

Size: 31*31mm


Feature:

1. The PCB uses high-end 8 layers of 2oZ thick copper, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance MOS, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance


Flight Controller:

CPU: STM32F411CEU6
IMU: MPU6000
OSD: AT7456E
Barometer: BMP280
LED: Suppotr programmabled such as WS2812
Current meter: Yes
Firmware: betaflight_4.1.1_MATEKF411
Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2


ESC:
Firmware: BLHELI_ S ( (G- H-30))

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600
Input:2S-5S Lipo
Con. Current:20A
Peak Current:25A


Package Included:

1* HAKRC F411 20A AIO




Share

Prices for HAKRC / Feichao / JMT F4126 F411 20A AIO in stores

Deals found: 23 (Banggood1)

StoreStock levelLot priceShipping costCoupon / promocodePcs./lot1pc price
BanggoodOut of stock$601$60
