iFlight SucceX-E 45A Slick ESC

The SucceX-E 45A Slick 2-6S ESC is specially designed for FPV racing frames with slim arms like Dove, Dove Lite, Archer. Less weight and less surface for to be more aerodynamic than your opponents. The STM32F051 is combined with a high-performance 3in1 driver to lower the signal delay from throttle to the receiver.

Top Features:

- 6 layers double-sided PCB board

- 3oz 1.4mm thick power board

- TDK MLCC Low ESR ceramic capacitors

- Top grade NTMFS5C430L MOSFET

Specification:

• MCU: STM32F051
• Up tp 48kHz PWM frequency
• Capacitance: 470μF/50V
• Current Sensor: Yes
• Input: 2-6S LIPO
• RGB LED: Yes

• Constant: 45A / Burst: 55A
• BEC: No

• Supports up to Dshot150/300/600, Dshot600, Proshot, Oneshot, Multishot
• Target: iFlight-BL32-PRO

• Weight:3.3g without wires

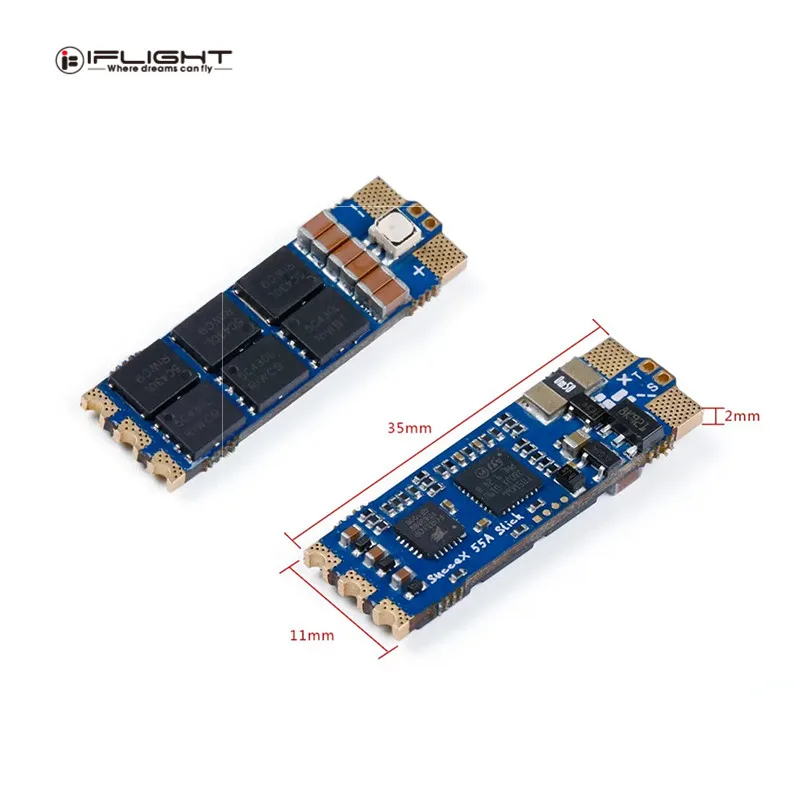

• Dimensions: 34*10*5mm
• BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file


RECOMMENDATION:

- No additional capacitor needed up to 5S!

- But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Package Includes:

- SucceX-E 45A Slick ESC *1pcs

- 50V 470uf capacitor * 1pcs

- Power cables & ESC signal wires *1set
