SunnySky X2820 III 570KV

SUNNYSKY X2820 Ⅲ 570KV/860KV/1000KV/1250KV Brushless Motor for Fixed-Wing 3D RC Drone Helicopter Airplane Parts Accessories

Features:
1.N48UH Magnets, 0.2mm Air gap, Coil with high copper space factor, Ultimate power.
2.Original NSK bearing,Low noise and friction factor, more stable and smooth.
3.The new type of propeller base is designed with more stable performance andmore convenient disassembly.
4.Around the stator end cover is hollowed design, and the heat dissipation area is increased, so the heat dissipation is better.
5.Hidden motor shaft design is adopted to protect motor shaft more effectively.

Description:
1.This is a brushless motor for Fixed - Wing 3D RC drone parts accessories.
2.Anti-slip: Overlapping curve to increase friction force and prevent propellers from slipping.
3.Excellent workmanship quality guarantees power saving and high efficiency,bring you stimulated flight.

Specifications:
Brand name: SUNNYSKY
Model:X2820 Ⅲ
Item name: Brushless Motor
KV:570KV/860KV/1000KV/1250KV(optional)
Color:Blue

570KV
Stator Diameter:28mm
Stator thickness:20mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:0.83A/10V
Moter Resistance:53mΩ
Max Continuous Current:53A/30s
Max Continuous Power:1325W
Rotor diameter:35mm
Length of motor (excluding shaft length):42mm
Shaft diameter:5mm
Motor Size:35mm/1.37in x 61mm/2.38in
Max Lipo Cell:6S
Recommended ESC:50-60A
Recommended Prop(inch):EOLO12*6 EOLO13*7
Applicable weight of Aerobatic machine:1400g-2000g(6S EOLO12x6.5/EOLO13x7)
Applicable weight of 3D machine:1100g-1500g(6S EOLO12x6.5/EOLO13x7)
Weight:146g/pcs

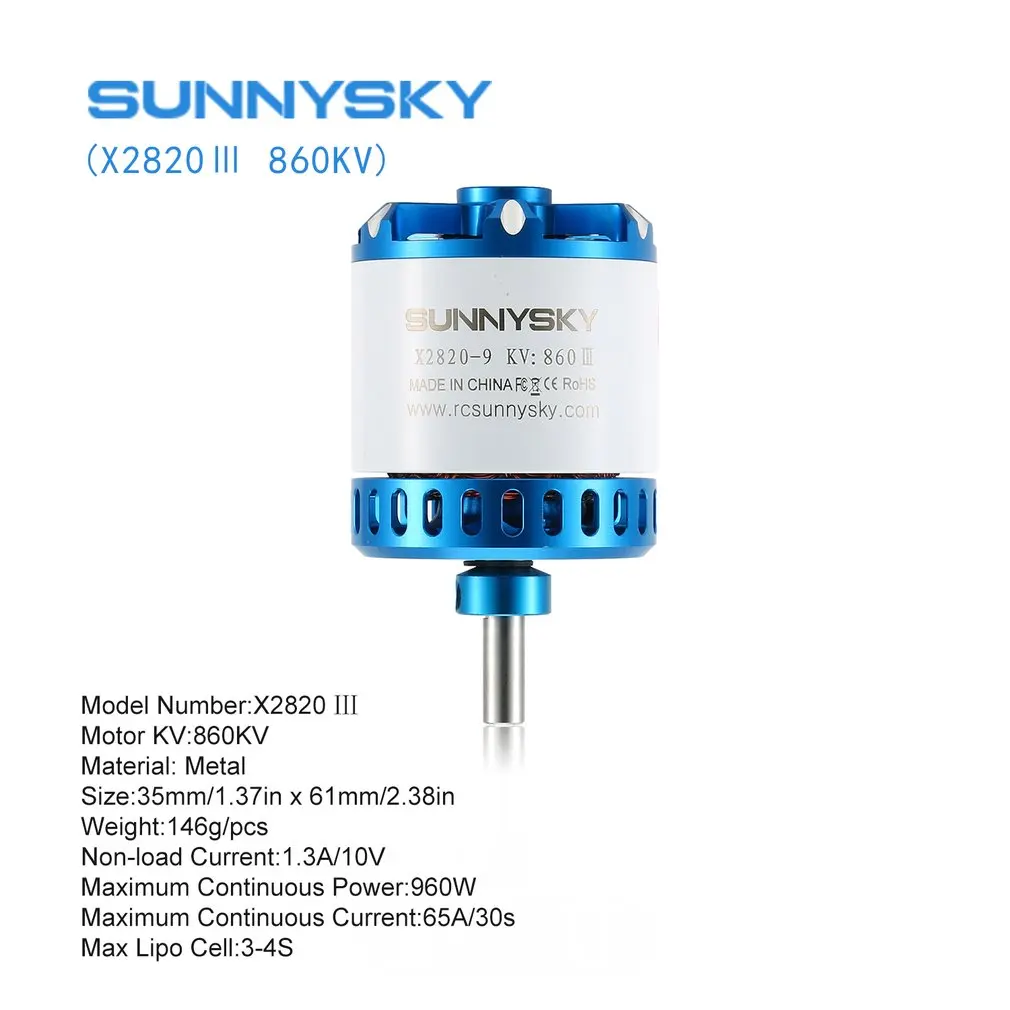

860KV
Stator Diameter:28mm
Stator thickness:20mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:1.3A/10V
Moter Resistance:25.8mΩ
Max Continuous Current:65A/30s
Max Continuous Power: 960W
Rotor diameter:35mm
Length of motor (excluding shaft length):42mm
Shaft diameter:5mm
Motor Size:35mm/1.37in x 61mm/2.38in
Max Lipo Cell:3-4S
Recommended ESC:50-60A
Recommended Prop(inch): APC13*6.5/APC13*8/APC12*6/APC12*8
Applicable weight of Aerobatic machine: 1400g-2000g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
Applicable weight of 3D machine:1100g-1500g(4S APC12*6\APC12*8\ APC13*6.5\APC13*8)
Weight:146g/pcs

1000KV
Stator Diameter:28mm
Stator thickness:20mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:1.7A/10V
Moter Resistance:18.5mΩ
Max Continuous Current:70A/1min
Max Continuous Power: 1036W
Rotor diameter:35mm
Length of motor (excluding shaft length):42mm
Shaft diameter:5mm
Motor Size:35mm/1.37in x 61mm/2.38in
Max Lipo Cell:3-4S
Recommended ESC:60-80A
Recommended Prop(inch):4S(APC11*5.5\APC11*8) 3S(APC12*6\13*6.5)
Applicable weight of Aerobatic machine: 1400g-1900g (3S APC13*6.5\APC12*6\APC12*8) (4S APC11*5.5\APC11*7\APC11*8)
Applicable weight of 3D machine:1100g-1500g (3S APC13*6.5\APC13*8)

Weight:146g/pcs

1250KV
Stator Diameter:28mm
Stator thickness:20mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:2.5A/10V
Moter Resistance:13.1mΩ
Max Continuous Current:79A/30s
Max Continuous Power: 1172W
Rotor diameter:35mm
Length of motor (excluding shaft length):42mm
Shaft diameter:5mm
Motor Size:35mm/1.37in x 61mm/2.38in
Max Lipo Cell:3-4S
Recommended ESC:50-60A
Recommended Prop(inch):EOLO12*6.5 APC12*6 APC1050 APC9060 APC11*5.5 APC11*8
Applicable weight of Aerobatic machine:1600g(3S APC11x5.5/11x7/11x8) (4S APC1050/APC9060)
Applicable weight of 3D machine:1200g(3S EOLO12x6.5/APC11x5.5/APC12x6)
Applicable weight of sailplane machine:1800g 3S APC11x5.5
Weight:146g/pcs

Package information:
Package Size:90x55x43mm/3.51x2.15x1.68in
Package weight:193g/6.76oz
Gift box package

Package included:(optional)

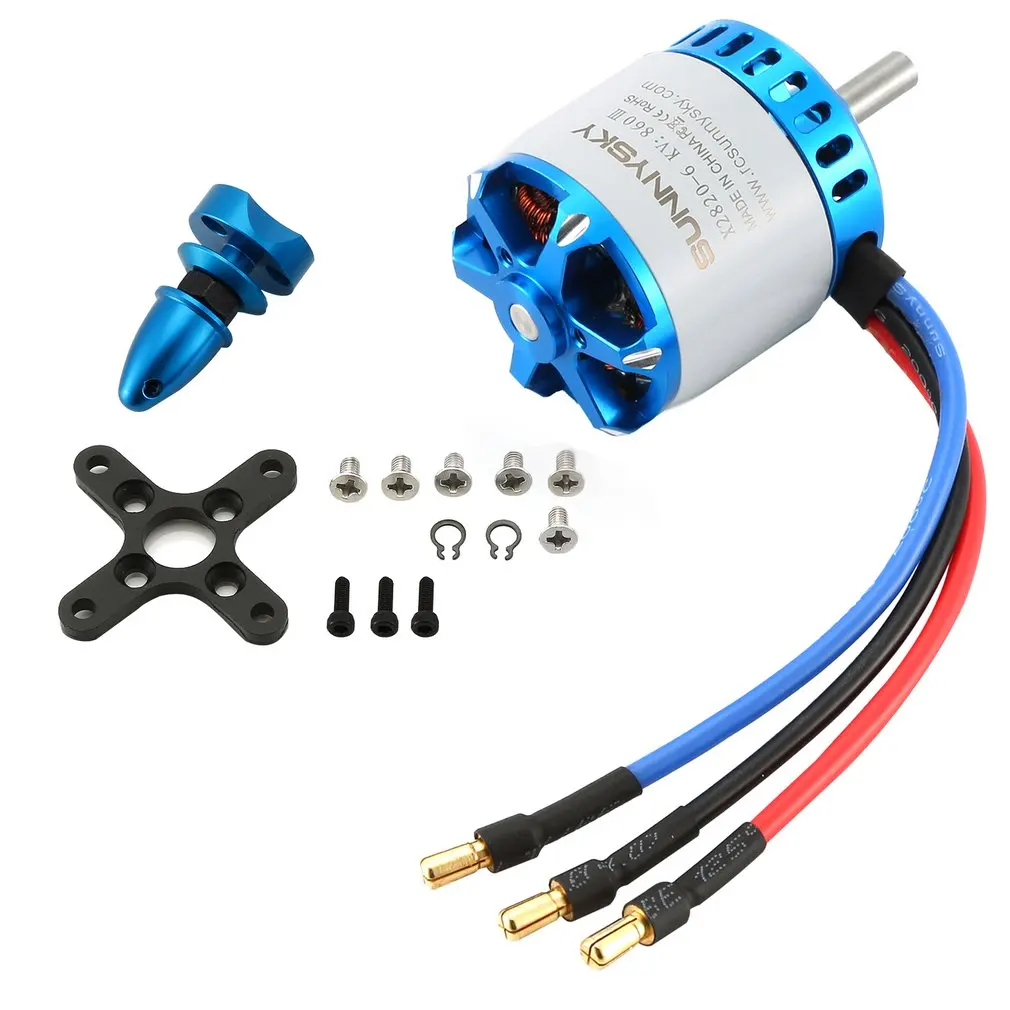

1 x Brushless motor
1 x Accessories set

Note:
Please allow 1-3mm error due to manual measurement, make sure you do not mind before you bid.
