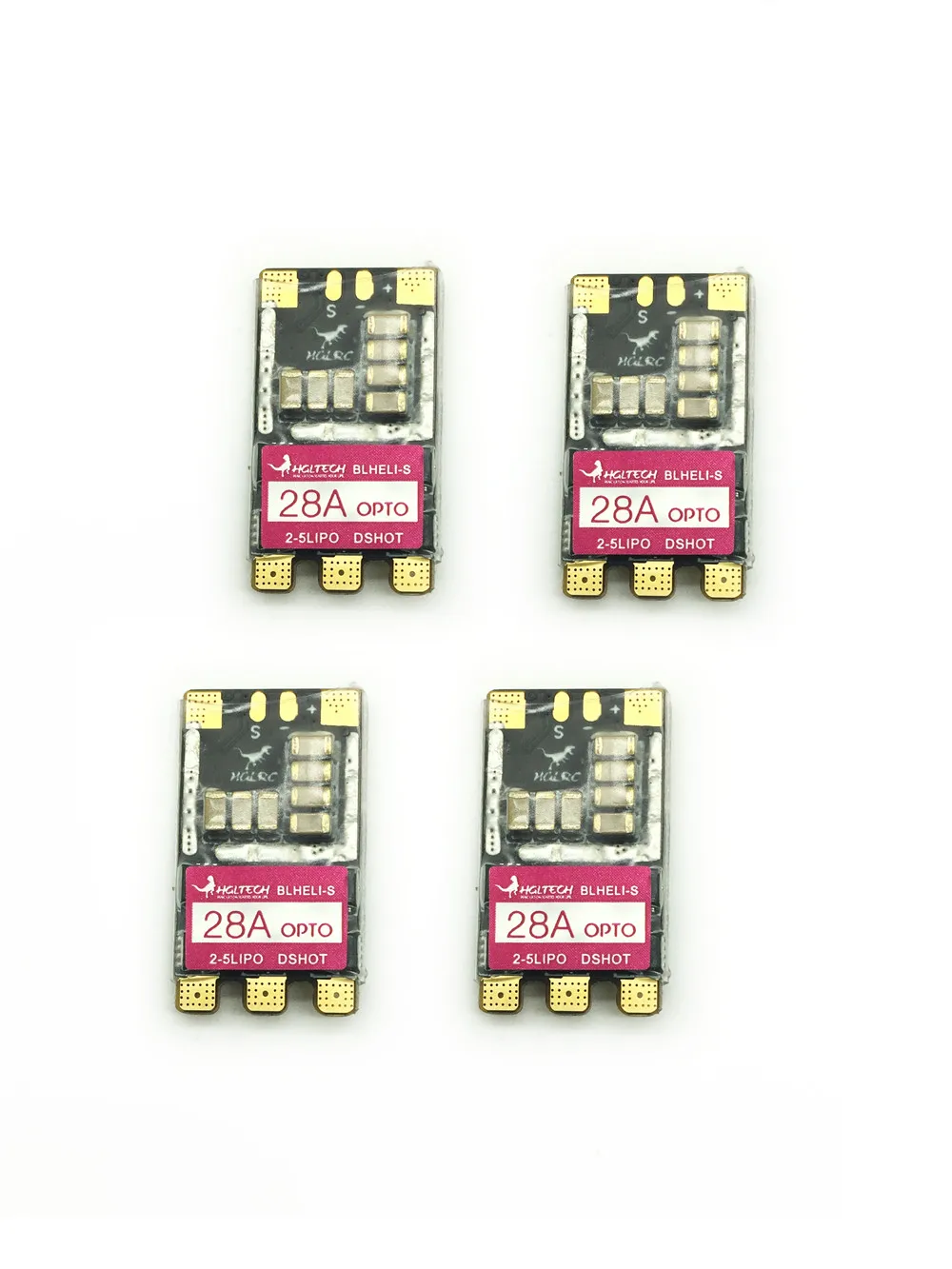

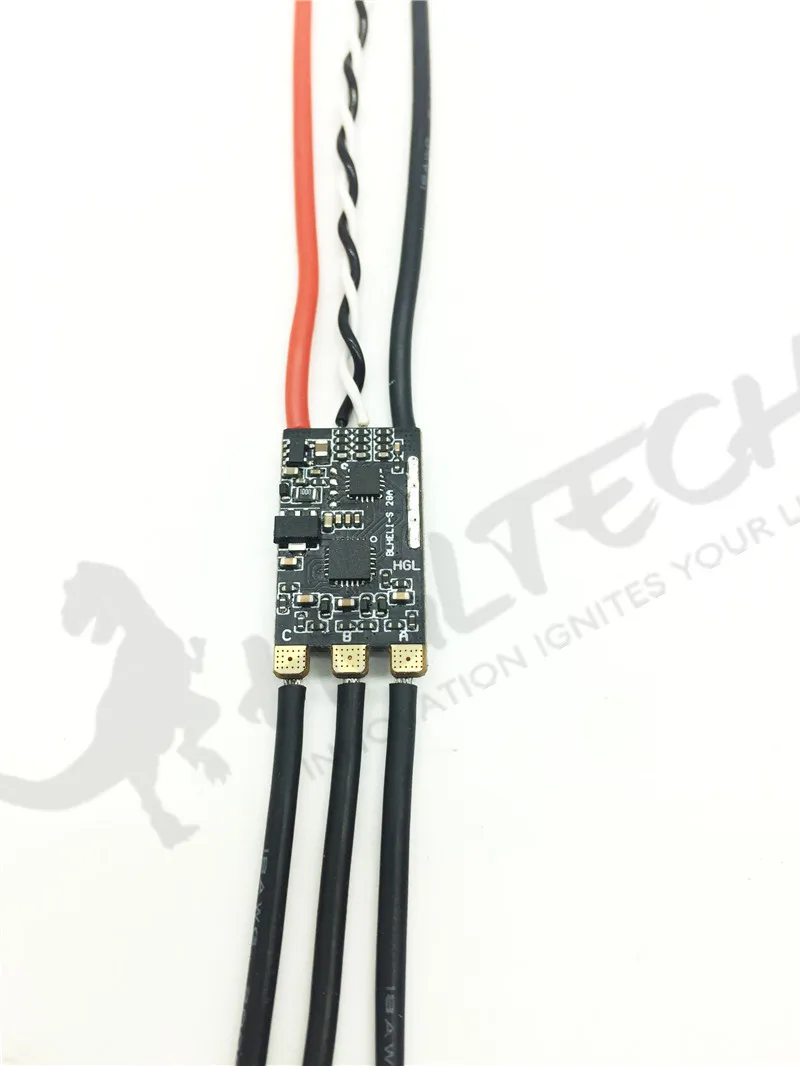

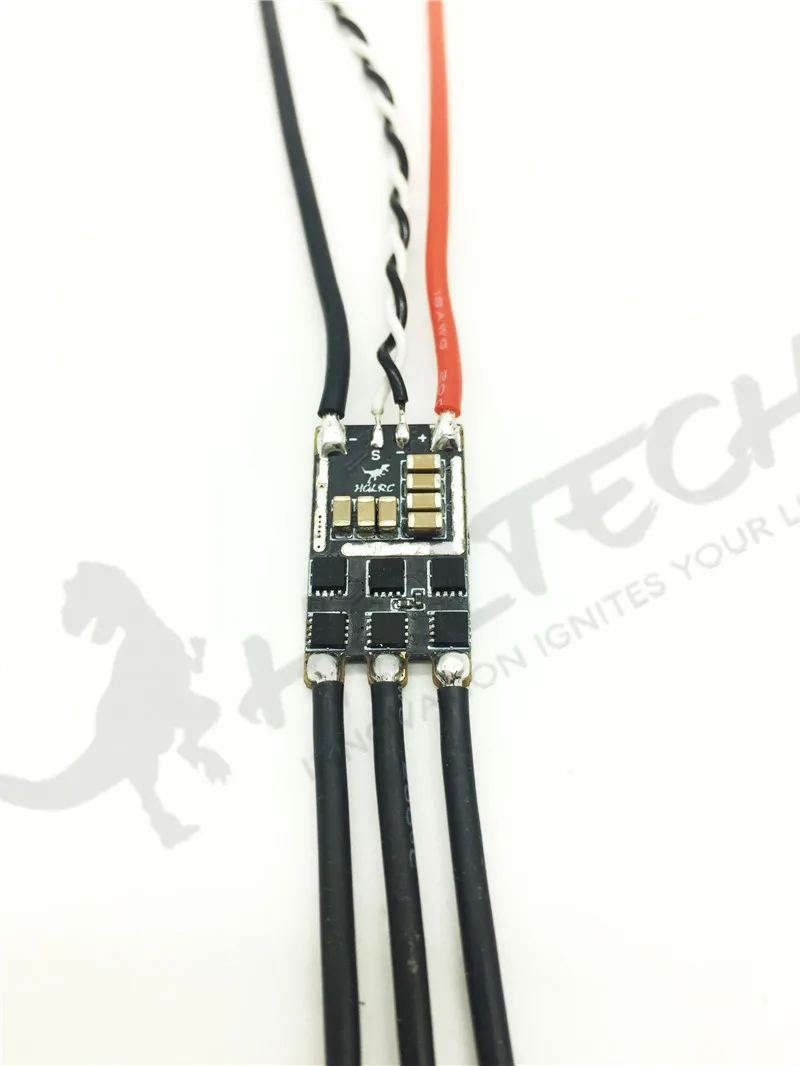

HGLRC BS28A BLHeli-S

Shipment List:

Motor wire: 18AWG*3 & nbsp;

Power cord: 18AWG*2 (one red and one black)

Heat shrinkable sleeve * 1

Signal line * 1



Technical parameters:

Input voltage: 2-5s Lipo/2-5s high voltage Lipo



BEC Output: None



Nominal operating current: 28A (maximum current: 40A 10 seconds)



Size: 26 * 14.5



Weight: 2.6g, no line



Firmware: BLHELI_S 16.5 supports DSHOT600/300/150/Oneshot 125/42, MultiShot Damped mode, positive and negative



Processor: SILABS EFM8BB2 48MHZ



MOS transistors: ALL N FET, Toshiba COMPANY



Copper foil thickness :3OZ*4 12OZ





Item name: HGLRC BS28A 2-5S ESC BLHeli_S(DSHOT)

Input voltage: 2-5S Lipo

work current:28A (MAX 40A,10s)

BEC: NO

Size(mm)L*W*H: 26 *14.5

mm

MOS:ALL N FET,Toshiba COMPANY



Copper:3OZ*4 12OZ



Type: BLheli_S & Dshot600/Dshot300/Dshot150

Weight: 2.6g

Feature: Silabs EFM8BB21



Features:

BLHeli_S does Damped Light only

Firmware upgradable via signal wire

Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)

Supports DShot600, DShot300 Dshot150

High-current burst rating

High-Resolution Throttle steps

BLHeli_S ESC with Hardware generated PWM synchronous to MCU yields ultra-quiet motor performance.

Utilizes high-performance EFM8BB21 50MHz MCU
