Flight controllers
HGLRC XJB F313 + 4in1 BS13A
Multirotors → FPV Racing drones → Flight controllers → F3 FCs → HGLRC XJB F313 + 4in1 BS13A
Product Description:
HGLRC XJB F313 DSHOT F3 Flight Control 4 in 1 BS13A ESC for RC Micro Drones

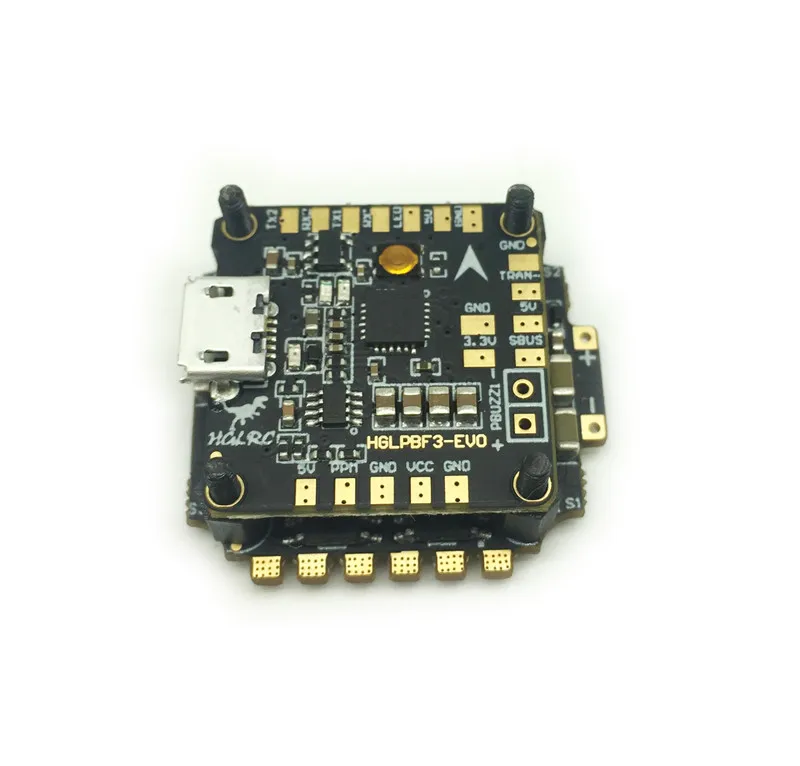

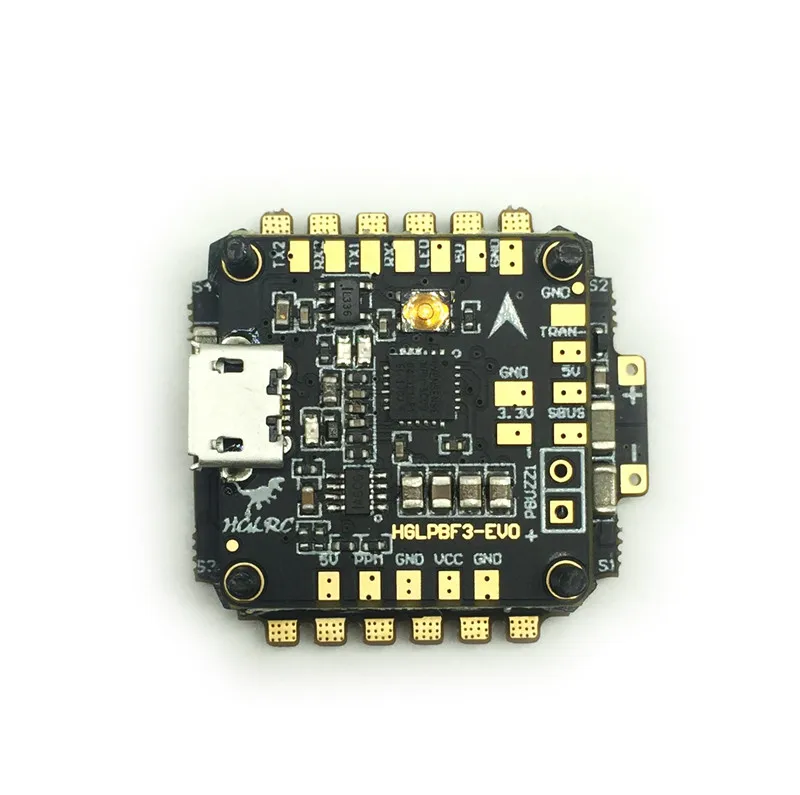

HGLRC PBF3 EVO(DSHOT)
With MPU6000 PB f3 evo ; PBF3 EVO add 5V/3A BEC PDB .（this version is 6DOF，barometer and electric GPS）
1.for micro RC Drones，compitible with 280mm inch frame，especially 130mm frame；
2.this board support all off fuction，weight 2.3g，size 23*23MM，fixed hole20MM（M2 hole）；
3.for quadcopter，built-in RC/LC filter，support CF,BF firmware（PIKOBLX）；
4.use STM32F3CCT6 SCM 256K flash，MPU6000 sensor SPI interface connect，more quickly caculate speed efficiency；
5.support 2-6S power imput；
6.built-in 5V 3A BEC；
7.support SBUS/PPM/DSMXand so on popular receiver；
8.buzzer/programmeLED/Voltage monitoring/BLHELI ESC programme；
HGLRC BS13A4IN1 2-3S ESC BLHeli_S(DSHOT)
Technical Parameters：imput voltage :2-3S LiPo
BEC imput: no
standard working current :13A*4
size :27*25
30*27mm（total size）
fixed hole : 20*20 M2
firmware: BLHELI_S 16.5 support DSHOT600/300/150/Oneshot125/42,MultiShotDamped mode
processor：SILABS EFM8BB2 48MHZ
MOS tube :TOP QUALITY MOSFET
